Azure Virtual Network Service Endpoints provide a way to securely connect your virtual network directly to supported Azure platform-as-a-service (PaaS) resources. They work by extending the identity of your virtual network and its subnets into the Azure service. Traffic between your virtual network and the service then flows over the secure Microsoft backbone network, bypassing the public internet. This keeps the traffic private and improves security.
A key benefit is the ability to lock down Azure PaaS resources. Once a service endpoint is enabled, you can configure the PaaS service (like Azure Storage or Azure SQL Database) to only accept connections from your specific virtual network or subnet. This removes the need for those resources to have public IP addresses accessible from the internet. Service endpoints also ensure optimal routing, as the traffic follows the most direct path within Azure's infrastructure.
Before enabling service endpoints, you must analyze which Azure services support them and plan your virtual network topology. You enable service endpoints at the subnet level. In the Azure portal, you select a subnet and add the service endpoint for the specific resource provider, such as Microsoft.Storage. It's crucial to then configure your Network Security Groups to restrict outbound traffic, allowing only the necessary service endpoint traffic to leave the subnet.
Finally, you must configure the Azure PaaS resource itself to complete the secure connection. This involves adding a virtual network rule or firewall rule on the PaaS service (like a storage account or SQL server) that explicitly grants access only from the IP address range of your virtual network or the specific subnet where the endpoint is enabled. This two-step process—enabling the endpoint on the subnet and then configuring the service to accept it—ensures all traffic remains on the private Azure backbone.

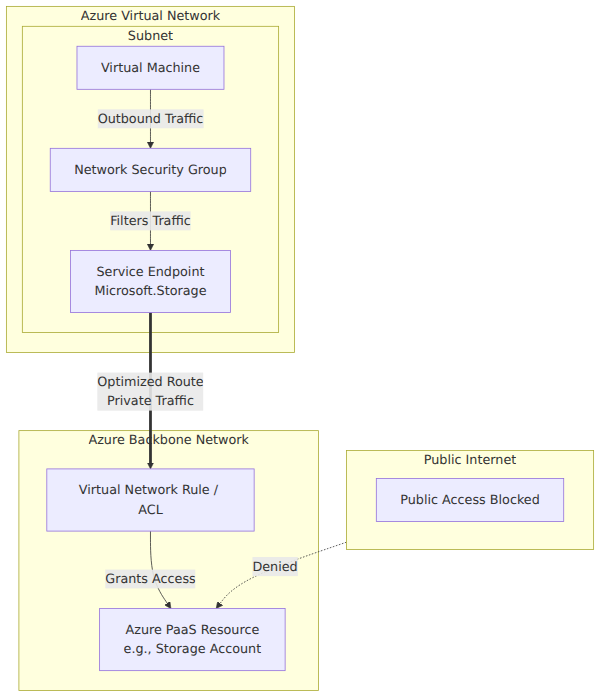

A system architecture diagram showing a virtual machine in a subnet with a service endpoint and NSG routing traffic over the Azure backbone to a locked-down PaaS resource, bypassing the public internet.
Are you a guardian of your domain? Lean how to leverage your aptitude in security to protect Microsoft Azure technologies, with a goal of earning the Microsoft Certified: Azure Security Engineer Associate certification!
Prepare and test your skills
Prepare and test your skills
Azure Virtual Network Service Endpoints securely connect your virtual network directly to supported Azure platform-as-a-service (PaaS) resources by extending the virtual network's identity into the service. Their primary benefit is the ability to lock down Azure PaaS resources so they only accept connections from your specific virtual network, removing the need for public internet access and keeping traffic on the private Azure backbone.
First, you enable the service endpoint at the subnet level for a specific resource provider like Microsoft.Storage. Second, you must configure the Azure PaaS resource itself, such as a storage account or SQL server, by adding a virtual network rule that grants access only from your virtual network's IP address range.
Enabling service endpoints ensures traffic between your virtual network and the Azure service flows over the secure Microsoft backbone network, bypassing the public internet. This keeps the traffic private and provides optimal routing by following the most direct path within Azure's infrastructure.
