Associate Data Practitioner

Implementing Eventarc Triggers for Workflow Automation

Eventarc is a Google Cloud service that lets you build event-driven pipelines by routing events from sources like Cloud Storage or Pub/Sub to destinations such as Cloud Run, Cloud Functions, Dataflow, Dataform, and Cloud Composer. A trigger listens for a specific event and automatically invokes the target service when that event occurs. This reduces manual work and keeps data processing consistent across services.

Configuring IAM Roles for Eventarc

Before Eventarc can call your services, you must set up the correct Identity and Access Management (IAM) roles. The Compute Engine service account needs the Cloud Run Invoker role (roles/run.invoker) so that Cloud Run services can be invoked. You also need the Eventarc Event Receiver role (roles/eventarc.eventReceiver) on the same service account to allow Eventarc to receive events from providers. For Cloud Storage direct events, you may optionally assign the Pub/Sub Publisher role to the Cloud Storage service agent. These roles ensure that the trigger can authenticate and deliver events without errors.

Setting Up Event Sources and Destinations

Before creating a trigger, you need to prepare the event source and the destination service. For example, create a Cloud Storage bucket in the same project and region as your Eventarc trigger. You can also use existing Pub/Sub topics or enable GKE destinations if you plan to send events to a GKE cluster. Keeping sources and targets in compatible regions prevents errors when you deploy the trigger.

Creating a Trigger

When you create a trigger in the Cloud Console or with gcloud, you specify the event provider, event type, and destination. For a Cloud Run service, select “Add trigger” and then choose:

• Trigger type: Google Sources or Third-party
• Event provider: e.g., Cloud Storage or Pub/Sub
• Event type: e.g., google.cloud.storage.object.v1.finalized
• Destination: the service to invoke when the event fires

Eventarc then injects the event into your workflow, automatically calling the target service.

Routing Events to Different Services

Using Eventarc, you can orchestrate complex workflows across GCP data services. Route events to Dataform for SQL-based transformations, to Dataflow for real-time stream processing, to Cloud Functions for lightweight business logic, and to Cloud Composer for orchestrating multi-step pipelines. This integration ensures each tool runs at the right time, triggered by events, to build a seamless automated data pipeline.

Configure Security and Reliability for Event-Driven Workflows

IAM Policies for Secure Execution

To keep your event-driven architecture secure, you must configure IAM policies that authorize communication between services. The Compute Engine service account requires the Cloud Run Invoker role to authenticate requests sent to Cloud Run services. Without this role, triggers will fail, and logs will show that the request was not authenticated. You also need to grant the Eventarc Event Receiver role to the default service account so that the trigger can accept events from various providers.

Permissions for Service Agents

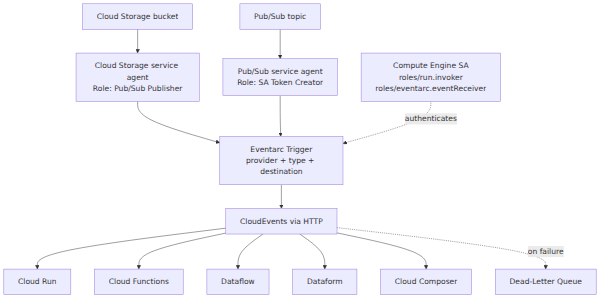

Beyond the main service account, specific service agents need permissions to deliver messages between Google Cloud products. For example, the Cloud Storage service agent requires the Pub/Sub Publisher role to broadcast notifications when objects are created or modified. The Pub/Sub service agent needs the Service Account Token Creator role to support authenticated push requests. These configurations ensure that:

• Cloud Storage can publish events to the pipeline.
• Pub/Sub can securely generate tokens for authentication.
• The architecture maintains strict access controls across all components.

Reliable Trigger Configuration

When you create an Eventarc trigger, precise configuration is necessary to connect the event source to the destination reliably. You must select the correct Trigger type (e.g., “Google Sources” for internal services or “Third-party” for external integrations). Key steps include:

• Ensuring the Cloud Storage bucket is in the same region as the Eventarc trigger.
• Selecting the exact event type, such as google.cloud.storage.object.v1.finalized.
• Verifying that the destination service is deployed and ready to handle incoming traffic.

Handling Failures with Dead-Letter Queues

To improve reliability, you can implement dead-letter queues to capture, retain, and analyze failed event deliveries. When an event cannot be delivered to a Cloud Run or Cloud Functions service, it is sent to a dead-letter queue. This allows you to inspect the failure, retry processing, or debug the issue without losing the event data. Dead-letter queues are a key mechanism for maintaining pipeline reliability.

Understand the Integration and Usage of Eventarc with Google Cloud Services

Eventarc Triggers Overview

Eventarc is a Google Cloud service that provides event routing for event-driven pipelines. A trigger declares an interest in selected events, which can come from various Google Cloud sources. Events are delivered in the CloudEvents format via HTTP requests, and the Workflow service converts them to JSON objects for seamless integration. Filters let you specify which event sources and target workflows to use, giving you precise control over event management.

Setting Up Eventarc Triggers

To create an Eventarc trigger, start by enabling the necessary APIs, such as Eventarc, Workflows, and Workflow Executions. You then set up a user-managed service account with the appropriate IAM roles so that Eventarc can handle events for target workflows. The trigger can be created using the Google Cloud Console or CLI commands, and you must specify the trigger type, event provider, and content type.

Integration with Google Cloud Services

Eventarc triggers seamlessly integrate with services like Cloud Functions and Cloud Run. This integration supports automated responses to events, such as changes in data storage or serverless function execution. Dataflow and Dataform also use Eventarc triggers for automated data processing workflows, which enhances automation and reduces manual intervention in tasks like data transformation and orchestration.

Impact on Workflow Efficiency and Cost Management

Using Eventarc triggers significantly improves workflow efficiency and cost management. By automating responses to specific events, you minimize latency and maximize resource utilization. The system eliminates the need for continuous human oversight, reducing costs associated with manual errors. This efficiency is especially valuable in large-scale data processing or application deployment projects, where even small improvements can have a big impact on time and budget.
