Associate Data Practitioner

Create and Manage Scheduled Queries

Orchestrate Complex Workflows with Cloud Composer

Cloud Composer is a fully managed workflow orchestration service built on Apache Airflow. It runs on a Google Kubernetes Engine (GKE) cluster, which manages the execution of workflows across hybrid and multi-cloud environments. Cloud Composer automatically provisions the necessary Google Cloud services, including an Airflow web server for the user interface, an Airflow database to store workflow metadata, and a Cloud Storage bucket that holds workflows, logs, and data.

Workflows in Cloud Composer are defined as Directed Acyclic Graphs (DAGs). A DAG represents a collection of tasks with specific dependencies. Users upload Python source files to the environment’s Cloud Storage bucket, and the Airflow scheduler parses these files to determine the sequence of tasks and when they should run. This structure allows the orchestration of complex processes, such as sequencing BigQuery jobs, so that data is processed in the correct order.

Effective orchestration relies on understanding specific Airflow scheduling concepts that go beyond simple clock-based triggers. The logical date represents the time period a DAG run is meant to process, which may differ from the actual run date when the execution occurs. A schedule interval defines how frequently a DAG runs, while the start date determines when the scheduling begins. Mechanisms like catchup and backfill allow the system to execute runs for past dates to ensure data consistency.

Cloud Composer provides multiple interfaces to manage and monitor data pipelines. Users can use the Airflow web interface to view logs, inspect task details, and manually trigger or pause DAGs. The service also integrates with Cloud Monitoring to track environment metrics and health. Access control is managed via IAM roles, ensuring that only authorized users can modify environments or view sensitive workflow data.

Implement Scheduling with Cloud Scheduler

Cloud Scheduler is a fully managed service that automates the running of jobs at specified times. It is ideal for repetitive tasks such as backups and data transfers. To set up Cloud Scheduler, start by creating a Pub/Sub topic, which acts as the target for your scheduling jobs. The tool uses cron syntax to specify schedules, and you must have the appropriate IAM roles, such as Cloud Scheduler Admin, to allow task execution and API enablement.

Once the Pub/Sub topic is set and roles are assigned, create and manage cron jobs using the command line. This schedules Pub/Sub messages that contain job details, which can trigger actions in services like BigQuery. The cron syntax defines the job frequency, such as hourly, daily, or weekly.

After deploying your scheduling configurations, monitoring and ensuring task success is crucial. You can run jobs immediately if necessary and verify outcomes by checking Pub/Sub message receipts. Retry policies can be configured for task failures to maintain smooth operation without manual intervention. This enhances the reliability of your automated data processing tasks.

Configure and Optimize BigQuery Scheduled Queries

BigQuery scheduled queries let you automate recurring SQL tasks by running them on a defined timetable. You can create these jobs through the BigQuery Data Transfer Service or directly in the BigQuery web UI. Schedules use cron expressions or simple intervals, and you specify the SQL text and the destination table for results. This automation reduces manual effort and ensures that data pipelines stay up to date.

In Google Cloud, you also have the option to orchestrate BigQuery queries with Cloud Scheduler or Cloud Composer. Cloud Scheduler triggers jobs by sending HTTP or Pub/Sub messages at set times, while Cloud Composer uses Apache Airflow to define complex workflows. Both services call the BigQuery jobs.insert API to launch your queries. This flexibility helps you integrate other tasks or conditional logic around your scheduled runs.

To optimize query performance, apply best practices that cut costs and speed up processing. Partitioning divides tables by date or integer ranges to scan only needed data. Clustering groups rows on frequent filter columns for faster lookups. A dry run estimates resource usage and catches errors before actual execution. Using batch priority lowers costs when you can tolerate delays. These practices help you manage resources and control expenses effectively.

Monitoring and error handling are key to reliable scheduling. You can view transfer histories and status in the BigQuery UI under transfers, and send logs to Cloud Logging. Configure alerts in Cloud Monitoring to get notified of failed runs, and enable automatic retries in your transfer settings. Proactive monitoring ensures you spot problems early and keep your data pipelines healthy.

---

Monitor Dataflow Pipeline Progress

Navigate and Interpret the Dataflow Job Lifecycle

The Dataflow Job UI is your main tool for watching and managing data processing jobs in Google Cloud Dataflow. This service runs both streaming and batch data pipelines. To start a job, you first enable the Dataflow API in your project and set up an authentication profile. Then, you use the creation task to configure the pipeline, defining important parameters like the region and project ID, which tell Dataflow where and how to run your job.

Once the job is running, the monitoring interface shows you its progress through different stages. You can see key performance metrics and visualizations that help you understand how the job is performing. This allows you to quickly spot problems, like a stage that is stuck or running slowly, and take action to fix or optimize the workflow.

Troubleshoot Errors using Logs and Diagnostics

When a pipeline has an issue, you start on the Dataflow Jobs page in the Google Cloud console. This page lists all your jobs and shows their status, such as Running, Succeeded, or Failed. If a job has failed, clicking its name takes you to the Job details page for deeper investigation.

The Job details page provides several tools. The Job graph shows your pipeline's steps visually, and Job metrics give performance statistics. To find the root cause of a failure, you use the logs and the Diagnostics tab. Job logs contain messages from the Dataflow service itself, while Worker logs come from the individual workers processing your data. The Diagnostics tab is especially useful because it lists errors along a timeline and often suggests possible fixes.

Understand Dataflow Job Metrics and Stages

The Dataflow job UI displays important metrics that tell you about your pipeline's health and performance. A key metric is data freshness, which shows how current the data is within each processing stage. The UI displays this with a line graph that highlights anomalies, like potential slowness, and a bar graph that shows the freshness for each stage in order.

You can click on any stage to open the Stage Info panel. This shows detailed information like the stage's status, system lag, and data watermark, which is an estimate of when input data is fully processed. For batch jobs, the Stage workflow view shows a graph of all stages and highlights the critical path, which is the sequence of stages that determines the total job runtime.

For batch jobs, the Worker progress view lets you look inside individual workers. It shows each work item assigned to a worker and includes a sparkline for CPU utilization. This helps you spot if workers are underused or if there is a bottleneck. This worker-level detail is not available for streaming jobs.

---

Review and Analyze Logs in Cloud Logging and Cloud Monitoring

Utilize Cloud Logging for Effective Issue Detection

Cloud Logging is a service on Google Cloud Platform that helps you understand what is happening in your cloud environment. It works together with Cloud Monitoring to give you a complete picture of your operations, making it easier to detect issues, analyze performance, and maintain your infrastructure. When you set up services like Kubernetes clusters, these tools are typically enabled by default, so you can start gathering data right away.

These integrated tools allow for proactive issue detection through Service Level Objectives (SLOs) and Alerts. SLOs define expected performance levels, while Alerts automatically notify you when something goes wrong, so you do not have to constantly watch your logs. For example, Istio sidecar injection can collect application-level performance metrics that give you detailed insights into how your applications are running.

Sometimes you may encounter issues with the logs themselves, such as not seeing expected entries or finding incorrect information. When troubleshooting, verify that sharing and permissions are correctly configured, search for logs at the organization level in the Logs Explorer, and select the correct Audited Resource type. Other steps include expanding the time range of your queries, verifying the correct log name and organization ID, and being aware that log data might be delayed.

Implement Log-based Metrics and Alerting Strategies

Cloud Logging captures detailed text records of events, while Cloud Monitoring focuses on numerical performance data and visualization. These services work together to give you full visibility into the health and performance of your data pipelines, allowing you to diagnose issues by connecting specific log entries with broader system trends.

Log-based metrics bridge the gap between text logs and numerical analysis by translating specific log entries into quantifiable time-series data. For instance, you can count how often a specific error occurs or measure latency recorded in a log entry. Creating these metrics lets you track patterns over time that would not be obvious when reading individual log files.

Once you have established metrics, you can use alerting policies to maintain pipeline reliability. These policies monitor your metrics and trigger notifications when values cross a specific threshold or when anomalies are detected. An effective alerting strategy includes defining metric thresholds for acceptable performance, configuring notification channels to send alerts via email or SMS, and setting up alert escalation to ensure unacknowledged issues reach the correct personnel. You can visualize these trends using the Metrics Explorer and custom dashboards within the Google Cloud console.

Understand Log Types and Their Purposes

Cloud Logging is a real-time log-management system that offers storage, search, analysis, and monitoring capabilities. It collects log data from various sources including Google Cloud resources, on-premise setups, and other cloud providers. You can use the Ops Agent or client libraries to send logs to Cloud Logging, supporting applications like web servers.

Logs can be classified into different types based on their purpose. Access logs track interactions users or systems have with applications, detailing who requested what resource and when. Error logs capture error messages and details of failures within applications, which are crucial for troubleshooting. Application logs record custom information from applications, often used to report on application-specific events and metrics.

Log-based metrics enable you to count occurrences of specific messages, observe trends like latency values, and create charts to visualize numerical data extracted from logs. Cloud Monitoring automatically collects performance metrics across Google Cloud services, helping you assess the health and performance of applications using tools like synthetic monitors and visual dashboards. Distributed tracing and alerting mechanisms provide further insights into application behavior and potential issues affecting your system.

---

Select a Data Orchestration Solution

Choosing the Right Orchestration Service

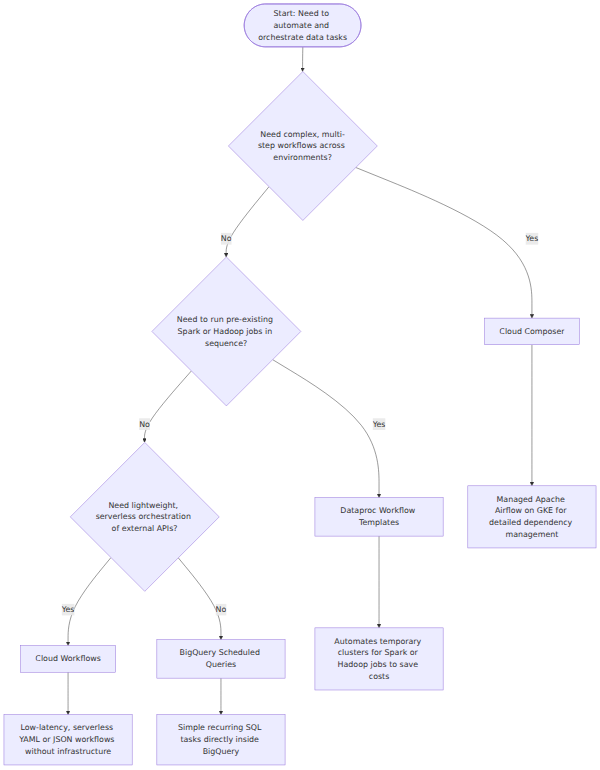

Choosing how to automate and orchestrate your data tasks depends on your specific business requirements and how much control your team needs:

• Cloud Composer fits complex, multi-step workflows that cross different cloud environments and require detailed dependency management.
• Scheduled queries fit simple, database-only pipelines that run on a regular timetable directly inside BigQuery.
• Dataproc Workflow Templates fit workloads that need to start up a temporary cluster, run Spark or Hadoop jobs, and shut down resources automatically to save costs.
• Cloud Workflows fits lightweight, low-latency applications that integrate serverless tasks or external APIs without the overhead of larger engines.

---

Identify Use Cases for Event-Driven Data Ingestion

Event-Driven Ingestion with Pub/Sub and BigQuery

Event-driven ingestion is ideal when data must be processed as soon as it is generated rather than waiting for a scheduled batch window. This real-time flow is crucial for business use cases such as monitoring live security threats, tracking user interactions on a website, or analyzing streaming sensor data from smart devices.

In this pipeline, Cloud Pub/Sub serves as the initial ingestion point, absorbing high-speed messages from multiple sources at once. The incoming data is immediately streamed into BigQuery, which allows analysts and automated dashboards to query the most current information without delay.

---

Use Eventarc Triggers in Event-Driven Pipelines

Routing Events with Eventarc

Eventarc allows you to build event-driven pipelines by routing signals from various Google Cloud resources to automated destinations. This decouples your systems, meaning that a change in one service can automatically trigger actions in other applications without them being directly linked.

When an event occurs—such as a file arriving in Cloud Storage or a log entry appearing in Cloud Logging—Eventarc catches the event and matches it to a trigger. This trigger then starts a workflow or a processing job in target services like Cloud Functions, Cloud Run, Dataflow, Dataform, or Cloud Composer, allowing your entire data platform to react instantly to environment changes.
