Prepare Windows Server as a Container Host
Installing Container Features
To use Windows Server as a host for containers, you must first install the necessary Windows features. This installation process is completed using PowerShell. The Containers feature provides the base components needed to run containers. If you need stronger isolation between workloads, you can also install the Hyper-V feature, which runs each container inside a lightweight virtual machine.
Deploying a Container Runtime
A container runtime is the engine that actually runs the containerized applications. On Windows Server, you typically install Docker or Moby as your runtime. You can download and install the runtime using PowerShell commands that retrieve the software from an online repository. Once installed, you must start the service and configure it to launch automatically when the server boots.
Integrating with Azure Container Registry
To securely store and retrieve your custom container images, you must integrate your host with Azure Container Registry (ACR). You begin by using the Azure command-line tool to log into your Azure account and create a registry instance. After the registry is created, you log your local Docker service into it. This connection provides the secure credentials Docker needs to push new images to the cloud or pull existing images down to the host.
Configuring Networking and Storage
For containers to function properly, you must configure how they connect to networks and store data. Networking configurations allow containers to communicate with each other and with external services safely. For applications that need to save data permanently, you must set up persistent storage solutions like Azure Files. This ensures that important data is not lost when a container stops or is deleted.
What WSL2 Does
The Windows Subsystem for Linux version 2 (WSL2) is a feature that lets Windows run Linux distributions directly without the overhead of a separate virtual machine. WSL2 uses a real Linux kernel, which makes it much faster than the older version and allows it to run Linux containers efficiently. This capability is useful because many modern applications are built specifically for Linux. WSL2 lets you support those workloads while maintaining your overall Windows management environment.
Enabling WSL and Upgrading Distributions
To run Linux containers, you must first enable the Windows Subsystem for Linux feature on your host. You can turn this feature on using the Windows Features menu or by running a PowerShell command. Once enabled, you install a Linux distribution, such as Ubuntu, from the Microsoft Store. After installation, you must upgrade the distribution from WSL1 to WSL2 using the command line to ensure you have the full kernel support required for containers.
Installing and Configuring a Container Runtime
With WSL2 running, the next step is to install a container runtime that can manage Linux containers. Common options include Docker or containerd, which can run directly inside the Linux environment. Docker Desktop can be installed on Windows and configured to integrate directly with WSL2 during its setup. When configured this way, the runtime shares the WSL2 kernel to keep resource usage low while letting you run Linux container commands from a Windows terminal.
Tuning Resource Allocation
Linux containers running under WSL2 need proper system resources to perform well, which you control using a configuration file named .wslconfig. This file is placed in your user folder and lets you set limits on CPU, memory, and disk space. If you allocate too little memory, your containers might crash, but allocating too much can slow down the Windows host. Each time you modify this file, you must restart WSL2 using the command line for the new resource limits to take effect.

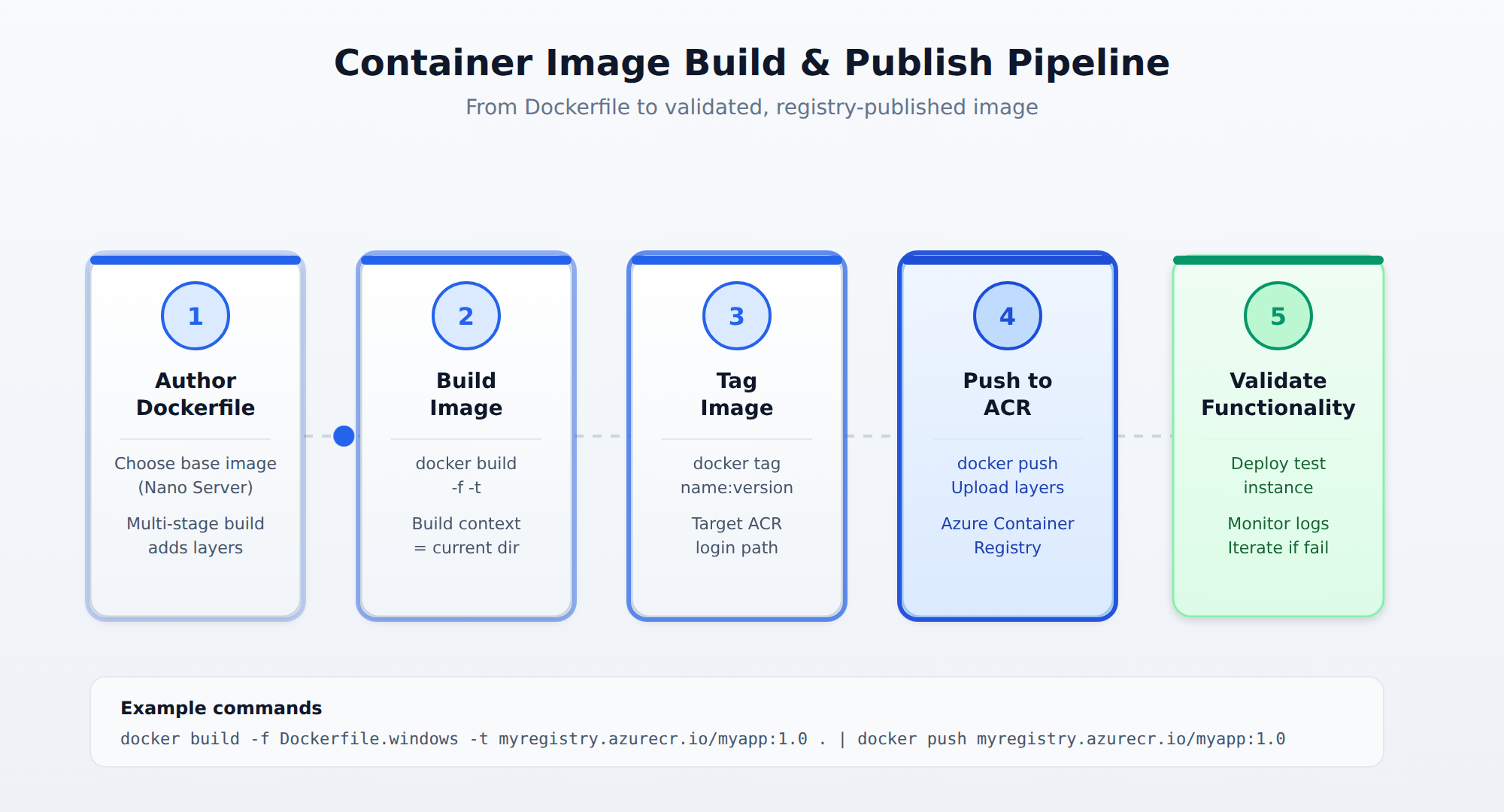

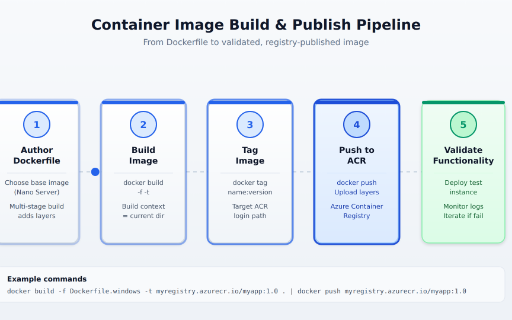

Create Windows Server Container Images
Authoring Dockerfile Directives
Creating a Windows Server container image begins with writing a Dockerfile, which is a script of instructions that tells the engine how to build the image. The first directive in this file chooses a lightweight base operating system layer, such as Windows Nano Server. Each instruction adds a new layer to the image, which means you should design them carefully to keep the final file size small. You can use multi-stage builds to compile your code in a temporary stage and then copy only the finished application into the final image.
Building the Container Image
After writing your Dockerfile, you run the build command to compile it into an actual image. You specify the Dockerfile location using a flag and give your new image a name and a version tag. The command also requires you to specify the build context, which is usually the current folder containing your application files. The engine processes each line of the file, packages the application, and stores the completed image on your local host.
Tagging and Publishing the Image
Before you can use your image in Azure, you must tag it with a version label and upload it to a repository. For Azure deployments, you will use Azure Container Registry as your central storage. You must first log into your Azure account and authenticate your local container runtime with your registry. Once authenticated, you push the image to the registry, which uploads the image layers so they are available to your cloud services.
Validating Image Functionality
After publishing your image, you should test it in a realistic deployment environment to ensure it functions as expected. You can deploy a single test instance of the container and monitor its logs to check for runtime errors. If the application fails or is missing dependencies, you modify your Dockerfile and run the build and push process again. This testing cycle ensures that your container runs reliably in hybrid environments where services span both on-premises and cloud networks.
Deploying in Azure
Once you validate that your container image works properly, it is ready for production deployment. You can deploy the image to various Azure hosting environments, such as Azure App Service or Azure Kubernetes Service (AKS). During creation of the Azure resource, you configure it to pull your image from your secure registry. The Azure service then automatically downloads the image layers and runs the container, making your application accessible to users.
Manage Windows Server Container Images
Evaluate Base Image Options
The base image is the core foundation that provides the operating system and tools your application needs to run. Microsoft hosts these official base images in the Microsoft Container Registry (MCR). When choosing a base image, you should avoid tags that point to specific minor versions because those images do not receive security updates. Instead, select tags that point to the latest stable release of your runtime, such as .NET, Java, or Python.
Implement Security Best Practices
Keeping container images secure requires continuous maintenance because new software vulnerabilities are discovered frequently. You must rebuild your custom images regularly using the latest base images to ensure they receive critical security patches. You should also enable vulnerability scanning to automatically find weaknesses in your registry and turn on content trust to verify that images have not been modified. Keeping your image layers simple and removing unnecessary files also reduces the total attack surface.
Utilize Azure Container Registry
Azure Container Registry acts as your central hub for managing the entire container lifecycle from creation to retirement. The registry offers replication policies that automatically copy your images to different Azure regions, which improves download speeds and ensures high availability. ACR also provides tagging systems to help you organize version histories and roll back to previous versions if a deployment fails. You can connect your registry to your code repositories to automatically build and deploy new images whenever you update your code.
Types of Container Network Drivers
When setting up containers, you must choose a network driver to control how they communicate with external systems. The NAT driver is a common choice that assigns private IP addresses to containers and translates their traffic when accessing external networks. If you want containers to connect directly to your physical or virtual network, you can use the Transparent driver, which does not translate addresses. The L2bridge driver operates at the data-link layer, which is useful for complex designs that require direct Layer 2 network behaviors.
Configuring Driver Modes and IP Assignment
Once you select a driver, you must configure how the system assigns IP addresses to your containers. You can choose dynamic IP assignment, where Azure automatically provides addresses as containers scale up or down. Alternatively, you can use static IP assignment to give a container a permanent address, which is useful for backend services that other applications need to find reliably. Your decision depends on whether your priority is easy scaling or predictable addressing.
Integration with Azure Virtual Networks
To protect and manage your containers, you should integrate them into an Azure Virtual Network. This integration allows you to apply Network Security Groups (NSGs) to control incoming and outgoing traffic using custom firewall rules. You can also configure load-balancing settings to distribute user requests across multiple container instances, which increases application availability. Connecting your containers directly to your virtual network ensures they can safely communicate with other secure cloud resources.
Manage Container Instances
Azure Container Instances (ACI) is a serverless hosting service that lets you run containers without managing virtual machines. This service is ideal for isolated tasks, application testing, or workloads that need to scale up quickly and shut down when finished. Azure manages all of the underlying hardware and operating systems, allowing you to focus entirely on your application. You are billed only for the exact seconds your container is active, making it a cost-effective option for temporary jobs.
Resource Configuration
When deploying a container instance, you must configure the exact amount of compute power it requires. You define the number of CPU cores to control processing speed and the amount of memory to hold active application data. Azure allocates these resources from its shared cloud infrastructure based on your configurations. Setting these values too low can cause your application to crash, while setting them too high will result in paying for resources you do not use.
Networking and Access
You must choose whether to assign your container instance a public or private IP address during deployment. A public IP address makes your container reachable from the internet, but you must open specific ports and protocols to allow traffic through. A private IP address keeps your container completely hidden from the public internet, restricting access to resources within your secure virtual network. Public containers require careful security planning, while private containers are inherently more secure but harder to access externally.
Security and Restart Behavior
You control how Azure handles a container when its process finishes by selecting a restart policy. You can choose the Always policy to ensure web services are restarted immediately if they crash. The OnFailure policy is ideal for batch jobs, as it only restarts the container if it stops due to an error. For one-time tasks that run to completion and should not run again, you use the Never policy to leave the container stopped.
Deployment with Bicep
You can automate your container deployments by writing your configurations in a Bicep file. This infrastructure-as-code file defines your container names, images, resource limits, ports, and restart policies in plain text. Using Bicep makes your deployments repeatable, allowing you to deploy the exact same environment multiple times without errors. The file can also output the container's private or public IP address after deployment, which helps you connect other automated tools to your application.
Deployment Methods
To execute your Bicep deployment, you can use either the Azure CLI or Azure PowerShell command-line tools. Both tools require you to target a specific resource group in your Azure subscription before running the deployment command. The deployment process is identical regardless of the tool you select, as both translate your Bicep file into the same Azure API calls. Once the deployment finishes, you can monitor and manage your running container through the Azure portal.
Configuring Windows Server Node Pools
You can run Windows-based applications in Azure Kubernetes Service by adding Windows Server node pools to your cluster. When setting up these node pools, you must select an appropriate network model to handle pod communication. You can choose Kubenet Networking, which simplifies setup by letting Kubernetes automatically manage the network routing for your pods. Alternatively, you can choose the Azure Container Networking Interface (CNI), which connects your nodes and pods directly to your pre-existing virtual network.
Network Models
The network model you select determines how IP addresses are allocated across your cluster. When using Azure CNI, every pod receives a unique IP address directly from your virtual network subnet, which requires careful upfront planning of your IP address space. Regardless of the model you select, you must ensure your network allows the Windows nodes to reach essential external services. This includes outbound connections to the AKS API server, the Microsoft Container Registry, and your storage accounts.
DNS and Connectivity Requirements
For your cluster to operate successfully, your Windows Server nodes must be able to resolve names and connect to external networks. You must configure your DNS settings so that nodes can resolve the hostnames of the Azure services they depend on. You also need to configure outbound internet connectivity through a firewall or web proxy so nodes can pull updates and container images. If your cluster must communicate with on-premises data centers, you can use virtual network peering or custom DNS forwarding.
To handle fluctuating application traffic, you can configure automatic scaling for your cluster. The Cluster Autoscaler automatically adds or removes virtual machines in your node pool based on the overall resource demands of your applications. You can combine this with the Horizontal Pod Autoscaler, which adjusts the number of active pod replicas based on real-time metrics like CPU utilization. These tools work together to maintain application performance during traffic spikes and reduce your hosting costs during quiet periods.
Security Policies
Securing an AKS cluster with Windows nodes requires controlling network traffic at both the physical and logical boundaries. You use Azure Network Security Groups to control traffic entering and leaving your node subnets, protecting your infrastructure from external threats. To control communication between pods inside the cluster, you can use the Azure Network Policy Manager to apply micro-segmentation rules. This prevents a security breach in one pod from easily spreading to other workloads in your cluster.
Best Practices
For secure hybrid deployments, you should use private endpoints to connect your cluster to Azure services like registries, databases, and key vaults. This configuration ensures that all traffic between your cluster and your resources remains entirely inside the private Azure network. Additionally, you should configure your cluster to use system-assigned managed identities for authentication. This removes the need to store sensitive usernames and passwords inside your application code or configuration files.
