Configure and manage Azure Files

Manage storage and file services

Configure and manage Azure Files

Create and manage Azure File Shares

Azure File Shares provide cloud-based file storage that you can access like a network drive. You create a share inside an Azure storage account, which is the top-level container for your storage resources. When you create a share, you choose its size and performance tier, such as the Premium tier for high-speed workloads or the Standard tier for general use. Once created, you can access the share from anywhere using the Server Message Block (SMB) or Network File System (NFS) protocol, and you manage it through the Azure portal, PowerShell, or Azure CLI by performing tasks like resizing the share or changing its performance tier.

Manage permissions for Azure File Shares

Controlling who can access an Azure File Share involves setting permissions at two main levels. First, you control network-level access by configuring the storage account firewall to allow traffic only from specific virtual networks or IP addresses. Second, you manage file-level permissions using Azure role-based access control (Azure RBAC) for administrative actions on the share and NTFS permissions for controlling access to files and folders within the share. NTFS permissions are applied directly on the files, just like on a traditional Windows Server, and they work together with the network rules; a user must pass both checks to successfully read or write data.

Configure and manage Azure File Sync

Azure File Sync is a service that keeps files synchronized between your on-premises Windows Servers and Azure File Shares. You deploy it by installing a sync agent on your Windows Server and then registering that server with a Sync Group in Azure. The Sync Group defines the connection between a specific cloud endpoint (your Azure File Share) and one or more server endpoints (folders on your local server). The service then continuously syncs files between these locations. A key feature is cloud tiering, which can move less-used files to the cloud, freeing up local disk space while keeping the files appear as if they are still locally stored.

...

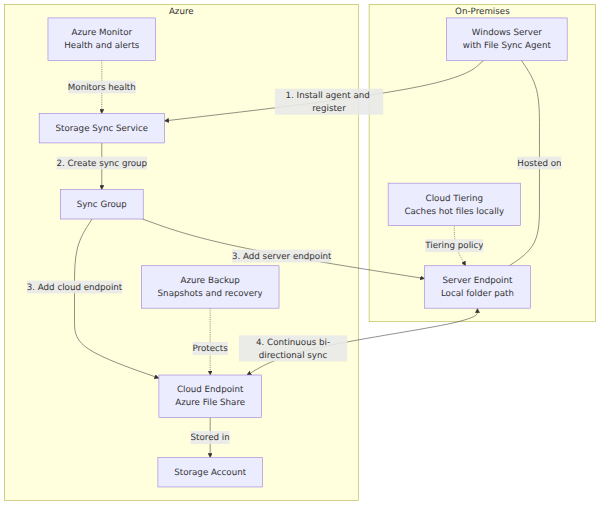

A system architecture showing on-premises Windows Servers with the File Sync Agent registering with Azure Storage Sync Service, which creates Sync Groups linking cloud endpoints (Azure File Shares stored in a Storage Account) to server endpoints (local folders), with cloud tiering caching hot files locally, Azure Monitor tracking sync health, and Azure Backup protecting the share.

Monitor File Sync

To ensure Azure File Sync is working correctly, you need to monitor its health and performance. You do this primarily through the Azure File Sync monitoring dashboard in the Azure portal, which shows the sync status for each server and any errors that have occurred. Important metrics to watch include the sync session results, which tell you if files are syncing successfully, and the cloud tiering efficiency, which shows how much local space you are saving. You can also set up alerts to notify you when a server goes offline or when sync health degrades, allowing you to troubleshoot issues before users are affected.

Migrate Distributed File System to Azure File Sync

You can migrate files from an on-premises Distributed File System (DFS) namespace to use Azure File Sync. The migration process involves several steps to ensure a smooth transition. First, you install the Azure File Sync agent on your DFS namespace servers. Then, you create a Sync Group and add the existing DFS folder as a server endpoint. Azure File Sync will begin replicating the files to the Azure File Share. Once synchronization is complete and validated, you can update your users or applications to point to the new Azure File Share location, effectively moving the file service to the cloud while maintaining the familiar folder structure and access controls.

...

Study Guides for Sub-Sections

Migrate Distributed File Systemto Azure File Sync

Before migrating, you must analyze your existing DFS namespaces and file shares to confirm they work with Azure File Sync. Check compatibility between your current environment and the cloud se…

...

View Study Guide

Configure and manage Azure File Sync

Azure File Sync connects your on-premises Windows Servers to cloud storage. To start, you install the Azure File Sync agent on your Windows servers and register each one with a **Storage Sync …

...

View Study Guide

Create and manage Azure File Shares

Provision and Secure Azure File Shares

...

View Study Guide

Manage permissions for Azure File Shares

To effectively secure data in Azure File Shares, administrators must configure and audit access controls using both share-level and file-level permissions. This hybrid permission model combines id…

...

View Study Guide

Monitor File Sync

Azure File Sync sends built-in performance data to Azure Monitor automatically every 15 minutes, so you do not need to configure anything extra to start tracking sync activity. To see this dat…

...

View Study Guide
