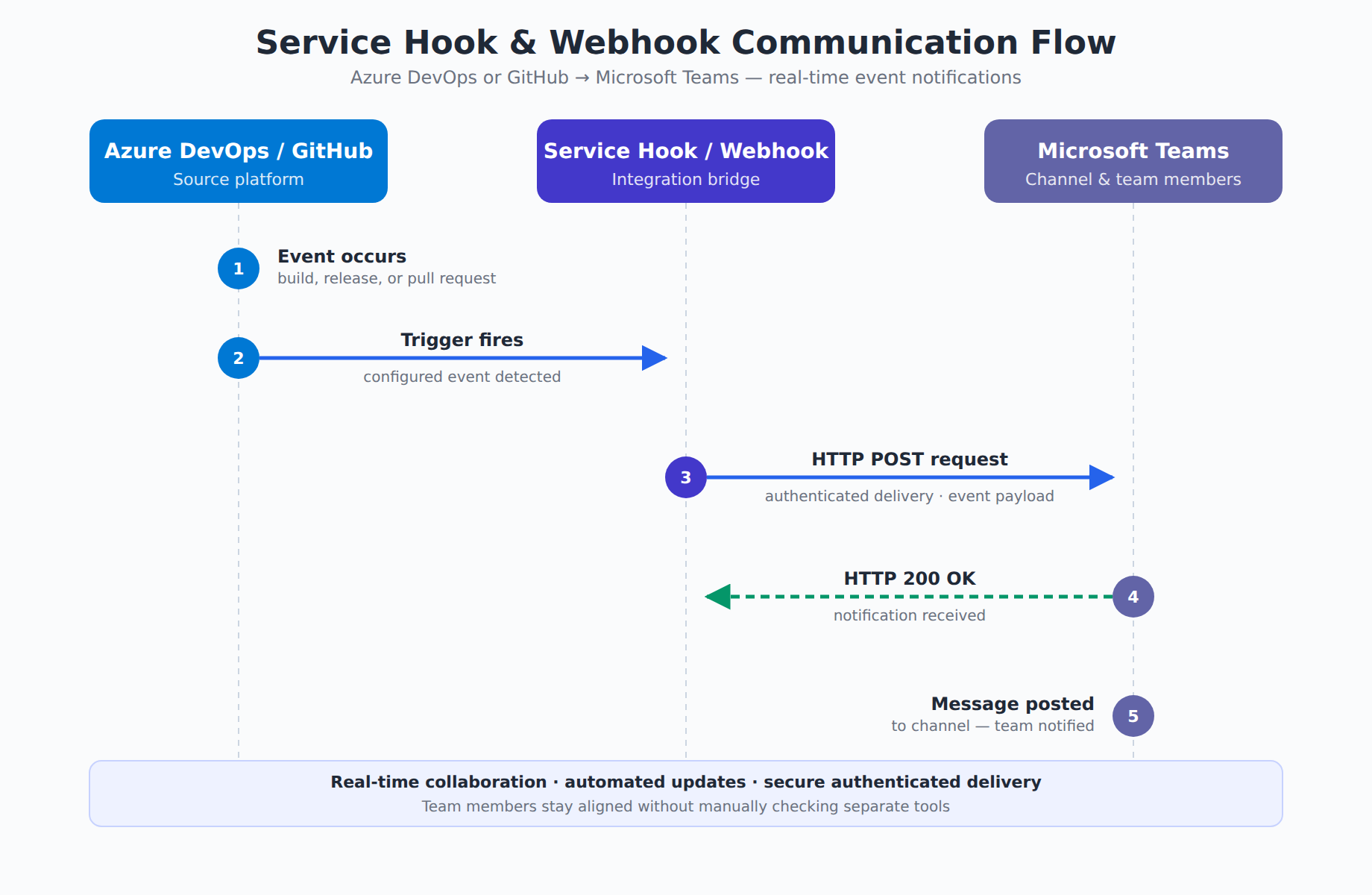

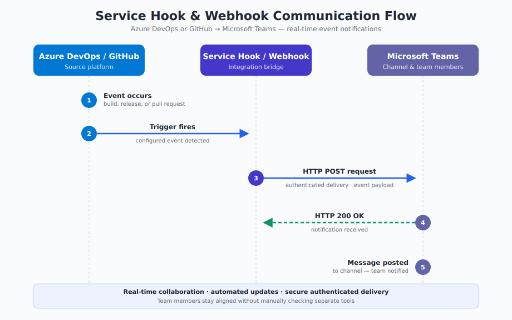

A sequence diagram showing how Azure DevOps or GitHub sends an authenticated HTTP POST request to a Microsoft Teams channel, which then displays the notification to team members.
Service hooks and webhooks work by having Azure DevOps or GitHub send an HTTP request to Microsoft Teams whenever a specific repository event occurs, such as a new build, completed release, or pull request. Microsoft Teams then automatically displays the notification message in the designated channel so team members receive real-time updates without manual checking.
To configure a service hook, navigate to your project settings in Azure DevOps and select the Service hooks option. Choose Microsoft Teams as the target service, select the triggering events such as finished builds or completed releases, and configure authentication settings to ensure only authorized systems can send messages.
You can customize GitHub webhooks by modifying the payload data to include specific metadata like build status, the user who triggered the action, or links to details. Security is maintained through authentication scopes, which ensure that only team members with appropriate permissions can configure or modify webhook settings.
Service hooks and webhooks are automated communication tools that connect Azure DevOps or GitHub to external services like Microsoft Teams. When something important happens in your code repository—such as a new build, a completed release, or a pull request—these tools automatically send a notification to a designated Microsoft Teams channel. This removes the need for team members to manually check for updates, keeping everyone informed in real time. The integration works by having the development platform (Azure DevOps or GitHub) send an HTTP request to Microsoft Teams whenever a specific event occurs, and Teams then displays the message in the chosen channel.
To connect Azure DevOps to Microsoft Teams, you create a service hook within your project's settings. First, navigate to your project settings in Azure DevOps and select the Service hooks option. Then choose Microsoft Teams as the target service and specify which events should trigger a notification—such as when a build finishes or a release completes. You also configure authentication settings during this setup, which ensures that only authorized systems can send messages to your Teams channel. Once configured, the service hook automatically delivers notifications with relevant details about each event, helping teams respond quickly to changes in their development pipeline.
GitHub webhooks work similarly to Azure DevOps service hooks but use GitHub's webhook configuration system. You set up a webhook in your GitHub repository settings, pointing it to your Microsoft Teams channel or a middleware service that forwards messages to Teams. When configuring the webhook, you can customize the payload—the data sent with each notification—to include only the metadata your team finds most useful, such as the build status, the person who triggered the action, or a link to view details. Authentication scopes control who can set up or modify webhooks, ensuring that only team members with proper permissions can change the integration settings. This keeps the communication channel secure while still providing real-time updates about repository activity.
The primary benefit of connecting your development tools to Microsoft Teams is enhanced collaboration through real-time notifications. Team members see build failures, successful deployments, or new pull requests appear directly in their chat channel, so everyone stays aligned without constantly checking separate tools. These integrations also automate updates, which reduces manual work and helps prevent important notifications from being missed. Finally, using proper authentication methods ensures that only authorized personnel can configure or receive these messages, maintaining a secure workflow across your development and communication platforms.
