Architect and Automate Secret, Certificate, and Key Management with Azure Key Vault
Azure Key Vault is the central service for securely storing and controlling access to secrets, certificates, and encryption keys. It integrates with other Azure services to automate lifecycle tasks and enforce security policies across hybrid and cloud-native environments.
Define Vault Architectures
Vault architecture begins with choosing between Azure Key Vault and Managed HSM (Hardware Security Module). Managed HSM provides a fully managed, highly available, single-tenant hardware security module that meets strict compliance standards such as FIPS 140-2 Level 3. Use a standard Key Vault for most secrets and certificates; choose Managed HSM when you need higher key isolation, your own security domain, or adherence to regulatory requirements that mandate dedicated hardware. The vault itself is a resource that resides in a specific Azure region, and its data is replicated within that region for durability. Traffic between an application and the vault always flows over HTTPS, and the vault’s control plane (management operations) is separate from its data plane (secret retrieval operations).
Granular Access Control

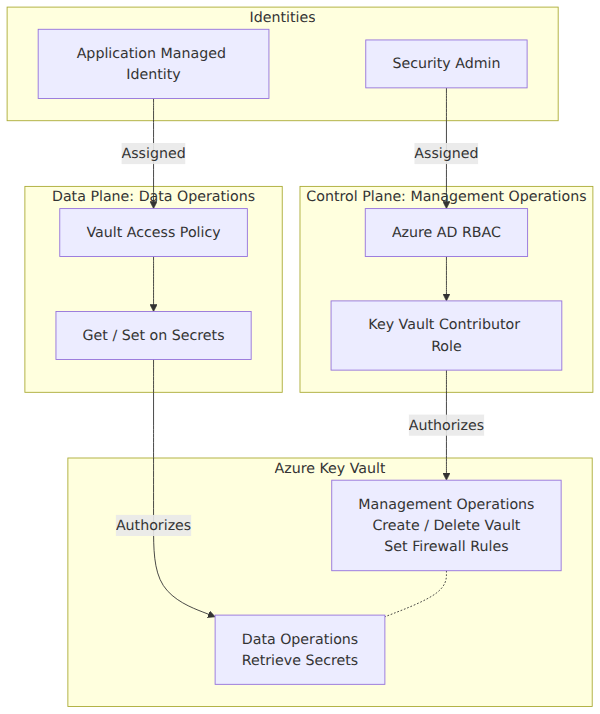

Access to the vault is governed by two layers: Azure AD role-based access control (RBAC) for management operations and the vault’s own access policy for data operations. Use Azure AD roles (such as Key Vault Contributor) to control who can create or delete vaults and set firewall rules. Use a Key Vault access policy to define exactly which users, groups, or applications can perform operations on secrets, keys, or certificates—for example, Get or Set on secrets. This two-layer approach lets you enforce the least privilege principle: a security admin might get management access to configure the vault, while an application’s managed identity gets only the data-plane permissions needed to read its own secret. No identity ever inherits more than what the policy explicitly grants.
Automate Certificate Issuance and Secret Rotation
Manual secret and certificate management is error-prone and difficult to scale, so Azure Key Vault supports automation through Azure DevOps and Azure Logic Apps. For example, you can build a DevOps pipeline that triggers a certificate renewal when the certificate’s expiration date approaches, then updates the variables in your application’s deployment. A Logic App can periodically call the vault’s REST API to rotate a secret—such as a storage account key—and push the new value back into the vault while updating consuming services. The automation sequence depends on the lifecycle: a secret moves from created → active → expired (or disabled); rotation re-creates it at a set interval. By chaining these actions, you ensure that certificates are re-issued before they expire and that leaked or deprecated secrets are replaced without manual intervention.
Monitoring and Compliance
Every operation on a vault—reading a secret, creating a key, renewing a certificate—can be sent to Azure Monitor as diagnostic logs. These logs are collected in a Log Analytics workspace or an Azure Storage account, forming an audit trail that shows who accessed what and when. Azure Policy applies organizational rules to the vault itself: you can enforce that all vaults require soft-delete and purge protection, that network access is restricted to a specific virtual network, or that access policies must not grant wildcard permissions. Policy violations are flagged in real time and can block non-compliant vault creation or trigger remediation. Together, Azure Monitor and Azure Policy give you the visibility and enforcement needed to meet compliance frameworks such as SOC 2, PCI DSS, or GDPR.
By integrating Azure Key Vault with Managed HSM, granular access control, automated rotation, and continuous monitoring, you create a closed-loop management system where secrets, certificates, and keys are protected, regularly refreshed, and legally auditable—satisfying both security and operational requirements within an Azure architecture.
