Evaluate Azure Integration Services
Analyze Integration Scenarios
When integrating different applications, you must choose the right Azure service based on the specific pattern of communication needed. The core decision involves comparing API Management, Service Bus, Event Grid, and Logic Apps against key requirements. You analyze scenarios by looking at the message patterns (like request-reply or publish-subscribe), the required throughput and latency, necessary security policies, and the cost model that fits the budget. The goal is to select the service or combination of services that best meets defined Service Level Agreements (SLAs) and governance rules.
Azure Logic Apps for Workflow Orchestration
Azure Logic Apps is a low-code service designed to orchestrate complex business processes that connect various systems. It is ideal for building workflows that involve legacy systems, SaaS applications, or AI services, often replacing older platforms like BizTalk Server. Logic Apps provides a visual designer for developer productivity and supports both synchronous (waiting for a response) and asynchronous (fire-and-forget) processing patterns. You choose Logic Apps when you need to coordinate steps across many different services with moderate speed requirements and a predictable consumption-based cost.
Azure Service Bus for Reliable Enterprise Messaging
Azure Service Bus is built for high-reliability, enterprise-grade messaging where order and delivery guarantees are critical. It supports patterns like queues (for one-to-one messaging) and topics (for publish-subscribe to many consumers). Key features include duplicate detection and transactional workflows, which ensure messages are processed exactly once and in the correct order. You select Service Bus for scenarios requiring load-leveling (smoothing out spikes in traffic) and for systems with competing consumers that need to reliably pull work from a shared queue.
Azure Event Grid for Reactive Event Routing
Azure Event Grid provides a serverless event-routing service built for high scalability and near-real-time responsiveness. Instead of applications constantly polling or checking for changes, Event Grid pushes events instantly to all subscribed endpoints as soon as they occur. This reactive model avoids the overhead and delay of polling. You choose Event Grid when you need to broadcast events—like a file being uploaded or a resource being created—to many other services immediately, with very low latency.
Azure API Management for API Governance and Security
Azure API Management acts as a secure, governed gateway for your backend APIs. It creates a facade, abstracting your internal services from external consumers and applying consistent policies. This service enforces rules for throttling (limiting request rates), authentication, and data transformation. It also provides centralized analytics and SLA monitoring. You implement API Management when you need to expose APIs securely to partners or the public, require fine-grained control over who can access what, and need to apply governance across all your APIs, including in hybrid or multi-cloud setups.
Complementary Services: Azure Functions and Azure Data Factory
For specialized tasks beyond core messaging or API routing, Azure Functions and Azure Data Factory extend integration capabilities. Azure Functions offers event-driven, serverless compute for running custom code or transformations in response to triggers from other services. Azure Data Factory is a cloud-scale data integration service for moving and transforming large volumes of data between many different sources and destinations. Both integrate seamlessly with Logic Apps, Service Bus, and Event Grid to handle complex scenarios that involve custom logic or big data.

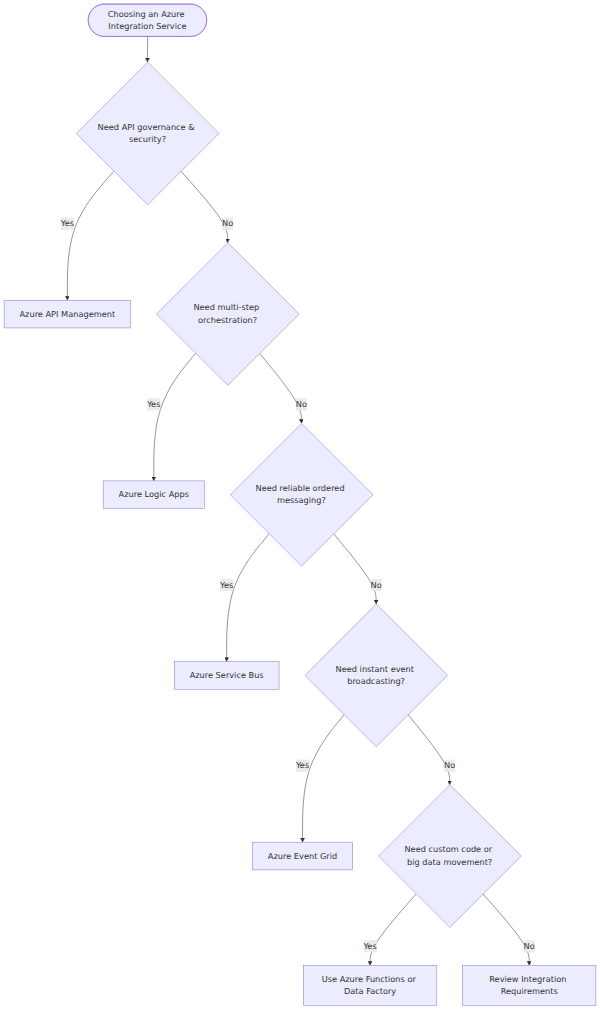

Key Decision Factors for Selection
To recommend the best API integration solution, you weigh several key factors against each service's strengths. First, consider the functional need: is it a multi-step orchestration (Logic Apps), reliable ordered messaging (Service Bus), instant event broadcasting (Event Grid), or API security and governance (API Management)? Next, evaluate throughput and latency requirements, deciding between batch processing and real-time eventing. Security policies, including authentication and compliance, must be supported by the chosen service. Finally, compare cost models, such as consumption-based pricing for variable workloads versus fixed pricing for predictable traffic, ensuring the solution aligns with governance and SLA targets.
