Operational excellence in logging aims to minimize manual maintenance while maximizing system visibility. A core architecture strategy is deploying the fewest number of Log Analytics workspaces necessary to satisfy compliance and business requirements. This centralized approach simplifies access control and makes it easier to manage workspace resources using Infrastructure as Code (IaC) tools such as ARM, Bicep, or Terraform. To verify the health of the logging pipeline itself, operators use Log Analytics Workspace Insights to track ingestion rates and configure proactive alerts for any system degradation.
Designing proactive alerting requires configuring Azure Monitor rules to detect anomalies without generating excessive noise. Using dynamic thresholds in metric alert rules allows machine learning algorithms to evaluate historical performance trends and automatically adjust threshold limits. To minimize administrative overhead, architects should design single alert rules that monitor multiple target resources of the same type. Organizations control alert notifications and routing behavior at scale by using alert processing rules, while integrating Logic Apps allows developers to enrich log data with custom context during the pipeline's execution.
Data flows from Azure resources to designated storage backends through diagnostic settings, which must be configured for each monitored asset. These diagnostic settings route data to a Log Analytics workspace for immediate analysis, a Storage account for low-cost archiving, or Event Hubs for ingestion into external tools. The choice depends on weighing the tradeoffs between log volume, retention durations, and active query requirements. To enforce these routing rules uniformly across entire subscriptions, architects deploy Azure Policy definitions that automatically apply diagnostic settings when new resources are provisioned.
Telemetry in Azure is split into metrics and logs, each serving different diagnostic purposes. Standard metrics represent lightweight, pre-aggregated performance data, such as CPU usage, that Azure collects automatically in near real-time. For deeper insights, log-based metrics transform complex Kusto query results into time-series data, which allows teams to alert on pattern frequencies within their logs. When standard metrics do not cover business-specific application events, teams can design and submit custom metrics directly to the Azure Monitor database.
Resource logs collect inside-the-resource telemetry, detailing the specific operations executed by individual Azure services. These logs are not captured by default, meaning they require explicit configuration of diagnostic settings to initiate data flow. Once configured, resources send this telemetry to Azure Monitor Logs for interactive querying, Azure Storage for cold archival, or Event Hubs for external ingestion. Choosing among these targets depends on whether the priority is immediate troubleshooting, compliance retention, or security analysis.
The activity log records subscription-level operations, capturing who initiated what action and when across the control plane. Unlike resource logs, the activity log starts recording events automatically from the moment a subscription is created. This telemetry can be forwarded to the same destinations—including Azure Monitor Logs, Storage, or Event Hubs—to support auditing and centralized compliance reporting. This log establishes a clear trust boundary audit trail, tracking every configuration change made to your Azure resources.
Selecting the ideal target for log routing involves evaluating data volume, retention needs, and budget boundaries. Choose Event Hubs when you must stream massive data volumes in real-time to external platforms without storing them in Azure. Choose a Log Analytics workspace when you require immediate query capabilities and advanced search syntax to investigate active incidents. Select a Storage account when your primary goal is cheap, long-term archiving for regulatory compliance where active querying is rarely needed.

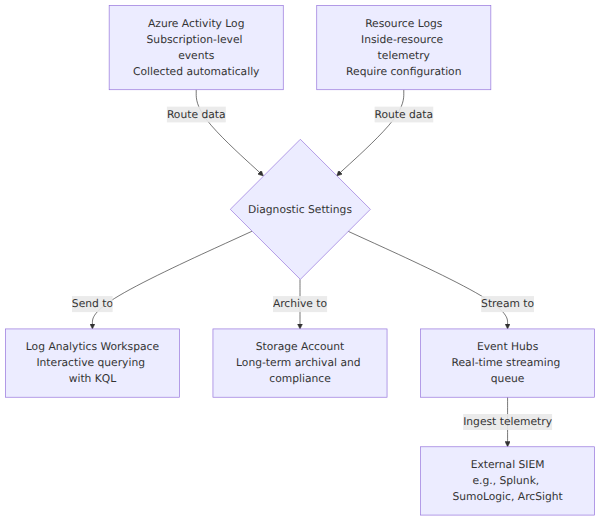

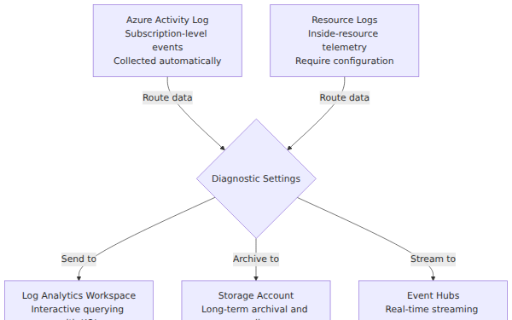

A system architecture diagram showing Azure Activity Log and Resource Logs flowing through Diagnostic Settings to three destinations: Log Analytics workspace, Azure Storage account, and Azure Event Hubs, with the latter feeding external SIEM tools.
Implementing log routing requires configuring diagnostic settings on each source resource to specify which data categories flow to which destinations. A single diagnostic setting can target multiple endpoints simultaneously, allowing a resource to copy logs to different targets. For example, a virtual machine can stream security events to Event Hubs for immediate analysis while storing a duplicate copy in a Storage account for long-term backup. This design decouples log generation from log consumption, making the telemetry architecture highly flexible.
Security operations centers rely on SIEM systems like Splunk, SumoLogic, or ArcSight to aggregate security data from hybrid environments. To feed Azure telemetry into these external systems, the traffic flows through Event Hubs, which serves as a highly scalable ingestion queue. You configure diagnostic settings to push resource and activity logs into the Event Hub, and the external SIEM reads directly from this queue. This architecture establishes a secure boundary where security analysts can evaluate Azure activity alongside on-premises event streams.
An integrated monitoring architecture coordinates native Azure services and external platforms to track application health, infrastructure speed, and cloud safety. The system depends on consistent data collection across virtual machines, network boundaries, and application environments. Correctly designed architectures ensure that operators detect performance anomalies early, preventing minor issues from escalating into service outages. By planning the integration points early, architects can deliver end-to-end visibility across both cloud-native and hybrid deployments.
Azure Monitor serves as the core telemetry engine, automatically gathering logs, metrics, and transaction traces from all Azure layers. Users analyze this compiled telemetry by writing queries in the Kusto Query Language (KQL) to isolate specific failure patterns or check system trends. Once the queries process the raw data, the platform can project the results onto interactive dashboards or trigger automated alerts. This central pipeline ensures that metrics and log events can be correlated instantly during live-incident investigations.
The Log Analytics workspace operates as a central relational database where ingested telemetry is structured into standardized tables. Administrators must configure workspace retention settings to manage the lifecycle of this data, balancing corporate compliance rules against ingestion costs. Setting shorter retention periods for development environments and longer periods for production systems prevents overspending on historic data storage. A well-managed workspace ensures that historical audit trails remain accessible for compliance reviews without ballooning the monthly monitoring bill.
Application Insights is a feature designed specifically to capture live application-tier telemetry, tracking response times, user page views, and dependency rates. Developers use this service to perform deep error diagnostics, tracing exceptions directly to specific lines of code in the application repository. By integrating this telemetry with DevOps pipelines, deployment teams can observe how new code releases affect system stability in real time. This relationship ensures that application-level performance metrics directly influence automated rollback decisions.
Third-party monitoring solutions allow organizations to leverage their existing enterprise monitoring suites alongside native Azure tools. These external systems connect to Azure Monitor through APIs to retrieve platform metrics, presenting a single pane of glass across multi-cloud environments. Choosing a third-party option is ideal when teams must satisfy a multi-cloud operational strategy or keep pre-existing dashboards. This integration ensures that operations teams maintain consistent monitoring workflows regardless of where the physical or virtual infrastructure resides.
Designing a comprehensive monitoring architecture requires a careful analysis of telemetry sources, from low-level infrastructure to application code. You must define explicit data collection policies that specify exactly what events to ingest and how long they must remain active in storage. The monitoring system must scale dynamically during traffic spikes to prevent telemetry data loss when the system is under heavy load. Ultimately, a successful design must deliver actionable alerting rules and clear visualizations that allow operators to diagnose and resolve issues immediately.
Venture into the world of Azure Infrastructure, where design meets functionality. Harness your skills and gain mastery over complex cloud structures to ace the AZ-305 Designing Microsoft Azure Infrastructure Solutions exam!
Prepare and test your skills
Prepare and test your skills
The Azure activity log automatically records subscription-level operations across the control plane from the moment a subscription is created. In contrast, resource logs collect inside-the-resource telemetry detailing service-specific operations and are not captured by default, requiring explicit configuration through diagnostic settings.
An organization should route logs to a Storage account when the primary goal is low-cost, long-term archiving for regulatory compliance where active querying is rarely needed. In comparison, a Log Analytics workspace is chosen for immediate interactive querying and troubleshooting, while Event Hubs is used for real-time streaming to external platforms and security information and event management (SIEM) systems.
Application Insights captures live application-tier telemetry, including response times, user page views, and dependency rates. It allows developers to perform deep error diagnostics by tracing exceptions directly to specific lines of code and integrates with DevOps pipelines to evaluate the stability impact of new code releases.
