Create an Azure App Service Web App
Authentication verifies who a user is, while authorization decides what that user can do. Azure App Service handles authentication through built-in support for identity providers like Microsoft Entra ID, Facebook, Google, and X, using OAuth 2.0 to manage the login flow. When a user tries to access your app, unauthenticated requests get redirected to the chosen provider before reaching your code. You configure this through the Authentication blade in the Azure portal, where you specify supported account types, what happens for unauthenticated requests, and whether to store tokens for session management.
Role-Based Access Control (RBAC) manages authorization by assigning permissions to users, groups, or applications at specific scopes, following the principle of least privilege to limit access to only what is needed. For example, you can restrict a web app to only accept users from your organization's Microsoft Entra tenant.
Service integrations extend your app's capabilities. Azure Key Vault stores secrets, keys, and certificates so your app can access them securely without hardcoding values in your code. Azure Monitor and Application Insights track performance, health, and usage to help you find and fix problems. Virtual Network Integration lets your app connect to resources inside an Azure virtual network, and you can use network security groups to control which IP addresses can reach your app.
To connect securely to back-end services like Azure SQL Database, you use a managed identity instead of storing passwords in your code. The managed identity represents your app to other Azure services, and you assign it roles like Storage Blob Data Contributor to grant access. Your code uses the DefaultAzureCredential class from the Azure Identity library to automatically get a token using the managed identity.
Getting code from a developer's machine to Azure App Service uses several deployment methods. GitHub Actions and Azure Pipelines provide automated continuous integration and continuous delivery (CI/CD), automatically building, testing, and deploying code whenever changes are pushed to a repository. The deployment source holds the code (like GitHub or Azure Repos), the build pipeline prepares the app, and the deployment mechanism places it into the web app.
For simpler needs, Local Git lets you push code directly from your computer to Azure, while ZIP deployment uploads a compressed file that Azure unpacks into your web app's folder. Both work well for quick updates without complex automation.
Deployment slots enable blue-green deployment strategies. Instead of deploying straight to production, you deploy to a staging slot to test changes in an environment that mirrors the live site. When ready, a slot swap moves staging into production, giving you zero-downtime updates and an easy rollback if problems appear.
Securing the deployment process matters. Using Microsoft Entra ID or Service Principals instead of basic authentication with usernames and passwords protects your Azure environment from unauthorized changes.
An App Service Plan provides the compute resources where your web apps run, and a Web App is an HTTP-based application hosted by Azure within that plan. The plan determines how much power you have, and you can run multiple web apps on the same plan.
When creating an App Service Plan, you choose the pricing tier (Free, Shared, Basic, Standard, Premium, or Isolated), the region where resources are located, and scaling options like scaling up to a higher tier or scaling out by adding more instances. These choices affect cost, performance, and capacity.
Deploy a web app through the Azure portal, Azure CLI, or PowerShell, specifying the target plan, runtime stack (like Node.js or .NET), and resource group. The web app then uses the plan's compute resources.
After deployment, add custom domains and SSL certificates through DNS entries and the Custom domains blade. You can use managed certificates from Azure or upload your own, then bind them to enable HTTPS.
Configure authentication using EasyAuth or Azure AD, then set application settings and connection strings through the portal or commands. These settings become environment variables that your code reads at runtime, letting you manage secrets and configuration without rebuilding your application.
Set Up Application Insights for Web Apps
Application Insights is an Azure Monitor feature designed to collect telemetry and monitor the health of web apps running on Azure App Service. When you integrate this service, real-time diagnostic data flows from your application to an Application Insights resource. This setup allows you to identify performance bottlenecks, errors, and user trends without disrupting your live environment. The service automatically tracks several telemetry types, including incoming HTTP requests, dependency calls to databases, and unhandled exceptions. You can also monitor performance counters and record custom traces using your existing logging framework.
To set up this monitoring capability, you need an active Azure subscription and an Application Insights workspace resource. If you use Visual Studio, you can add Application Insights to your ASP.NET or ASP.NET Core project automatically through the solution explorer interface. The development environment then injects the required connection string or instrumentation key directly into your application configuration. For cross-platform or newer systems, developers can implement the Azure Monitor OpenTelemetry Distro to achieve the same standard telemetry tracking.
Developers can enrich their telemetry by routing custom code logs to Application Insights using platforms like ILogger or by calling TelemetryClient directly. To ensure these logs are useful, configure your framework to capture at least Information level events and include correlation IDs to link log entries with specific HTTP requests. You can also set up availability tests, such as standard URL ping tests, to periodically check if your application is active. To visualize this data, developers configure custom dashboards in the Azure portal, pinning critical metric charts to track live application health.
Application logging and web server logging are key diagnostics that capture both developer-defined messages and raw server transactions inside Azure App Service. Application logs represent code-level events classified by severity states like Critical, Error, Warning, Info, Debug, or Trace. Web server logs record raw HTTP traffic in the standard W3C extended log file format, which includes client IP addresses and status codes. For deep troubleshooting, you can also enable detailed error logging to save copies of failed web pages and failed request tracing to track internal web server components.
You can configure these logging tools using the Azure portal or the Azure CLI. When running Windows apps, you must decide where to save your logs based on your storage needs. Choose the local file system for short-term debugging, or choose Azure Blob Storage for long-term retention and larger log volumes. Keep in mind that Linux and container apps are restricted to local file system storage, which requires you to define strict disk quotas and retention periods. If you regenerate the access keys for your Azure storage account, you must update your logging configuration to prevent connection failures.
Once logs are enabled, you can download them using FTP or access them through the Kudu console browser interface. For immediate debugging, developers can stream live logs directly to the Azure portal, Azure Cloud Shell, or a local terminal. Effective log management depends on selecting the right log levels, such as using Verbose during active development and switching to Error in production. This practice helps control storage costs and prevents system noise. Additionally, you should implement log rotation policies and restrict access to secure sensitive information in your logs.
Implement Diagnostic Settings and Log Streaming
To manage the diverse logs generated by your web apps, you must configure diagnostic settings to route telemetry to specific endpoints. You can choose different targets depending on your long-term goals for the data. Sending logs to Azure Storage provides cheap, long-term archival. If you need to send telemetry to third-party tools or external security systems, choose Azure Event Hubs to stream the data in real time. For deep query capabilities and advanced analysis, the best choice is routing logs to a Log Analytics workspace.
When you need to diagnose live issues immediately, log streaming displays console outputs and file updates as they happen. You can start a live stream using the Azure portal or run the az webapp log tail command in the Azure CLI. This bypasses the typical ingestion delay required for log database processing. If automated diagnostic pipelines fail, developers can log into the SCM site of the Kudu engine to extract a diagnostic dump. This provides direct access to the raw directory structure and log files on the underlying file system.
Once telemetry reaches a Log Analytics workspace, you can perform complex queries using the Kusto Query Language (KQL). KQL allows you to search, filter, and structure raw table data to find systemic issues or traffic anomalies. For example, you can query specific tables like AppServiceHTTPLogs to filter for HTTP 500 errors and correlate them with application exceptions. Mastering KQL allows developers to quickly build dashboards, set up alerts, and maintain visibility over complex cloud architectures.
Deploy Code and Containerized Solutions
Continuous Deployment (CD) and Continuous Integration (CI) automate the build, test, and deployment of applications. In Azure App Service, you set up CI/CD pipelines so that code changes from your source control repository automatically deploy to your web app, keeping the application current without manual work.
To enable CI/CD, use the Deployment Center in the Azure portal. Here, you connect your source control repository—such as GitHub, Azure DevOps, or Bitbucket—and configure the build provider. The build provider automates building your application and deploying it to App Service whenever new commits are pushed to the specified branch. For example, choosing GitHub Actions as your build provider generates a workflow file in your repository that handles the build and deployment tasks.
The configuration process involves selecting your repository type, authorizing access, and specifying the branch and build settings. You can choose between basic authentication and user-assigned managed identity for enhanced security. Your repository must contain the necessary files for automated builds, such as package.json for Node.js or .csproj for .NET applications. The Deployment Center provides a preview of the workflow file before saving, allowing you to customize it if needed.
To maintain different configurations for various environments—development, staging, production—use application settings and connection strings in Azure App Service. These settings can be managed directly in the Azure portal or through your CI/CD pipeline. For instance, you can use Azure Key Vault references to securely store secrets and inject them into your application during deployment. This approach ensures sensitive information is not hard-coded in your repository and allows for easy updates without redeploying the application.
Implementing CI/CD pipelines with Azure App Service improves deployment reliability and reduces manual errors. Use deployment slots for staging environments, allowing you to test changes before swapping them into production. Integrating with Azure Pipelines or GitHub Actions provides greater control over the build process and supports advanced scenarios like custom scripts or multi-stage deployments. By automating these processes, you achieve faster release cycles and more consistent application updates.
Use Azure Kubernetes Service (AKS) for Deploying Containerized Applications
Azure Kubernetes Service (AKS) is a managed Kubernetes service that simplifies deploying, managing, and operating containerized applications in Azure. It abstracts away cluster provisioning, patching, and scaling, providing container orchestration and automated control plane management. With AKS, developers focus on application logic while Azure handles infrastructure management and updates. The service integrates with Azure networking, storage, and identity solutions, making it easy to deploy secure and scalable microservices architectures.
To configure and manage an AKS cluster, choose from tools such as ARM templates for declarative infrastructure-as-code, Azure CLI for scripting and automation, or the Azure Portal for interactive management. You define parameters like agentPoolProfiles, SSH public keys, and DNS prefixes in your templates or CLI commands to automate cluster creation and enable repeatable deployments. Node pools let you isolate workloads and optimize resources by using different VM types. AKS supports system-assigned managed identities for secure access to other Azure resources such as Azure Container Registry (ACR) and Azure Disks.
Deploying containerized workloads to AKS involves creating Kubernetes Deployment and Service YAML files or using Helm charts. You specify container images hosted in ACR and configure port mappings, environment variables, and resource requests. AKS supports two main workload types: stateless applications such as web front ends, and stateful applications that use Persistent Volumes and Azure Disks or Azure Container Storage. Use kubectl apply to deploy resources and kubectl get pods to monitor pod status and troubleshoot issues in real time.
AKS offers built-in scaling and upgrade strategies to ensure seamless performance and high availability. The Cluster Autoscaler automatically adjusts node counts based on pending pod demands, while the Horizontal Pod Autoscaler scales pods by CPU or custom metrics. To maintain service continuity during upgrades, configure Pod Disruption Budgets and set maxUnavailable values. For region-level resilience, deploy clusters across availability zones and distribute replicas to minimize downtime during zone failures.
Implement Deployment Strategies for Azure App Service
Azure App Service uses three main parts to move code from development to the cloud. A deployment source is where your code lives, such as GitHub or Azure Repos. The build pipeline takes that code and prepares it for running, while the deployment mechanism places the files into the web app's directory. Using these components together creates a smooth path for your application to reach users.
Deployment slots are live apps with their own host names that allow you to test code in a staging environment before it goes live. By using slots, you can perform a slot swap, which moves your tested code into the production slot without any downtime. This process ensures your app is fully warmed up and validated before customers see the changes.
Implementing specific strategies helps manage how updates are released to minimize risk. A blue-green deployment uses two identical environments where one is live and the other is idle for updates. Canary deployments allow you to test new features on a small group of users before rolling them out to everyone. Key strategies include blue-green (reduces downtime by switching traffic between two identical environments), canary (identifies potential issues by monitoring a small percentage of live traffic), and rollback (allows you to quickly return to a previous version if a problem occurs during a swap).
When deploying containerized solutions, you must manage images within a container registry. Instead of using a generic "latest" tag, tag images with specific versions or commit IDs to make debugging easier. The deployment process involves building and tagging the container image with a unique identifier, pushing the image to a central storage like Azure Container Registry, and updating the web app to pull the new image tag and restart the service.
Properly managing deployment settings is vital for the performance and security of your web app. You can configure startup commands to run specific scripts when a container starts or set the runtime stack to match your application's language. Storing secrets in application settings or Azure Key Vault ensures sensitive data remains protected during the deployment process.
API Definition and Cross-Origin Resource Sharing (CORS)
An API definition is like a user manual for your web API. It uses a standard format called the OpenAPI specification to list all the available operations, what data they need, and what they will return. In Azure App Service, you can use this specification to automatically create interactive documentation. This helps other developers understand how to use your API correctly without having to dig through your code.
Cross-Origin Resource Sharing (CORS) is a browser security rule. By default, a web page loaded from one domain cannot make requests to an API on a different domain. This is the same-origin policy. CORS allows you to safely relax this rule for specific, trusted domains. You configure which external websites are allowed to call your API by listing their addresses as allowed origins. You can also control which HTTP methods (like GET or POST) and headers are permitted.
You can set up CORS directly in your application code, for example by using the [EnableCors] attribute in an ASP.NET API. You can also manage it through the Azure portal or Azure CLI using commands like az webapp cors add. For security, you should avoid using a wildcard (*) to allow all origins, especially if your API uses credentials. Instead, explicitly list only the domains you trust. Regularly reviewing this list helps prevent unauthorized access while still enabling necessary integrations.
Transport Layer Security (TLS) encrypts the connection between a user's browser and your Azure App Service app, keeping data private. You should configure your app to require HTTPS and redirect any unsecured HTTP traffic. In the TLS/SSL settings, you can enforce the use of modern protocol versions, like TLS 1.2 or higher, and disable older, less secure versions like TLS 1.0 and 1.1. This protects your application from known vulnerabilities.
For an App Service Environment (ASE), which hosts multiple apps, you can manage TLS settings globally. Using an Azure Resource Manager template, you can add a clusterSettings property to disable outdated TLS versions for all apps in that environment at once. You can also configure the order of cipher suites, which are the specific encryption algorithms used during the TLS handshake. Placing stronger, modern ciphers (like those for TLS 1.3) at the top of the list ensures they are preferred for connections.
After configuring TLS, it is important to validate that your settings are working correctly. You can use online tools like SSL Labs to scan your app's public endpoint. This test will show which TLS protocols and cipher suites your app supports, confirming that only secure connections are allowed. Regularly updating and checking these settings is a key part of maintaining security and compliance for your application.
Secure Service Connections and Network Integration
When your app needs to connect to other Azure services (like a database or a key vault), using passwords or keys in your code is a security risk. Instead, you should use a Managed Identity. This is an automatically managed identity for your app in Azure Active Directory. Your app uses this identity to request access tokens, which it then presents to other services. This method is more secure because you never have to manage or store secrets, and you control access through role-based access control (RBAC).
Virtual Network Integration allows your app to securely communicate with resources inside an Azure virtual network, such as virtual machines or internal databases. This feature provides outbound connectivity from your app to the private network. For inbound private access to your app, you can use a Private Endpoint. This assigns a private IP address from your virtual network to your app, allowing other resources in the network to reach it without any traffic going over the public internet.
Using these network integration features creates a more secure architecture. Traffic between your app and integrated services stays on the Microsoft Azure backbone network, improving privacy. It also hides backend resources from public exposure, reducing the attack surface. This setup is essential for applications that need to access sensitive data stored in isolated cloud resources or need to connect to on-premises systems through hybrid connections.
Implement Autoscaling
Autoscale is an Azure feature that automatically adjusts the number of App Service plan instances based on demand. When resource use crosses certain thresholds, autoscale adds or removes instances to improve availability and minimize costs. This ensures web apps remain responsive during peak times without over-provisioning during low usage.
Azure autoscale supports horizontal scaling but not vertical scaling in web apps. Horizontal scaling changes the instance count by adding or removing copies of your app. Vertical scaling adjusts the CPU, memory, or storage of existing instances and requires changing the pricing tier of the App Service plan. Since vertical scaling has hardware limits and may require restarts, horizontal scaling is more flexible and faster for dynamic web workloads.
To configure autoscale, you define profiles containing rules, capacity, and schedules in the Azure portal or CLI. Metric-based scaling uses signals like percentage CPU, memory usage, HTTP queue length, or custom metrics from Application Insights. You set a low and high threshold, and the system uses OR logic to trigger scale-out and AND logic for scale-in. Each profile specifies a minimum, maximum, and default instance count to keep scaling within safe bounds.
You can also add time-based scaling rules to prepare for known traffic patterns, such as weekends or special events. Schedule-based rules let you scale to a specific instance count for certain days or date ranges. Autoscale can send notifications via email or webhooks when scaling actions occur, which helps in monitoring and auditing changes. Best practices include defining at least one scale-out and one scale-in rule and testing thresholds to avoid rapid scaling cycles.
Autoscale automatically adjusts the number of running resource instances based on current load or demand. This helps maintain application performance during peak usage and reduces costs during low activity periods by scaling resources in or out.
An autoscale configuration uses profiles that contain rules defining when to scale. Each rule is based on a specific metric like CPU usage or a custom application metric, and has a threshold value that triggers the action. The scale action specifies whether to increase or decrease the instance count and by how much. Both scale-out and scale-in rules must be defined to handle fluctuating load efficiently. A cooldown period is set to prevent rapid, unnecessary scaling actions immediately after a previous operation.
Beyond standard platform metrics, you can create scaling rules based on custom metrics generated by your application. For example, you might scale based on active user sessions, message queue length, or a performance counter unique to your app. To use a custom metric, your application must send telemetry data to Application Insights. Once the metric is available there, you can select it as the source for a scaling rule.
When designing rules, set appropriate thresholds and time durations to avoid overly sensitive scaling that could cause instability, known as flapping. A good practice is to scale out when average CPU usage is above 70% for 10 minutes and scale in only when it falls below 30% for a similar period. Always define sensible instance limits: a minimum to ensure availability, a maximum to control costs, and a default number of instances to use if metrics are unavailable.
After configuring autoscale, monitor its operations using Azure Monitor logs and the activity log to verify that scaling actions trigger correctly and to identify any failures. Set up alerts to be notified of significant autoscale events. Test scaling rules under different load conditions to ensure they behave as expected before relying on them in production.
Implement Scheduled Scaling and Predictive Autoscaling Patterns
Autoscaling automatically adjusts resources to match the current demand of an application. It primarily uses horizontal scaling, which means adding or removing resource instances like web app workers or virtual machines. This ensures applications remain responsive during high traffic while saving money during quiet periods.
Scheduled scaling allows developers to set rules based on specific times or dates for predictable workload patterns. For example, a business might scale out its resources every Monday morning or increase capacity for a major holiday sales event. The key benefits are predictability (resources are ready before expected traffic arrives), cost control (capacity reduces automatically during known off-hours), and automation (no manual intervention required for recurring spikes).
Predictive autoscaling uses machine learning to analyze historical data and forecast future resource needs. By looking at at least seven days of history, Azure can predict when a CPU spike will occur and scale out in advance. This proactive approach helps prevent performance issues before they start by pre-launching instances.
In Azure App Service, these settings apply to the App Service Plan, which manages compute power for all hosted web apps. Developers define these behaviors using autoscale profiles that set the minimum, maximum, and default number of instances. It is a best practice to always include both scale-out and scale-in rules to maintain a healthy balance of performance and cost.
Explore Deployment Slot Configuration and Management
Azure App Service deployment slots are individual, live instances of your web application that run within the same App Service plan. These slots act as staging environments that allow developers to deploy and test new versions of an application before making them public. Because each slot has its own unique hostname and URL, you can run tests safely without affecting your active users. This architecture ensures a smooth deployment process and helps you achieve a deployment with zero downtime.
Developers can create and manage deployment slots using several administrative tools. You can use the Azure Portal for a visual interface, or use command-line options like the Azure CLI and Azure PowerShell to automate the process. When creating a new slot, you can choose to clone the configuration from an existing slot or build one with brand new settings. Each slot appears as a distinct app resource in your resource group, allowing you to manage and secure them independently.
Deployment slots make it easy to separate your development lifecycle into production and staging environments. Best practices recommend enabling continuous deployment on your staging slot so new code changes deploy automatically for immediate testing. In contrast, you should disable continuous deployment on your production slot to prevent unverified updates from accidentally going live. When your staging code is fully verified, you perform a swap to exchange the contents of the staging and production slots.
Categorize and Manage Configuration Persistence

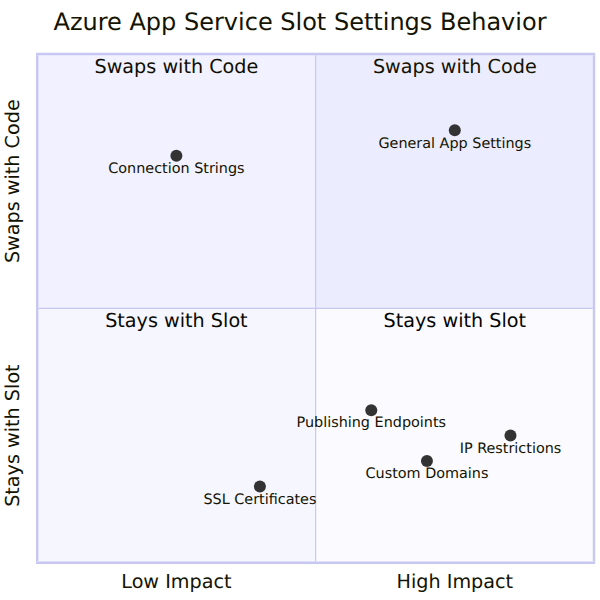

When you configure an app, you must understand which settings travel with your code during a swap and which stay behind. Slot-specific settings, also known as sticky settings, are configurations tied directly to a specific slot environment that never change during a swap. These include critical environment configurations like custom domains, SSL certificates, publishing endpoints, and IP restrictions. In contrast, non-slot-specific settings represent general application settings that swap automatically to ensure the new application version runs with its matching configuration.
