Implement Service Endpoints for Secure Access
Virtual Network service endpoints provide a secure way for resources in your virtual network to connect directly to Azure platform services. When you enable a service endpoint for a subnet, traffic from that subnet to the supported Azure service flows over the Microsoft Azure backbone network. This keeps the traffic off the public internet, enhancing security and providing an optimized routing path.
A key benefit is improved security. Enabling a service endpoint extends your virtual network's identity to the Azure service. This allows you to configure the service (like an Azure Storage account) to only accept traffic coming from your specific subnets, effectively removing its public internet exposure. While Azure Private Link is recommended for the most private access, service endpoints are a simpler, no-cost option to secure service access at the network level.
Service endpoints are widely available for many core Azure services. You can configure them for services including Azure Storage, Azure SQL Database, Azure Cosmos DB, Azure Key Vault, Azure Service Bus, and Azure App Service in the regions where those services are available. This makes them a versatile tool for locking down platform services across your environment.
Analyze the Operational Mechanics and Supported Services of Azure Service Endpoints
Network Routing and IP Address Change
When you enable a service endpoint for a subnet, the fundamental routing for traffic to that Azure service changes. The traffic path shifts from going over the public internet to traveling exclusively over the Azure backbone. A critical operational effect is that the source IP address seen by the Azure service changes from a public IP address to the private IP address of the virtual machine or instance inside your virtual network. This private IP sourcing is what allows you to create virtual network firewall rules on the service itself.
Configuration and Traffic Control
You configure service endpoints at the subnet level, not on individual virtual machines. Once enabled for a subnet, all resources in that subnet can use the endpoint to reach the service. It's important to understand that DNS resolution for the service still returns its public IP address; the routing change happens at the network layer. To control this traffic, you use Network Security Groups (NSGs) on the subnet. You can simplify NSG rule creation by using Service Tags, which represent the IP address groups for entire Azure services like Storage or Sql.
Supported Services and Key Considerations
Service endpoints are enabled by registering specific Resource Providers for your subscription. Major supported services include Azure Storage (via Microsoft.Storage), Azure SQL Database (Microsoft.Sql), Azure Key Vault (Microsoft.KeyVault), and Azure Cosmos DB (Microsoft.AzureCosmosDB). A key benefit is optimal routing, which prevents service traffic from being forced through an on-premises network (forced tunneling), thus improving performance. However, there are limitations: for Azure SQL, the virtual network and the database must be in the same region, and service endpoints do not natively provide private connectivity from on-premises networks without additional firewall configuration.
Differentiate Service Endpoints from Private Endpoints and Evaluate Advanced Security Implications
Core Difference in Scope and Connectivity

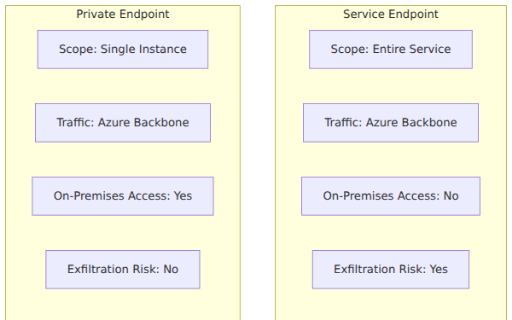

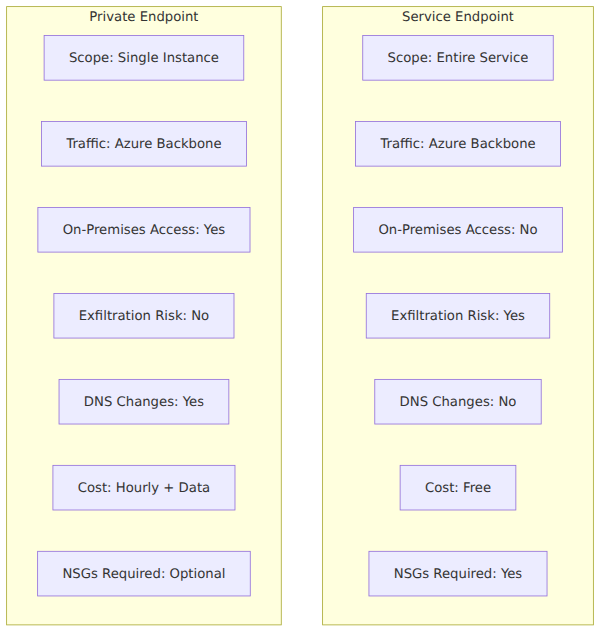

Azure Service Endpoints and Azure Private Endpoints solve similar problems but in fundamentally different ways. A service endpoint secures access at the service level (e.g., all Azure Storage accounts). It routes traffic from your subnet over the Azure backbone but the service retains its public endpoint. A private endpoint, powered by Azure Private Link, provides connectivity at the individual resource level (e.g., one specific storage account). It creates a network interface with a private IP address inside your virtual network that maps directly to that single resource instance.
Security Implications and Data Exfiltration
This difference in scope leads to major security implications. With service endpoints, you can restrict a service to only accept traffic from your virtual networks, but a user or application within your network could still potentially access any instance of that service that you have permissions for, posing a data exfiltration risk. Private endpoints provide built-in protection against this: the private endpoint only connects to the one mapped resource, blocking access to all other resources within the same service, which significantly mitigates data leakage risks.
