Professional Cloud Database Engineer

Schedule Database Exports

Operational Monitoring and Error Handling

Monitoring scheduled database exports is essential for maintaining data integrity and meeting recovery objectives. You can use Cloud Monitoring and Cloud Logging to track the status of automated export jobs, checking whether they have succeeded, failed, or are still running. These tools provide a centralized view of performance, allowing you to identify bottlenecks or delays in the data pipeline.

When a failure occurs, you need to determine the root cause through diagnostic logs. Common issues include validation errors, worker code exceptions, or out-of-memory (OOM) errors that stop the export process. Reviewing worker logs and execution graphs helps pinpoint exactly where a step failed or where resources were insufficient. Key areas to monitor include throughput dips (which may indicate stuck elements or resource contention), system lag (which often suggests the pipeline has reached its scaling limits), and resource usage (tracking CPU and memory helps prevent unexpected job terminations).

To improve reliability, you should implement automated retry logic and dead-letter queues. A dead-letter queue acts as a storage area for failed records, allowing the rest of the job to complete without failing the entire pipeline. This strategy ensures that bad data does not stall the process, providing a way to inspect and reprocess errors later. Automated retries help overcome transient issues such as temporary network glitches or service unavailability without manual intervention.

Advanced automation involves using the saga pattern and vertical autoscaling to manage complex workflows. The saga pattern manages data consistency by executing compensating transactions if a step in the sequence fails. Vertical autoscaling automatically adjusts the memory available to a job, which reduces the risk of failures caused by exceptionally large data sets.

Testing and validation are the final steps in ensuring that scheduled workflows for database exports are robust. Using Cloud Scheduler to trigger test runs allows you to verify that Cloud Functions or APIs are correctly initiating the export. Checking the Logs Explorer after these tests confirms that the authentication and permissions are properly configured for the destination storage.

Orchestration and Triggering Mechanisms

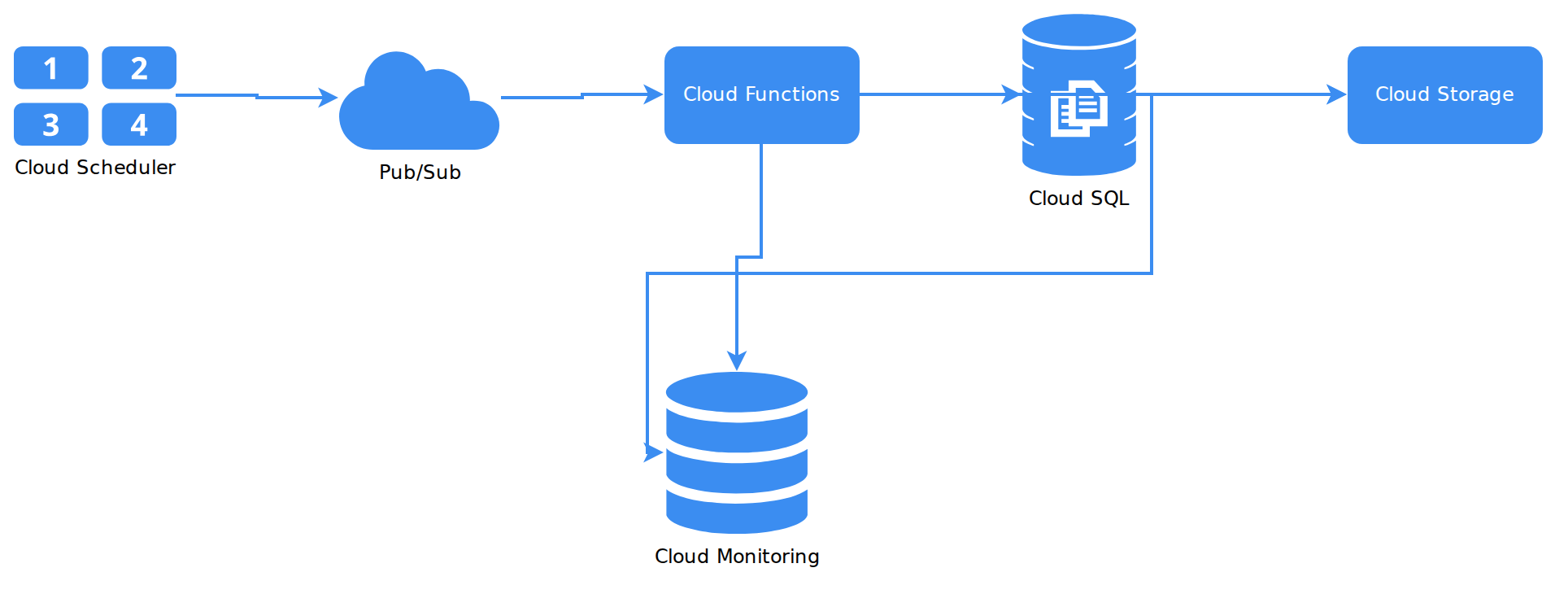

Orchestration in Google Cloud involves coordinating multiple services to perform complex tasks like database exports. Cloud Scheduler is a fully managed cron job service that allows you to trigger actions at specific times using the unix-cron format. By using Pub/Sub, you can create a reliable messaging bridge between the scheduler and other services. This setup ensures that automation is both scalable and decoupled from the database itself.

To automate exports, a Cloud Function is often used to execute the code that initiates the export process. The function receives a JSON payload from the scheduler, which contains details like the destination bucket name and specific entity filters. Using an inline editor or local code, you can define logic to handle exports for various technologies. This method is highly effective for services like Datastore and Cloud SQL that do not have built-in scheduling.

Different databases require specific orchestration tools to manage their workloads efficiently. For example, Cloud SQL can use serverless exports to offload the work to a temporary instance, preventing performance drops on the main database. Spanner exports typically leverage Dataflow templates to move data to Cloud Storage. The key tools for these tasks include Cloud Scheduler for time-driven tasks, Cloud Functions for executing export logic, Pub/Sub for triggering events between services, and Dataflow for processing large-scale Spanner exports.

Identity and Access Management (IAM) is essential for ensuring that automated services have the correct permissions to interact. A service account must be granted specific roles, such as the Cloud Datastore Import Export Admin or the Storage Object User role. Without these roles, the Cloud Function will not be able to write data to the destination bucket. Proper IAM configuration maintains the security of the entire automation pipeline by following the principle of least privilege.

Performance can be improved by using specific strategies during the export process to minimize impact on users. Read replicas can be used to run exports without affecting the primary database's response time. Additionally, using GZIP compression helps reduce storage costs in Cloud Storage by shrinking the size of the exported files. Monitoring these tasks through Cloud Logging helps identify and troubleshoot any failures in the automated workflow.

Storage Configuration and Data Security

When scheduling exports, you must properly set up a Cloud Storage bucket to serve as the destination for your data. It is important to implement bucket lifecycle management policies to automatically delete or move old backups, which helps control storage costs over time. You should also consider enabling object versioning or retention locks to protect your exported files from being accidentally changed or deleted. A well-configured destination bucket ensures that your data is stored efficiently and remains available when needed for recovery.

Security is a top priority when setting up automated workflows, particularly concerning IAM permissions. The service account used by the database instance must be granted specific roles, such as Storage Object Admin, to allow it to write files to the destination bucket. Following the principle of least privilege is essential—you should only grant the permissions necessary for the task and revoke them if they are no longer required. The Storage Object Admin role provides full control over the objects within a bucket, while the Storage Object Creator role allows a service account to put new files into a bucket. The Cloud SQL Editor role is necessary for a user to initiate export operations.

For enhanced data protection, you should evaluate the use of Customer-Managed Encryption Keys (CMEK) for your storage buckets. This feature gives your organization total control over the keys used to encrypt your exported data at rest, rather than relying on default keys. Additionally, when your database and storage bucket are in different projects, you must carefully manage cross-project export configurations. Correctly setting up these permissions across project boundaries is vital for maintaining security in complex cloud architectures.

To ensure that automated exports do not slow down your production environment, you can use offload exports, which are often called serverless exports. This technique moves the export work to separate resources so the main database instance remains fast and responsive for users. For very large datasets, using striped exports can further improve speed by splitting the backup into several smaller files that are processed at the same time. Selecting the right export method prevents performance issues and ensures that backups finish within their scheduled time windows.
