Professional Cloud Database Engineer

Select and Execute Engine-Specific Import and Export Procedures

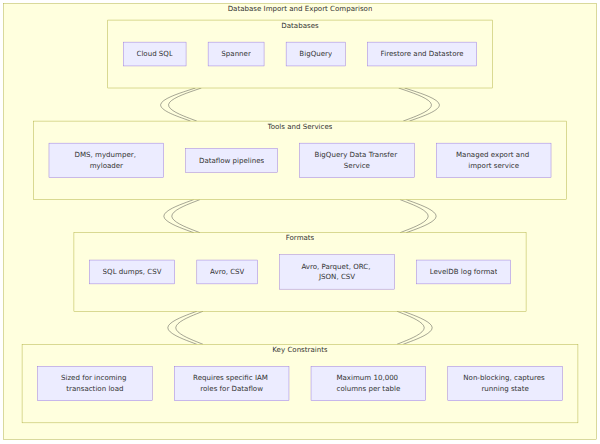

Cloud SQL provides several paths for moving data, depending on whether the requirement is a continuous feed or a one-time migration. For continuous replication, the Database Migration Service (DMS) automates the pipeline, while manual operations rely on engine-specific utilities like mydumper and myloader to manage massive datasets. For manual moves, data flows through Cloud Storage as SQL dumps or CSV files. Regardless of the tool chosen, the target database instance must be sized properly to handle the incoming transaction load and storage requirements of the source environment.

Spanner manages its imports and exports by deploying Dataflow pipelines to handle the heavy processing between the database and Cloud Storage. The primary format for Spanner is Avro because it preserves data schemas and types, though CSV is also supported as an alternative. For this pipeline to execute, administrators must grant specific Identity and Access Management (IAM) roles to the Dataflow worker service account. These roles include Cloud Spanner Viewer, Dataflow Worker, and Storage Admin. In terms of infrastructure, Spanner requires sufficient compute capacity to prevent import jobs from degrading the performance of active applications.

BigQuery simplifies ingestion from external warehouses like Snowflake or Amazon Redshift using the BigQuery Data Transfer Service. This automated service supports portable formats including Avro, Parquet, ORC, JSON, and CSV. When designing the target tables, users must ensure schemas stay under the limit of 10,000 columns per table. For massive datasets, Cloud Storage acts as a staging environment where raw files are temporarily placed before they are parsed and loaded into BigQuery.

Firestore and Datastore handle data movement through a managed export and import service that writes files in the LevelDB log format. Security is maintained by using a specialized Firestore service agent to authorize these actions. If the target Cloud Storage bucket resides in a different Google Cloud project than the database, the administrator must grant explicit permissions to this service agent. Because these managed exports are designed to be non-blocking, they capture live database updates as the operation runs, meaning the exported files represent a running state rather than an exact point-in-time snapshot.

To guarantee that data has migrated without corruption, the open-source Data Validation Tool (DVT) compares the source and target tables. When applications require real-time synchronization during a multi-phase migration, third-party utilities like Striim, Fivetran, or Debezium provide continuous Change Data Capture (CDC) capabilities. Performing a dry run of these operations is a critical early step to expose pipeline errors before executing the actual cut-over.

Configure Secure Access and Identity Management for Data Transfer

Identity and Access Management (IAM) controls which services and identities can access data resources during migration. Securing these pipelines relies on the principle of least privilege, which restricts access to only the minimum permissions required for a specific task. Adhering to this principle stops unauthorized actors from accessing sensitive data and prevents accidental modifications during transfer.

During a database migration, three identities work together: the User account, the DMS service account, and the Database instance service account. The User account initiates and manages the migration job, whereas the two service accounts run background tasks automatically. Each identity requires targeted permissions to connect resources like Cloud SQL, AlloyDB, or Firestore securely.

Managing Cloud Storage bucket permissions is a critical step for successful data exports and imports. For example, a destination service account often needs the Storage Object Viewer role to read backup files from a bucket. Common roles used for storage access include:

• Storage Admin: Provides full control over buckets and objects.
• Storage Object Viewer: Allows a service to see and read data but not change it.
• Legacy Bucket Reader: Grants specific access to view bucket metadata.

Database engines require distinct IAM roles to authorize their data mobility tasks. For instance, exporting from or importing to Cloud SQL often requires the Cloud SQL Editor role, while AlloyDB operations require the AlloyDB Admin role. To manage the migration process across multiple Google Cloud technologies, administrators assign the Database Migration Admin role.

Network security and encryption provide extra layers of protection for data in transit. VPC Service Controls establish a secure perimeter around Google Cloud resources to prevent sensitive database exports from leaving the trusted network boundary. Additionally, Customer-Managed Encryption Keys (CMEK) allow organizations to retain full ownership of their encryption keys, ensuring data remains protected as it moves through the pipeline.

Optimize Performance and Validate Data Integrity

Maximizing the speed of large-scale data movements requires careful planning of parallel operations and resource sizing. During the initial export phase, engineers should select a larger database machine tier to prevent CPU bottlenecks from slowing down the dump process. Using the Database Migration Service (DMS) enables data dump parallelism, which splits the export workload into multiple concurrent streams. To maintain high-speed data flow across the network, administrators must enable data compression and configure parallel replication on the target instance.

Post-Import Validation

Once the transfer completes, engineers must run post-import validation to confirm that the target database matches the source. The Data Validation Tool (DVT) is an open-source command-line utility that automates this verification step. DVT connects to both databases and checks consistency at several levels:

• Comparing source and target schemas to ensure all columns and data types align.
• Checking row counts to ensure no records were lost during the transfer.
• Running custom data validation scripts to verify complex business logic and specific data values.

Managing Multi-Technology Migrations

Migrating data between different types of database technologies requires managing service limits and selecting the appropriate tools. For example, BigQuery tables cannot exceed a limit of 10,000 columns, so complex objects might need to be converted into database blobs before migration. Choosing the right tool depends heavily on the total database size and how frequently the source data changes:

• Database Migration Service (DMS) provides low-downtime, fully managed migrations for supported relational engines.
• Striim delivers real-time, in-memory data integration for continuous synchronization.
• Debezium captures change events at the source database level using open-source, distributed change data capture.

Backup and Recovery Solutions

Constructing resilient backup and recovery solutions involves organizing data using tiered storage to balance recovery speed against storage costs. Google Cloud provides several Cloud Storage classes tailored to how often backup files must be accessed:

• Nearline is ideal for backup data accessed less than once a month.
• Coldline fits backups accessed less than once a quarter.
• Archive provides the lowest-cost storage for long-term disaster recovery logs accessed less than once a year.

When disaster recovery is triggered, the recovery sequence follows a strict order of operations. Administrators restore the latest full backup file first, and then they replay the remaining transaction logs to minimize data loss and meet the target Recovery Point Objective (RPO).
