Supporting the Application Design
Deployment Strategies and Application Lifecycle
To move applications smoothly from development to production, teams use automated pipelines. Cloud Build executes the build process to package code and produce deployment artifacts like container images. These artifacts are then stored in the Artifact Registry, which manages their complete lifecycle. Finally, Cloud Deploy automates the delivery of these packages to target environments in a specific, controlled sequence.
Choosing the right deployment target depends on how much infrastructure management a team wants to handle. For complex, containerized workloads that require container orchestration, choose Google Kubernetes Engine (GKE). If you prefer a serverless environment that scales containerized apps automatically, Cloud Run is the ideal choice. For standard web applications that require a fully managed platform with minimal operational overhead, choose App Engine.
To minimize the risk of downtime during application updates, organizations use progressive rollout patterns. A canary deployment releases updates to a small group of users first to test stability, while a blue-green deployment maintains two identical environments and switches traffic instantly between them. For automated recovery at the virtual machine level, autohealing monitors system health to recreate failing instances automatically. If a wider zonal or regional outage occurs, Cloud Load Balancing redirects incoming traffic to healthy instances in remaining regions.
Disaster recovery planning relies on setting clear goals for restoring services and protecting data. The Recovery Time Objective (RTO) sets the maximum acceptable time to get the system back online, while the Recovery Point Objective (RPO) defines the maximum amount of data loss the application can tolerate. In an active/passive recovery setup, a standby environment mirrors the primary environment to take over during an outage. Even the CI/CD pipeline itself needs a backup strategy to ensure deployment updates can continue during a disaster.
Event-Driven and Asynchronous Architectures
Event-driven architectures rely on asynchronous synchronization to send data updates between systems with a slight delay. This pattern decouples system components, which ensures that one service can continue to work even if another fails. By reducing these direct dependencies, developers improve the overall fault tolerance of the application. This design makes the entire cloud infrastructure more resilient to unexpected network drops or service outages.
When databases use asynchronous replication across locations, data can occasionally be modified in two places at the same time. To prevent data corruption, developers must establish a conflict resolution strategy to determine which update is correct. This strategy is critical for managing distributed services where data must eventually match across all deployment locations. Proper conflict handling ensures that information remains consistent and reliable across multiple clouds.
During peak traffic periods, organizations can use cloud bursting to dynamically scale their computing capacity. This strategy temporarily shifts heavy workloads to a secondary cloud environment to handle sudden spikes in demand. It relies on partitioned data to keep information organized and performing well during the transition. Using this approach helps handle more users, improves resource efficiency, and keeps performance fast for users worldwide.
API Management and Service Integration
Apigee and Cloud Endpoints act as a proxy layer that secures, versions, and exposes application interfaces. This facade shields backend systems from direct exposure and simplifies how external consumers access data. To prevent services from being overwhelmed by too many requests, Apigee uses traffic management policies. These include the SpikeArrest policy to stop sudden traffic surges and Quota policies to limit total usage, while access control is secured using OAuth 2.0 and API keys.

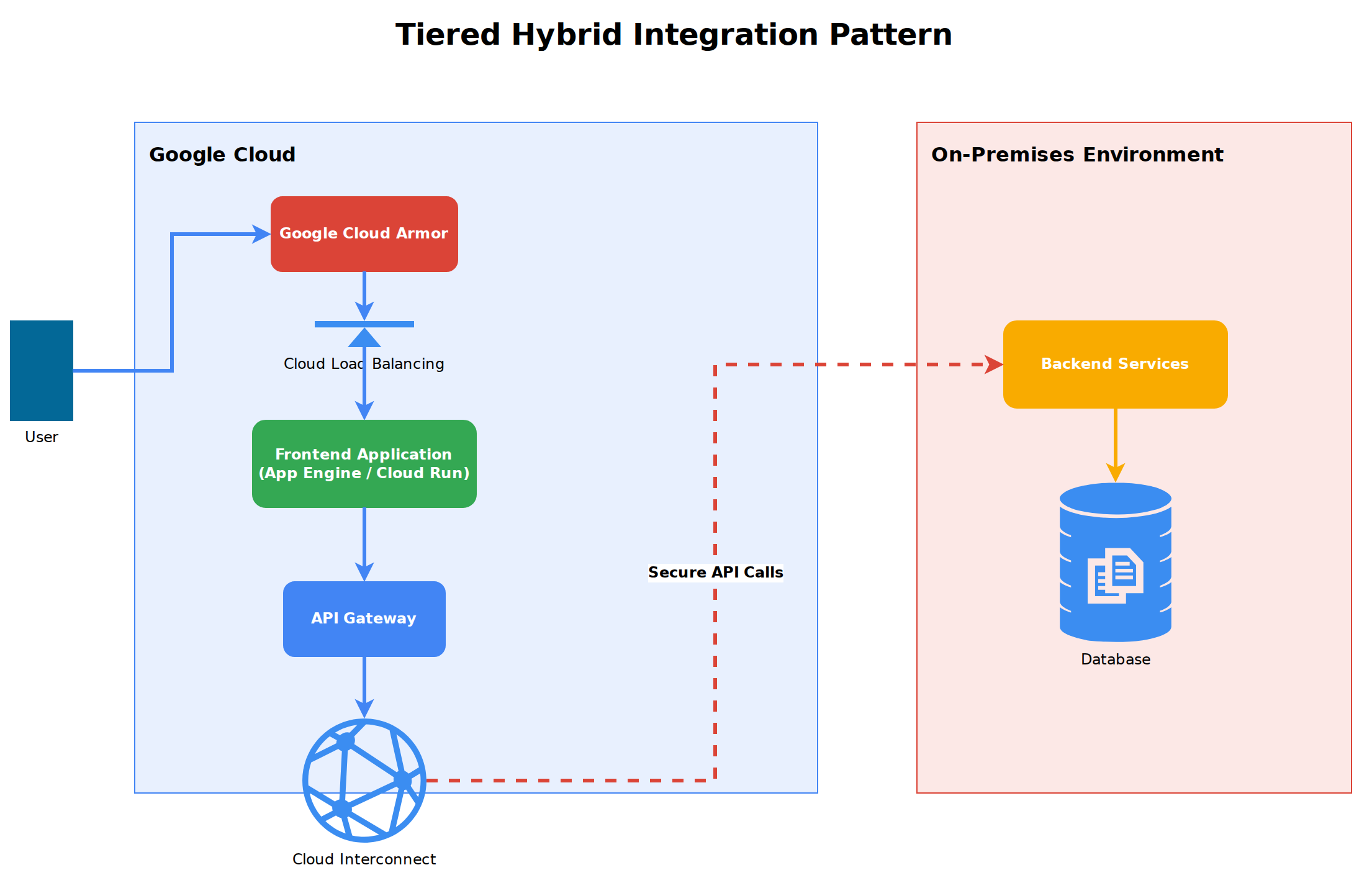

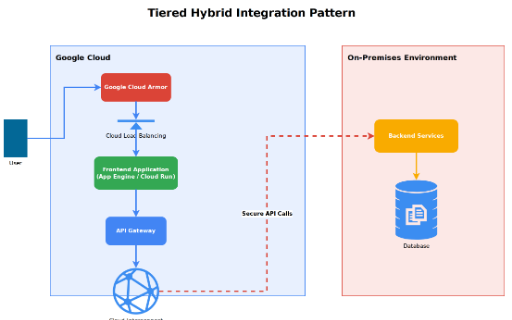

When integrating on-premises systems with the cloud, the tiered hybrid pattern hosts the frontend in Google Cloud and keeps the backend on-premises. An API gateway manages secure communication across this network boundary, allowing organizations to modernize their apps without moving all data at once. Perimeter security is further strengthened by integrating Google Cloud Armor to block common web threats like SQL injection. Internally, Cloud Service Mesh manages secure traffic flows directly between microservices, while Cloud Load Balancing distributes incoming traffic to maintain high performance.
