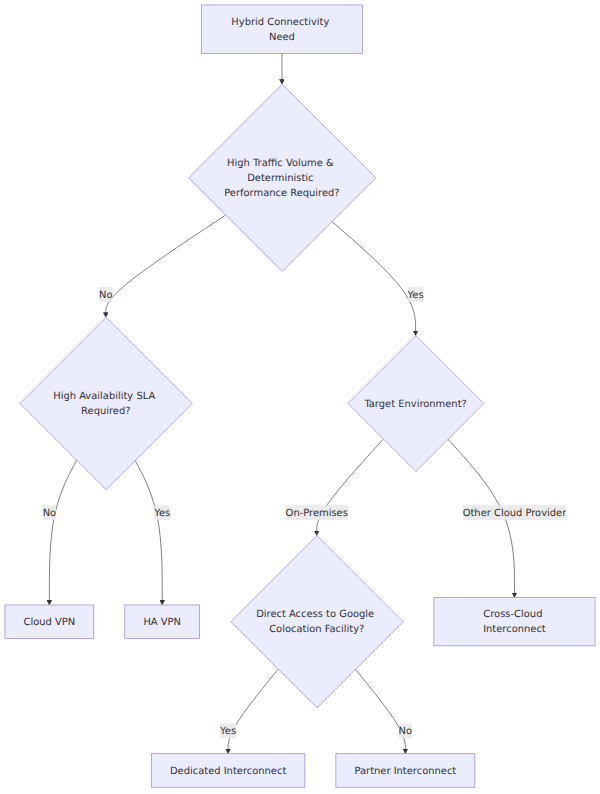

Cloud VPN creates a secure IPsec tunnel over the public internet and represents the easiest way to start connecting environments, particularly for lower-volume transfers. HA VPN improves on this by offering a 99.99% availability guarantee through multiple tunnels, though traffic still crosses the public internet and remains subject to its variability. This option works well when budget is a concern and absolute deterministic performance is not required.
For demanding workloads that need consistent performance, Cloud Interconnect provides a private physical connection that completely bypasses the public internet. Dedicated Interconnect offers a direct link between your network and Google's for very high bandwidth needs, while Partner Interconnect uses a service provider to reach Google when your organization cannot connect to a Google colocation facility directly. Both options deliver predictable performance and suit long-term deployments with significant data volumes.
Cross-Cloud Interconnect specifically links Google Cloud with other providers like AWS or Azure through managed high-bandwidth connectivity. This reduces the total cost of ownership by eliminating the need to manage physical hardware in remote data centers, making it ideal for enterprises moving large data volumes between cloud platforms.
Private Service Connect enables workloads to access Google APIs or internal services using internal IP addresses rather than public internet addresses. This keeps sensitive traffic private and strengthens the security posture. Architects should always implement encryption in transit through MACsec or TLS to protect data as it moves between environments. The Network Intelligence Center provides a unified console for monitoring and troubleshooting these complex hybrid connections.
Differentiate Synchronous and Asynchronous Integration Patterns
Systems communicate either synchronously or asynchronously, and choosing correctly directly affects how well applications handle failures and traffic spikes. Synchronous integration involves real-time communication where the sender waits for a response before continuing, which creates tight dependencies between systems. If an external service becomes unresponsive, the calling system stalls until it recovers.
Apigee serves as an API management platform that acts as a facade, providing a single entry point that shields client applications from the complexity of backend services. This approach unifies security across diverse external environments by implementing consistent policies like OAuth 2.0 at the gateway level. Apigee also maintains audit trails and manages traffic flow, while protecting client apps from needing updates when backend code changes.
Pub/Sub enables asynchronous messaging that decouples system components, allowing them to operate independently without waiting for immediate responses. When a system publishes a message to a topic, it continues processing rather than blocking. Subscribers consume messages when ready, which maintains reliability during traffic spikes or temporary network outages. This pattern prevents a single failing component from cascading failures throughout the system.
Private Service Connect provides private connectivity to keep sensitive data off the public internet when integrating with external or on-premises systems. Architects should minimize synchronous calls between different environments because these create performance bottlenecks when network latency increases. The right mix of synchronous and asynchronous patterns ensures the infrastructure meets both business requirements and technical performance goals.
