with On-Premises and Multicloud Environments
Cross-Cloud Data and Identity Integration
Organizations often need to work with data spread across multiple cloud providers, and Google Cloud provides tools to handle this without moving data unnecessarily. BigQuery Omni lets teams run queries on data stored in Amazon S3 or Azure Blob Storage directly, so the analysis happens where the data already lives rather than requiring a costly transfer. For larger migrations, the Storage Transfer Service handles automated movement from AWS or Azure, while the Transfer Appliance provides an offline hardware option when internet transfer is impractical.
Connecting cloud environments securely requires dedicated physical links and multiple encryption layers. Cross-Cloud Interconnect creates a high-speed dedicated connection between Google Cloud and other providers, working alongside VPN tunnels for internet-based paths and MACsec for hardware-level encryption on dedicated links. Workload Identity Federation enables external services from AWS or Azure to access Google Cloud resources without storing long-lived service account keys, maintaining security across all environments.
Hybrid Connectivity Solutions
Google Cloud offers several ways to connect on-premises data centers to the cloud, each suited to different organizational needs. Dedicated Interconnect provides a direct physical link between your local network and Google's network, requiring a colocation facility with a Google point of presence and a Letter of Authorization and Connecting Facility Assignment (LOA-CFA). When direct Google locations are unreachable, Partner Interconnect connects through a supported service provider using a pairing key that establishes the connection without exposing private project details.
Traffic between environments relies on Cloud Router running Border Gateway Protocol (BGP) sessions, which automatically update routes when network conditions change. For 99.99% availability, architects use multiple VLAN attachments across different edge availability domains and can add HA VPN over Cloud Interconnect to encrypt traffic across the physical connection.
Workload Portability and Unified Management
GKE Enterprise enables workload portability by running containerized applications across on-premises and multicloud environments using Kubernetes as a common runtime layer. Fleet management groups multiple Kubernetes clusters together for centralized management, allowing administrators to use Policy Controller to enforce security rules globally. This approach provides operational efficiency through automated tasks, scalability by moving workloads between environments, and consistency in applying security policies everywhere.
A service mesh like Cloud Service Mesh provides consistent protection across distributed resources by enabling mutual TLS for secure microservice communication, creating a zero trust architecture where every service verifies identity before communicating.
Cloud-Native Networking
Traffic Management and Security Perimeters
Virtual Private Cloud (VPC) networks provide the foundation for cloud-native networking by isolating resources within a private, isolated network partition. Organizations typically use Shared VPC for each environment to keep traffic separate while allowing centralized management of subnets and firewalls. A Transit VPC handles external connections and routing policies for the entire network, while a hub-and-spoke topology links multiple spoke VPCs to a central hub for shared services.
Cloud Load Balancing optimizes global traffic distribution by directing users to the closest healthy backend. The Global External Application Load Balancer uses an anycast IP for low-latency access across multiple regions, while the Network Load Balancer handles high-performance Layer 4 balancing for TCP or UDP traffic. Google Cloud Armor provides Web Application Firewall protection against DDoS attacks and filters traffic based on Layer 7 attributes, and Hierarchical Firewall Policies enforce rules across the entire organization.
Modern Service Connectivity and Container Networking
GKE networking builds directly on VPC infrastructure rather than as a separate layer. VPC-native clusters use Alias IP ranges to give every Pod a unique, routable IP address within the VPC, allowing Pods to communicate across different nodes without complex address translation. Container-native load balancing uses Network Endpoint Groups (NEGs) to route traffic directly to Pod IPs, reducing latency and improving performance.
Private Service Connect enables secure private communication between different VPC networks using a producer-consumer model where services are accessed through private endpoints without requiring VPC Network Peering. This keeps all traffic within the Google backbone network and supports zero trust architecture. Additional security components include VPC Service Controls to prevent data exfiltration, Cloud Next Generation Firewall for deep packet inspection, Identity-Aware Proxy (IAP) for identity verification, and VPC Flow Logs for monitoring network traffic.
VPC Architecture and Enterprise Connectivity
When designing large organizations, Shared VPC allows a central host project to share network resources with multiple service projects, maintaining infrastructure control while letting developers focus on applications. VPC Network Peering enables two VPCs to communicate with low latency but is non-transitive, while the Network Connectivity Center manages complex hub-and-spoke models across many spokes.
Connecting to on-premises data centers uses either Cloud Interconnect for physical high-speed connections or HA VPN for encrypted tunnels over the public internet. Both rely on Cloud Router for dynamic routing via BGP to automatically update network paths.
Choosing Data Processing Solutions
Real-Time and Event-Driven Architectures
Pub/Sub is an asynchronous messaging service that allows system components to communicate without direct connections. Publishers send events to a topic while subscribers pull messages for processing, decoupling services so one part of the system continues working even if another fails. Cloud Pub/Sub serves as the primary entry point for ingesting user interactions or server events at scale, sending data to Dataflow for low-latency transformations that enable immediate business insights.
Architects choose between Dataflow and Cloud Functions based on processing complexity. Dataflow runs Apache Beam jobs for both batch and streaming data with exactly-once processing, while Cloud Functions handles small code snippets triggered by specific events. Many organizations migrate from self-hosted Apache Kafka to Pub/Sub to eliminate infrastructure management overhead, since Google handles scaling and disaster recovery automatically. Using schemas within Pub/Sub ensures messages follow structured formats like Avro or Protobuf, preventing errors during later processing.
ETL (Extract, Transform, Load) modifies data before reaching its destination, useful for cleaning complex or sensitive information. ELT (Extract, Load, Transform) loads data in raw form first, using the destination system's power for later processing. BigQuery excels at ELT with its massively parallel processing architecture, separating compute from storage to allow scaling without managing hardware.
For ETL tasks, Dataflow handles both batch and streaming data serverlessly, Dataproc runs managed Apache Spark or Hadoop clusters, and Cloud Data Fusion provides a graphical interface for building pipelines without code. Cloud Dataprep offers visual data exploration for quick pattern identification and error fixing. The BigQuery Data Transfer Service automates regular data movement from other cloud providers or applications, reducing human error and saving engineering time.
Managed vs. Serverless Processing Models
Managed cluster-based services like Cloud Dataproc require configuring and monitoring virtual machine groups, ideal for organizations with existing Hadoop or Spark ecosystems. Serverless models like Cloud Dataflow remove server management entirely, automatically handling performance, scaling, and availability. Cloud Data Fusion builds pipelines visually but executes them as Apache Spark jobs on Dataproc clusters.
For embarrassingly parallel tasks, Cloud Dataflow is highly efficient due to autoscaling and dynamic work rebalancing. For tightly coupled high-performance computing tasks, a managed cluster with a parallel file system may be necessary. The choice depends on balancing existing technical requirements with desired automation levels.
Choosing Appropriate Storage Types
Object storage serves as the primary choice for most cloud workloads, with Cloud Storage offering scalable, durable storage for files, images, backups, and data lakes. Organizations choose storage classes based on access frequency: Standard for frequent access, Nearline for monthly access, Coldline for quarterly access, and Archive for yearly access. For structured data requiring SQL queries and transactions, Cloud SQL provides managed relational databases supporting PostgreSQL, MySQL, and SQL Server, while Cloud Spanner offers globally distributed relational databases with horizontal scaling.
For analytical workloads, BigQuery serves as a serverless data warehouse with separate compute and storage that scales automatically. Firestore and Datastore handle NoSQL document databases, with Firestore for mobile and web applications and Datastore for scalable NoSQL needs. Bigtable provides high-throughput NoSQL for large analytical and operational workloads, while Memorystore offers Redis and Memcached for in-memory caching to reduce latency.
File-based storage includes Filestore for managed Network File System (NFS) workloads requiring traditional file access patterns, and Cloud Storage FUSE for mounting Cloud Storage buckets as file systems. Hyperdisk offers high-performance block storage for databases and applications requiring low-latency storage.
Google Kubernetes Engine (GKE)
GKE provides a managed Kubernetes service for containerized applications requiring orchestration, automatic scaling, and high availability. It suits applications needing fine-grained control over deployment, scaling, and management, along with those migrating from on-premises Kubernetes clusters. GKE offers both Autopilot mode, where Google manages the underlying infrastructure, and Standard mode for user-controlled node management.
Cloud Run
Cloud Run is a serverless compute platform that runs containers stateless, automatically scaling from zero to handle requests and scaling to zero when idle. It suits request-driven workloads, event-driven applications, and teams wanting to deploy containers without managing infrastructure. Cloud Run simplifies operations by handling scaling, load balancing, and infrastructure automatically.
Cloud Run Functions
Cloud Run Functions is an event-driven serverless compute service that runs small code snippets in response to events from over 90 Google Cloud services. It suits lightweight tasks like data processing, webhooks, and simple API endpoints where managing containers is unnecessary. Functions scale automatically based on invocation count, with no cost when not running.

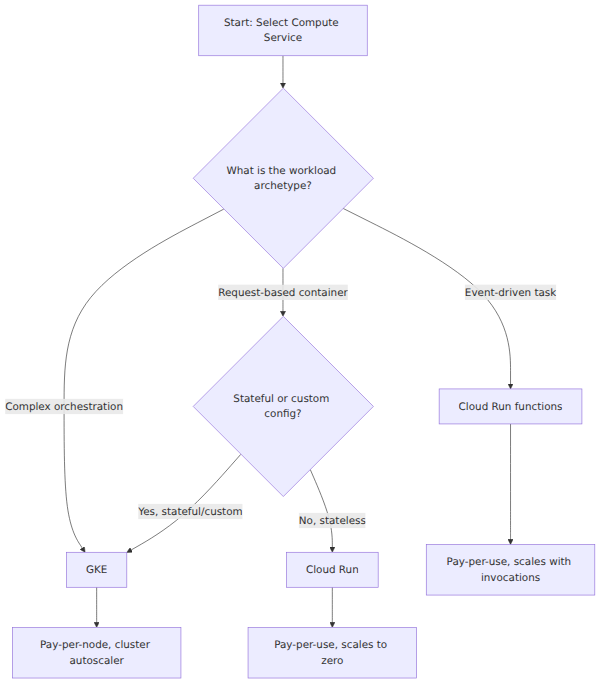

Choosing among these depends on workload requirements: GKE for complex orchestration and custom infrastructure needs, Cloud Run for containerized request-driven workloads wanting serverless simplicity, and Cloud Run Functions for event-driven lightweight processing.
