Analyze Real-Time and Event-Driven Architectures
Pub/Sub is an asynchronous and scalable messaging service that allows different parts of a system to communicate without being directly connected. In an event-driven architecture, publishers send events to a topic, while subscribers pull those messages for processing at their own pace. This setup is essential because it decouples services, ensuring that one part of the system can continue working even if another part is busy or fails.
For real-time data, Cloud Pub/Sub acts as the primary entry point for ingesting user interactions or server events at a massive scale. Once data is captured, it is often sent to Dataflow for low-latency transformations, which allows businesses to gain immediate insights from their data streams. Key benefits of using these managed services include operational efficiency through automation, automatic scalability to handle traffic bursts, and high reliability from multi-region message storage.
When designing these pipelines, architects must choose between Dataflow and Cloud Functions based on the complexity of the processing required. Dataflow is a fully managed service for running Apache Beam jobs that handles both batch and streaming data with high performance and "exactly-once" processing. In contrast, Cloud Functions are better suited for executing small snippets of code in response to specific events, such as triggering an alert when a single message arrives in a topic.
Many organizations choose to migrate from self-hosted tools like Apache Kafka to Pub/Sub to eliminate the overhead of managing complex infrastructure. Unlike Kafka, which requires manual patching and capacity planning, Pub/Sub is a global service managed by Google that handles scaling and disaster recovery automatically. This shift allows teams to focus on designing optimal data flows rather than maintaining virtual machines or physical hardware.
To ensure high data quality, architects use schemas within Pub/Sub to guarantee that all messages follow a specific format, such as Avro or Protobuf. Using these structured formats helps prevent errors when the data is later processed by Dataflow or stored in BigQuery. Selecting the right data processing solution ensures the final architecture is robust, secure, and capable of delivering real-time value to the organization.
ETL (Extract, Transform, and Load) and ELT (Extract, Load, and Transform) are the two primary patterns used to move data into a cloud warehouse. In an ETL pipeline, data is modified before it reaches its destination, which is useful for cleaning complex or sensitive information. Conversely, ELT allows data to be loaded in its raw form first, using the power of the destination system to handle the processing later. Choosing the right pattern depends on the size of the data and the specific technical requirements of the business.
BigQuery is a highly effective tool for the ELT pattern because it uses a massively parallel processing architecture to run SQL queries very quickly. By separating compute resources from storage, it allows users to scale their data operations without needing to manage any physical hardware. This separation ensures that high-performance processing can happen directly on the stored data without slowing down other tasks, making it the most efficient choice for teams that want to use standard SQL for data cleaning and analysis.
When data must be cleaned or changed before it is stored, Google Cloud offers several ETL tools to handle the work. Dataflow is a serverless service that handles both batch and streaming data. Dataproc is a managed service used to run Apache Spark or Hadoop clusters. Cloud Data Fusion is a graphical tool used to build data pipelines without writing code. These tools help maintain operational efficiency by reducing the manual effort required to manage servers and infrastructure.
For teams that need to understand their data quickly, Cloud Dataprep provides a visual data exploration interface. It allows users to see patterns and fix errors in their datasets through a simple point-and-click menu instead of writing complex scripts. This tool is excellent for minimizing operational overhead because it automates the difficult steps of preparing data for analysis and integrates seamlessly with other services to ensure smooth data flow.
Automation is a vital part of making data migration and processing more efficient for a cloud architect. The BigQuery Data Transfer Service can automatically move data from other cloud providers or applications on a regular schedule. Using managed services reduces the risk of human error and saves a significant amount of time for the engineering team, allowing the organization to focus on getting valuable insights from their data rather than fixing broken pipelines.

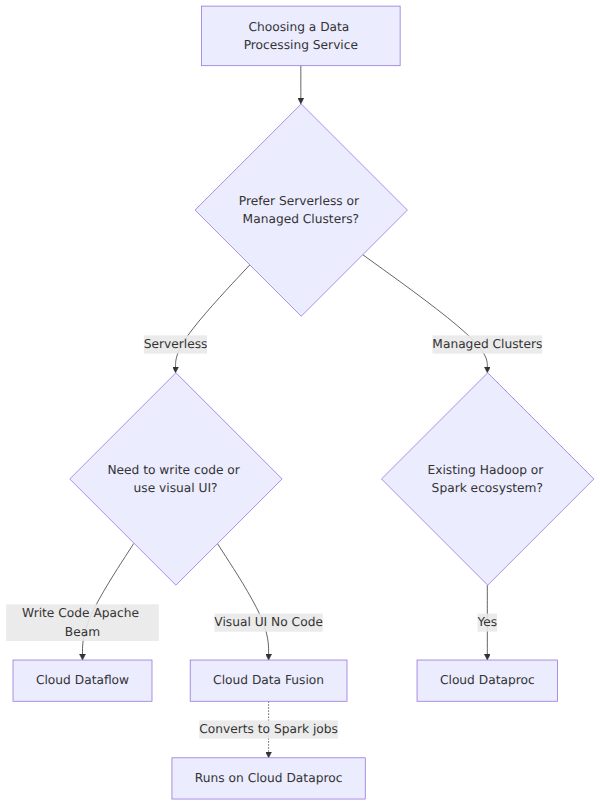

Evaluate Managed vs. Serverless Processing Models
Choosing the right data processing tool depends on whether you want to manage infrastructure. Managed cluster-based services like Cloud Dataproc require you to configure and monitor virtual machine groups. In contrast, serverless processing models like Cloud Dataflow remove the need to manage servers entirely. Architects must decide between these models based on existing code, cost, and operational effort.
