Associate Data Practitioner

Section 3: Data Pipeline Orchestration

3.1 Design and implement simple data pipelines

A data pipeline moves data from a source system to a destination where it can be analyzed or stored. Designing a simple pipeline starts with identifying the source (such as Cloud Storage, Cloud Pub/Sub, or a database), the processing step (cleaning, transforming, or aggregating the data), and the sink (like BigQuery for analytics or Cloud Storage for archiving). For example, raw log files arrive in Cloud Storage, a Cloud Dataflow job reads them, transforms the data into a structured format, and writes the result to BigQuery. The pipeline is considered simple when the processing logic fits in a single job and the data flows in one direction without branching.

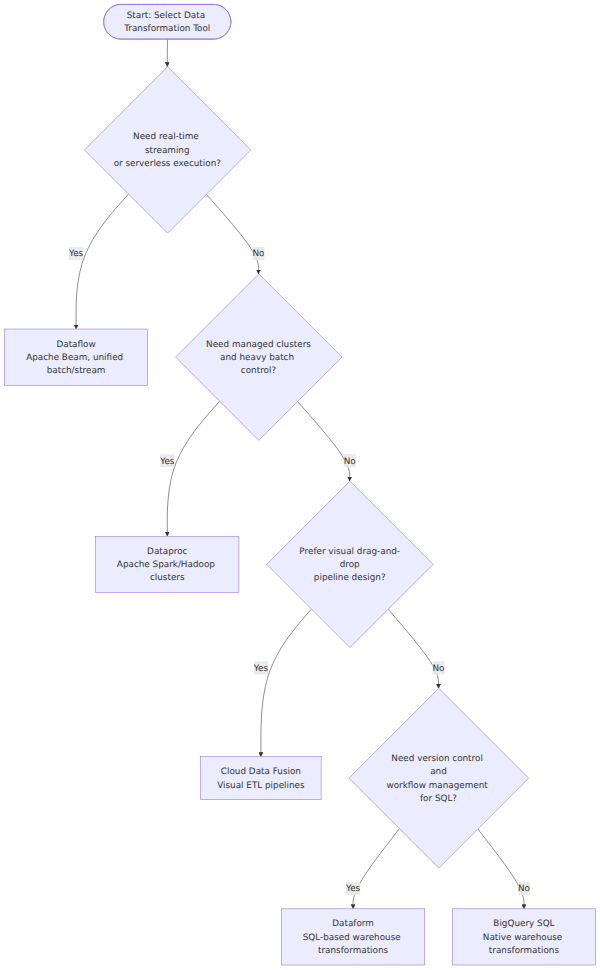

Implementation choices depend on the team’s skill set and the pipeline’s requirements. Cloud Data Fusion provides a drag-and-drop interface that lets users build pipelines without writing code, making it a good fit for teams that want visual design. Cloud Dataproc runs Apache Spark and Hadoop jobs on managed clusters, which works when the team already has Spark code or needs to process terabytes of data. For event-driven scenarios, Cloud Functions can trigger a pipeline each time a new file appears in Cloud Storage, creating a lightweight serverless pipeline. The key relationship is that the processing service depends on the source to provide data and on the sink to accept the output, so the pipeline designer must confirm that the sink exists before the job runs.

3.2 Schedule, automate, and monitor basic data processing tasks

Once a pipeline is built, it must run on a predictable schedule or respond to events. Cloud Scheduler is a cron-based service that fires HTTP requests or Pub/Sub messages at a fixed time, such as every hour. When the scheduler triggers a Cloud Composer DAG (a Directed Acyclic Graph written in Python), Composer coordinates a series of tasks: it starts a Dataproc cluster, submits a Spark job, waits for it to finish, and then deletes the cluster. Automating this way ensures that the pipeline runs without human intervention and that tasks depend on each other in the correct order—for instance, the cleanup step must wait until after the data is loaded.

Monitoring the pipeline is as important as building it. Cloud Monitoring collects metrics such as job duration, error counts, and resource usage. You can set up alerting policies that send an email or a Slack message when a job fails or takes longer than expected. Cloud Logging captures detailed logs from each pipeline component, so when a failure happens you can search for error messages to find the root cause. The lifecycle of a pipeline task moves from pending (waiting for dependencies) to running to success or failed, and the monitoring tools expose these states in dashboards. Together, scheduling, automation, and monitoring turn a one-time script into a reliable, self-healing data operation.
