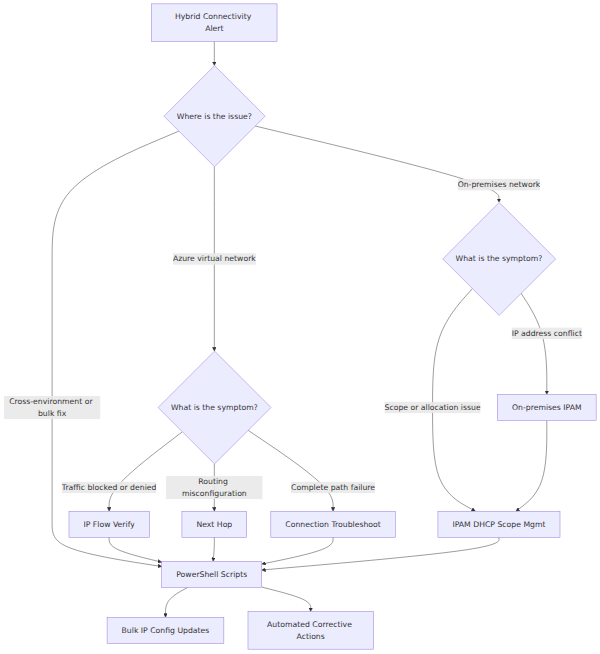

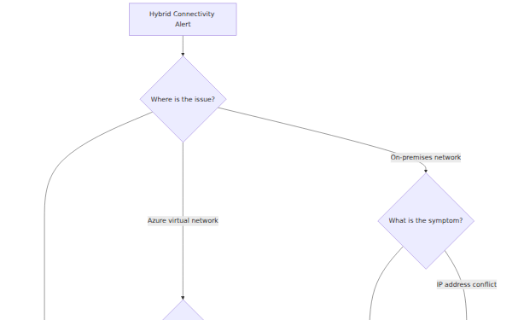

An on-premises IPAM tool acts as a central coordinator by tracking how IP addresses are allocated across local subnets and Azure virtual networks. When IPAM detects an IP address conflict, where two devices on the hybrid network claim the same address, it shows which subnet or scope is affected. This insight allows administrators to modify local DHCP scopes to prevent overlapping addresses with Azure address spaces. Keeping these address boundaries distinct ensures that both environments can communicate without routing overlap.
Administrators use PowerShell to automate diagnostic and remediation workflows across complex hybrid environments. Custom PowerShell scripts can perform bulk updates to subnet masks, default gateways, and network interfaces on multiple servers simultaneously. These scripts can scan the hybrid environment for duplicate addresses, missing routes, or misconfigured scopes. If a conflict is found, PowerShell can automatically adjust DHCP configurations to restore proper traffic flow between locations.
Create and manage DHCP scopes
A DHCP scope defines the specific range of IP addresses that a DHCP server can distribute to client devices. When creating a scope, you set a starting address and an ending address to establish the primary address pool. You can define exclusion pools within this range to prevent the server from dynamically assigning those addresses to normal clients. This setup protects the IP addresses reserved for network hardware, and you can also create individual reservations for specific devices using their MAC addresses.
When deploying resources in Azure, you often need to allocate static CIDRs from an on-premises or cloud-managed address pool. A Classless Inter-Domain Routing (CIDR) block represents a range of addresses using a standard suffix notation to define the subnet size. To allocate a static range, you navigate to your IP address pool in the Azure portal, choose the allocation option, and define the CIDR block details. This action reserves the specified block, ensuring those addresses are not assigned dynamically to other cloud resources.
After defining your scopes and allocating address blocks, you must monitor address utilization to prevent exhaustion. Azure provides allocation statistics that show total pool sizes, active allocations, and remaining capacities across your hybrid space. To secure these configurations, you configure role-based access control (RBAC) through Azure's identity and access management settings. Assigning specific roles, such as the IPAM Pool User role, ensures that only authorized administrators can modify scopes, adjust reservations, or change allocation pools.
Create and manage IP reservations
Creating and managing IP reservations ensures that critical devices always receive the same IP address whenever they connect to the network. On-premises, this process requires mapping a client's physical MAC address to a specific IP address within the DHCP server database. Once a reservation is active, the DHCP server bypasses dynamic assignment for that address and holds it exclusively for the designated host. This configuration is essential for local infrastructure components like domain controllers, print servers, and database servers.
In hybrid environments, IP reservation extends to cloud resources to maintain consistent connectivity across network boundaries. When configuring virtual machines in Azure, administrators can set a static private IP address within the virtual network subnet settings. This reservation ensures that the cloud virtual machine keeps its IP address even through restarts or reallocation events. Managing these reservations consistently across both on-premises DHCP scopes and Azure virtual networks prevents IP conflicts and routing issues.
Implement DHCP high availability
Implementing DHCP high availability is critical because a DHCP service failure stops client devices from obtaining IP addresses and communicating on the network. Administrators can achieve high availability on-premises by configuring DHCP failover or using split-scope designs. In a DHCP failover configuration, two DHCP servers replicate lease information and work together to serve the same subnet. If one server experiences an outage, the partner server immediately takes over address assignment without interrupting client connectivity.
Alternatively, a split-scope configuration divides an address pool between two independent DHCP servers, typically using an 80/20 distribution rule. The primary server manages the majority of the IP addresses, while the secondary server holds a smaller portion as a backup. While both methods provide redundancy, DHCP failover is generally preferred in modern Windows Server environments because the servers actively coordinate lease states in real-time. This real-time synchronization ensures that address states are consistent across the hybrid network and prevents duplicate address assignments.
