Integrate DNS with AD DS
What AD-Integrated Zones Are
You can integrate DNS with Active Directory Domain Services (AD DS) by creating AD-integrated zones. These zones store DNS data inside the Active Directory database. This integration provides security by using AD DS permissions, ensures records are automatically copied whenever AD replicates, and increases fault tolerance because the DNS data exists on multiple domain controllers.
Converting Zones and Setting Replication Scope
You start with a standard primary DNS zone and convert it to an AD-integrated zone using DNS Manager. A key decision is setting the replication scope, which controls how far the DNS data is copied. You can choose to replicate to all domain controllers in the local domain, the entire forest, or just a specific set. The right scope balances performance and availability needs for your network.
Implementing Secure Updates and Managing Records
For security, enable secure dynamic updates. This setting ensures only authenticated domain members, like your servers and workstations, can automatically register or update their DNS records, preventing unauthorized changes. Within these zones, you manage records normally, using forward lookup zones to find IP addresses from names and reverse lookup zones to find names from IP addresses.
Optimizing the Topology
Because DNS data now replicates through AD DS, the AD replication topology directly impacts DNS performance. The paths and schedules AD uses to copy data determine how quickly a new DNS record becomes available everywhere. Optimizing this topology, for example by ensuring efficient site links, is crucial for fast DNS resolution and high availability in your hybrid environment.
Create and manage DNS zones and records
Creating DNS Zones and Records
Azure DNS is a hosting service for DNS domains that provides scalable, high-availability name resolution. A DNS zone hosts records for a specific domain, like contoso.com. You configure an apex record at the root and set a Time-To-Live (TTL) value to control how long clients cache records. Azure DNS organizes entries into record sets, which are collections of records that share the same name and type.
Managing DNS Record Types
Azure DNS supports common record types. An A record maps a name to an IPv4 address, while an AAAA record maps to an IPv6 address. A CNAME record creates an alias, an MX record directs email traffic, and a TXT record holds text often used for verification. You manage these record sets using the Azure Portal, Azure PowerShell, or the Azure CLI. For high availability, you can add multiple IP addresses to a single record set, allowing clients to fail over if one address is unreachable.
Security Features for DNS Zones
To protect DNS, you use Azure Role-Based Access Control (RBAC) to grant specific permissions to users. Resource locks can prevent accidental deletion or modification of critical zones. Enabling DNSSEC adds cryptographic signatures to DNS responses, protecting against spoofing and cache-poisoning attacks.
Hybrid Name Resolution and Connectivity
For hybrid environments, you deploy private DNS zones to resolve hostnames within Azure virtual networks without exposing records to the internet. You configure virtual network links to connect these private zones to specific networks. To resolve names between Azure and on-premises, you use conditional forwarding to route queries for specific domains to designated local DNS servers.
Best Practices for DNS Administration
Maintain a healthy DNS infrastructure by regularly monitoring and updating records to prevent stale entries. Set appropriate TTL values to balance caching efficiency with the need for quick updates during failovers. For large organizations, zone delegation helps distribute administrative ownership by assigning responsibility for subdomains to different teams.
DNS forwarders are used when a local DNS server cannot resolve a query itself. It forwards the request to another designated server. In a hybrid setup, you configure your on-premises Windows Server DNS to forward unresolved queries to an Azure DNS Private Resolver or other external DNS servers. Setup involves ensuring your Azure private DNS zone is linked to your virtual network, configuring the virtual network's DNS settings, and then testing resolution with a tool like nslookup.
Implement Conditional Forwarders
A conditional forwarder is more specific, directing DNS queries only for certain domain namespaces to particular DNS servers. For example, you can set a rule so all queries for "contoso.com" are sent directly to a server that knows that domain. This makes resolution faster and more efficient. You configure this in Windows Server DNS Manager or by using PowerShell commands like Add-DnsServerConditionalForwarderZone.
Validate DNS Behavior
After configuring forwarders, you must test them. PowerShell cmdlets like Test-DnsServer check your forwarding settings, and Resolve-DnsName lets you perform a test query. If problems occur, examine the DNS event logs on your server, which record details about forwarding attempts and failures, essential for troubleshooting.
Troubleshooting
Common issues include a misconfiguration in the link between the Azure private DNS zone and the virtual network, or network connectivity problems like firewalls blocking DNS traffic on port 53. Errors in entering IP addresses for custom DNS settings or conditional forwarders will also cause failures. The validation steps using PowerShell and event logs are the main tools for identifying and fixing these problems.
Integrate Windows Server DNS with Azure Public DNS, Azure Private DNS, and Azure DNS Private Resolver
Virtual Network Setup
When Windows Server DNS runs in an Azure virtual network, it handles queries for local Active Directory domains and forwards unknown queries to Azure's built-in resolvers. This allows local virtual machines to resolve both cloud-based and on-premises resources. If you connect networks using an Azure VPN Gateway, you must add the special Azure DNS IP address 168.63.129.16 to your server configurations to ensure correct name resolution traffic flow across the hybrid connection.
Conditional Forwarding Rules
Conditional forwarding rules act as traffic directors. They send DNS requests to different destinations based on the domain suffix. Queries for external internet names are forwarded to Azure Public DNS. Queries for internal private cloud resources are routed to Azure Private DNS. This separation keeps internal network paths private while allowing safe internet access.

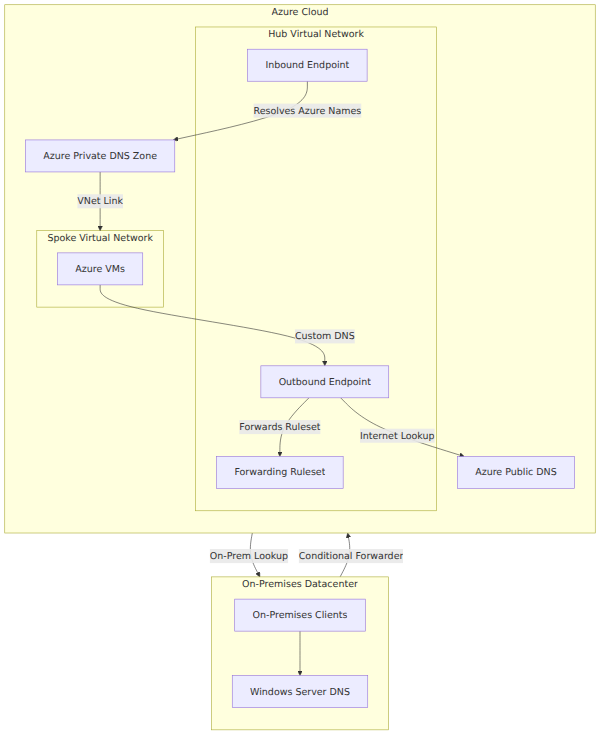

Azure DNS Private Resolver
The Azure DNS Private Resolver is a fully managed cloud service that simplifies hybrid name resolution. It provides high availability and scales dynamically, removing the need to build and maintain dedicated DNS virtual machines. By deploying inbound and outbound endpoints, it establishes a secure, low-latency pathway for DNS traffic between on-premises datacenters and Azure networks. This service reduces costs, ensures high availability, scales automatically, and provides a unified management point.
Practical Implementation
Implementing this hybrid DNS structure requires coordinating settings on both sides. Administrators first configure on-premises DNS servers with conditional forwarders pointing to Azure. Next, they deploy the Azure DNS Private Resolver and link its endpoints to the target virtual networks. Finally, testing query flows ensures that internal and external lookups reach their designated destinations quickly and securely.
Implement Windows Server DNS policies
Client subnet policies steer queries to the best server based on the client's location. The DNS server looks at the originating subnet and routes the query to a specific set of IP addresses, improving performance by directing users to nearby resources and balancing load.
Recursion policies control whether the DNS server performs recursive lookups for a client. You define which subnets are allowed to use recursion and which get only authoritative answers. This creates a security boundary in a hybrid environment: internal corporate clients can resolve external names, while external clients are blocked from using your server as an open resolver.
Response rate limiting protects the DNS server from abuse. When too many queries arrive from the same source, the policy drops or slows responses. This prevents the server from being overwhelmed during a DDoS attack or by a misconfigured client. Together, these policies create a layered defense: client subnet routing directs traffic efficiently, recursion scopes block unauthorized queries, and rate limiting preserves server resources.
Implement Domain Name System Security Extensions
What DNSSEC Does
DNSSEC adds security to DNS by ensuring the data you receive is authentic and untampered. It prevents attackers from redirecting users to malicious sites. A DNS server implementing DNSSEC attaches digital signatures to DNS records, and the receiving server validates these signatures before passing the information along, creating a verifiable chain of trust from the root DNS servers down through each domain.
Key DNSSEC Records
DNSSEC uses special record types. The DNSKEY record holds the public cryptographic key used to verify signatures. The RRSIG record contains the digital signature proving the DNS data is unmodified. The DS record sits in the parent zone and creates the link of trust between parent and child zones. The NSEC and NSEC3 records help prove that a requested DNS record does not exist, closing a security gap.
Zone Signing Keys and Key Signing Keys
DNSSEC uses two cryptographic keys. The Zone Signing Key (ZSK) signs all the regular DNS records in a zone. The Key Signing Key (KSK) signs the DNSKEY records themselves. Separating these keys makes management easier and reduces risk; the ZSK can be rotated more frequently without changing the more critical KSK. Both keys must be regularly rotated to maintain strong security.
Trust Anchors and Validation
A Trust Anchor is a pre-configured public key a DNS resolver already trusts. The resolver uses this anchor to validate the signature on the DNSKEY record, then uses that key to validate the signatures on the actual data. If any link in this chain is broken, the resolver fails the request. This validation happens automatically on supporting recursive DNS servers.
Implementing DNSSEC
To implement DNSSEC, an administrator first enables signing for the zone, which creates the necessary DNSKEY and RRSIG records. The system then publishes DS records to the parent zone to establish the chain of trust. For Azure DNS zones, this involves configuring the zone to sign records and adding the DS information to the domain registrar. Regular key rotation keeps the system secure.
