Configure Data Deduplication

Configure Windows Server storage

Configure Data Deduplication

Implement and Tune Data Deduplication

Data Deduplication is a Windows Server feature designed to save storage space. It works by finding and removing duplicate copies of the same data within files, storing only one unique copy and creating pointers to it. This process preserves the original files while significantly reducing the amount of physical disk space they use. In a hybrid environment, this is especially valuable because it lowers storage costs and can reduce the amount of data that needs to be transferred over the network.

...

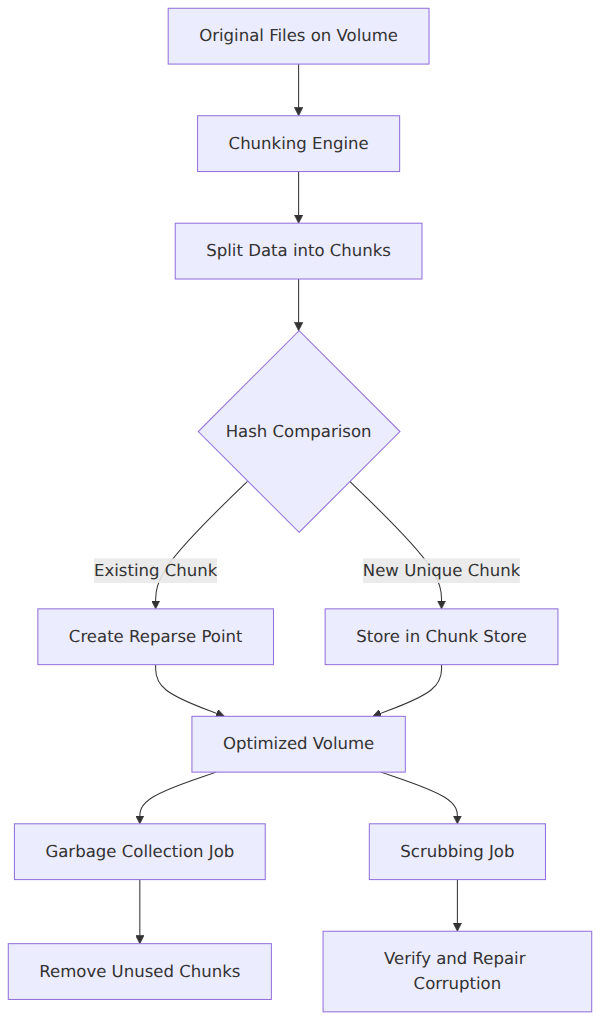

A system architecture diagram showing how files are split into chunks, compared against a chunk store, and either deduplicated via pointers or stored as new unique data.

You configure deduplication using either Server Manager or PowerShell. The key settings you define are called policies. These policies control which files are processed. Important policy settings include the file age threshold, which tells the system to only deduplicate files that are older than a certain number of days. You also set file size thresholds to include or exclude files based on their size, and you can create exclusions for specific folders or file types that should never be deduplicated. Using PowerShell commands like Enable-DedupVolume and Set-DedupVolume allows for automated and consistent setup across multiple servers.

After enabling the feature, Windows Server runs scheduled background jobs to perform the deduplication work. The main job is Optimization, which scans for new files to process. Two other important jobs run to maintain the system: Garbage Collection cleans up data chunks that are no longer needed, and Scrubbing checks for and repairs any data corruption in the deduplicated files. You can customize when these jobs run, typically scheduling them for off-peak hours to avoid impacting server performance. You can also control how much system resources they use by adjusting I/O throttling settings.

To ensure deduplication is working effectively, you must monitor its health and results. Windows Server provides built-in reporting tools in Server Manager that show you how much space has been saved, the status of recent jobs, and the overall health of the feature. For more detailed information and automation, you can use PowerShell cmdlets like Get-DedupStatus and Get-DedupVolume. Regularly checking these reports helps you verify that your policies are correct and that the system is achieving the expected storage savings without causing performance problems.

...
