Security and Lifecycle Considerations

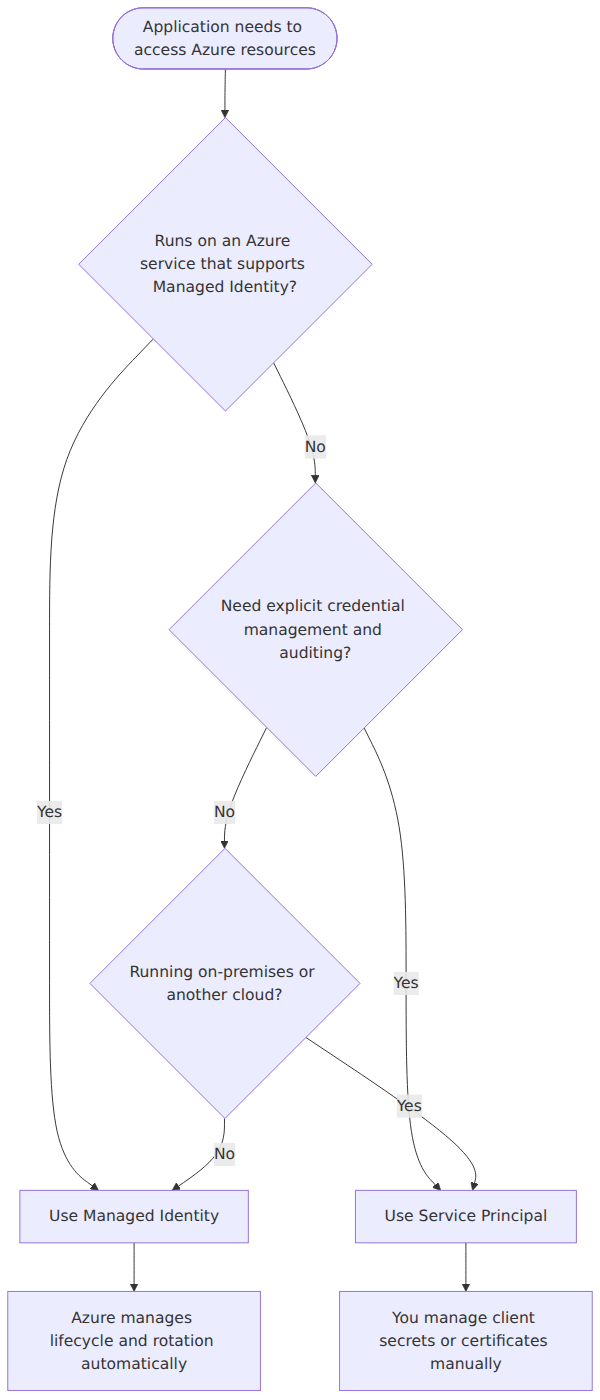

Managed Identities reduce the risk of credential leakage because the credentials never leave the Azure platform, and they disappear automatically when you delete the associated resource. Service Principals carry higher risk if secrets are hard-coded, stored in insecure locations, or forgotten during rotation. For DevOps solutions, prefer Managed Identities whenever possible and fall back to Service Principals only when the architecture requires it.
Implement and Manage GitHub Authentication
Authentication Methods for Azure Pipelines
Three main methods authenticate workflows between Azure Pipelines and GitHub. GitHub Apps are registered applications that integrate with GitHub using OAuth and have configurable permissions. The GITHUB_TOKEN is a short-lived, automatic token generated for each GitHub Actions workflow run, with permissions scoped to that specific workflow. Personal access tokens (PATs) are manually created by a user, grant access based on the user's permissions, and must be managed for long-term use. Choosing between them depends on whether you need a dedicated app integration, a temporary workflow token, or a persistent user credential.
Assigning Minimal Scopes and Permissions
For each authentication method, you must assign the least privilege necessary. For GitHub Apps, you select only the repository, organization, or project permissions the app requires to function. The GITHUB_TOKEN's permissions are automatically limited to the repository where the workflow runs, but you can further restrict its scopes within the workflow definition. When creating a personal access token, you explicitly choose scopes like repo or workflow, and you should select only the scopes needed for the pipeline's tasks to follow the security principle of least privilege.
Integrating Authentication into Azure DevOps
To use these GitHub credentials in Azure Pipelines, you create a service connection in Azure DevOps. For a GitHub App or a personal access token, you provide the authentication details to establish a connection from Azure DevOps to your GitHub repositories. The service connection securely stores a reference to the credential, allowing your pipelines to authenticate with GitHub for tasks like checking out code or posting status updates. The choice of credential type dictates how the service connection is configured and managed.
Secure Storage and Rotation
Sensitive credentials like personal access tokens must be stored securely, not in plain text within pipelines. Azure Key Vault is a service that provides secure secret storage; you can store a PAT there and reference it from your pipeline. For long-lived tokens, you should implement automated rotation, using scripts or scheduled tasks to generate new tokens and update the service connection or Key Vault before the old ones expire. Regular auditing of these authentication methods, checking who created tokens and what permissions they have, is essential for maintaining security and compliance with organizational policies.
Implement and Manage Azure DevOps Service Connections
Authentication and Identity Management
Managing identities centrally is the first line of defense in securing Azure DevOps. Organizations should use Microsoft Entra ID as the primary identity provider to manage user access and enforce security policies. This service allows administrators to control password complexity, enforce regular refreshes, and track identity ownership across the organization. Relying on a centralized identity system ensures that when a user leaves the company, their access is revoked instantly across all connected systems.
Multi-Factor Authentication and Access Control
Passwords alone are often not enough to secure sensitive development environments, making additional verification layers necessary. Implementing multi-factor authentication (MFA) requires users to provide two or more forms of evidence to prove their identity. Common methods include responding to a mobile phone notification or using physical smart cards during the login process. Configuring MFA through Microsoft Entra ID significantly reduces the risk of compromised credentials causing a security breach.
Managing Secrets and Tokens
Access to Azure DevOps resources is often granted using personal access tokens (PATs) and other temporary credentials, which must be carefully managed. Security teams should enforce strict expiration policies on these tokens and ensure they operate under the principle of least privilege. To protect local environments, organizations can use BitLocker to encrypt local drives and should disable legacy alternate credentials to minimize security vulnerabilities. Furthermore, sensitive application secrets should be stored in Azure Key Vault, where access is strictly logged and encryption keys are rotated on a regular schedule.
Continuous Monitoring and Compliance
Active monitoring through comprehensive audit logs is essential for detecting early signs of unauthorized activity or misconfiguration. These logs record detailed user actions within the DevOps environment, helping teams track down security issues and remain compliant with industry regulations. Security teams should forward these logs to Azure Monitor and integrate them with their security information and event management (SIEM) systems. This integration allows administrators to configure automated alerts that notify the security team of any unusual or unauthorized access attempts.
Least Privilege Management
A core principle of secure systems design is ensuring that users and automated services only have the specific permissions required to perform their jobs. Administrators can implement this by using role-based access control (RBAC) to assign permissions based on predefined job roles rather than to individual users. To manage highly sensitive accounts, organizations can utilize Privileged Identity Management (PIM) to grant elevated permissions dynamically and only for a limited time. Regularly auditing these roles and permissions ensures that temporary access is revoked and that no user retains unnecessary privileges.
Design and Implement Permissions and Roles in GitHub
Built-in Roles and Access Levels
GitHub provides built-in roles such as Owner, Admin, Maintainer, and Developer, each with distinct access levels. The Owner role gives full control over the organization, including sensitive settings, while Admin can manage repositories and their settings but cannot access organization-level administrative features. Maintainers maintain repositories without being able to delete them, and Developers contribute code without managing repository settings. Customizing these roles lets you assign the exact access needed for specific tasks, reducing the risk of unauthorized changes. Roles flow from the organization level down to individual repositories, so a user's effective permissions are the result of combining their organization role, team membership, and any direct repository invitations.
Branch Protection Rules
Branch protection rules enforce required approvals and checks before code merges into critical branches. You can require pull request reviews, enforce that specified status checks pass before merging, and restrict which users or teams can push to the branch. These rules interact with the pull request workflow: a pull request cannot be merged until all mandatory reviews are completed and every required status check (such as a CI build or security scan) reports success. This protects the branch from unauthorized or unverified changes and ensures that only code meeting the team's standards reaches the main branch.
Azure Active Directory Integration
Integrating Azure Active Directory (AAD) with GitHub centralizes identity management for the entire organization. When AAD is connected, users authenticate through AAD single sign-on (SSO) rather than using a separate GitHub account, making AAD the single source of truth for user identities. AAD conditional access policies can then control who may access GitHub resources and under what conditions—for example, requiring multi-factor authentication from outside the corporate network. This integration lets administrators validate that access policies align with organizational security and compliance standards, and it simplifies auditing by tying GitHub activity back to centrally managed identities.
Design and Implement Permissions and Security Groups in Azure DevOps
Least Privilege Roles
The idea of least privilege means giving users the smallest amount of access they need to do their job. For instance, a User Administrator can add and remove users but cannot change security policies, while an Identity Governance Administrator manages who has access to what across the organization. When you follow least privilege, you limit what happens if someone makes a mistake or if an account gets compromised. This principle is the foundation of good security design in Azure DevOps.
Custom Permission Levels
Azure DevOps comes with built-in permission levels, but you can also create custom ones to fit your team's needs. Custom permissions involve deciding what each role is allowed to do, assigning people to those roles at the right scope (organization, project, or individual resource), and checking assignments regularly to prevent privilege creep—where users accumulate more access over time than they need. Tools like Azure PowerShell help automate these assignments, especially for roles like Role Based Access Control Administrator. By tailoring permissions, you give teams flexibility while keeping tight control over sensitive areas.
Security Groups Management
Security groups in Azure DevOps let you manage access for many users at once rather than setting permissions for each person individually. To manage groups effectively, you assign licenses using roles like License Administrator or User Administrator, control who belongs to which group, and set permissions for the group as a whole. A key principle is deny by default, which means users cannot access anything unless a group explicitly grants them permission. This approach prevents accidental access and keeps your environment more secure.
Service Principals and Automation
Service principals are special accounts that applications and automation scripts use to access Azure resources safely. Instead of logging in with a real user's name and password, a service principal authenticates on its own, and its permissions can be tightly restricted. You create service principals through Azure Active Directory (Azure AD), and they are essential for CI/CD pipelines and other automated processes. Controlling what service principals can do is critical because they often run with elevated access behind the scenes.
Recommend Appropriate Access Levels
Azure DevOps Access Tiers
Azure DevOps provides different access levels for users, and you should choose the one that gives each person just enough permission to do their job. The Stakeholder level is for users who only need to view and track work items, like a project manager. The Basic access level is for team members who need full access to features like code, builds, and test plans. Users with a Visual Studio subscriber license get the same access as Basic, but this is included with their Visual Studio subscription. You evaluate a user's role and assign the lowest access tier that meets their needs, which follows the security principle of least privilege.
GitHub Outside Collaborator Scopes
When you need to give someone outside your organization access to a GitHub repository, you assign them an outside collaborator role. These roles define what they can do. The Read role lets a person view the repository's content and code. The Write role allows them to make changes, like creating branches and pushing code. The Admin role gives them full control, including managing repository settings and other collaborators. You analyze the external contributor's responsibilities and grant only the scope necessary, such as Read for a reviewer or Write for an active developer, to maintain security.
Service Principals and Identity Credentials
For automated processes, like those run by GitHub Actions, you use a service identity instead of a user account. You create a service principal in Azure for each application environment (like Dev, Test, or Prod). This service principal acts as an identity for the automation. To let GitHub Actions securely use this identity, you configure a federated identity credential. This credential creates a trust relationship between your GitHub repository and the Azure service principal, allowing secure, password-less authentication for your workflows.
Role Assignments
After creating a service principal, you must give it permissions to perform tasks in Azure. You do this by assigning Azure roles. For example, if the automation only needs to read resources, you would assign the Reader role. For tasks that involve deploying applications, you might assign a role like "Deployment Environments User" to the service principal for each specific environment. These role assignments control what the automated identity can do, ensuring it has the minimum required access.
GitHub Environment Configuration
In GitHub, you can organize your deployment stages using environments. You create separate environments with names like Dev, Test, and Prod. Each environment can have its own set of protection rules and secrets. You store sensitive information, like the AZURE_CLIENT_ID for your service principal, as a secret within the specific GitHub environment. This setup keeps credentials secure and ensures that your deployment workflows use the correct credentials for each stage, like test or production.
Azure AD Integration
Azure Active Directory (Azure AD) serves as the central identity provider for Azure DevOps. When you integrate Azure AD, you simplify user management by using the same credentials and policies that already exist in your organization. This integration enables consistent authentication, including password policies and multifactor authentication, across all Azure DevOps projects and teams.
Role-Based Access Control (RBAC)
Role-Based Access Control (RBAC) lets you control exactly who can do what in Azure DevOps. You assign roles such as Owner, Contributor, or Reader to users, groups, service principals, or managed identities. Permissions can be set at different scopes, from an entire organization down to a single project or pipeline, which helps you follow the principle of least privilege. When the built-in roles do not fit your needs, you can create custom roles that grant only the specific actions required.
Secure Access
To protect access further, you can enforce Conditional Access policies that require a device to be compliant or restrict sign-ins to certain locations. Two-factor authentication (2FA) adds an extra verification step, such as a phone call or app notification, making stolen passwords less dangerous. For devices that store critical data, BitLocker encrypts the entire drive so that even if the device is lost, the data remains unreadable.
Best Practices
Classify your data by sensitivity so that the most valuable information gets the strongest protection. Use Microsoft Entra ID to manage user access policies consistently across your organization. Avoid using basic authentication for Git tools because it is much less secure than modern methods. Finally, monitor your Azure DevOps environment regularly with tools like Microsoft Defender for Cloud to catch suspicious activity early. These practices ensure that only authorized users can access your projects and teams while meeting compliance requirements.
