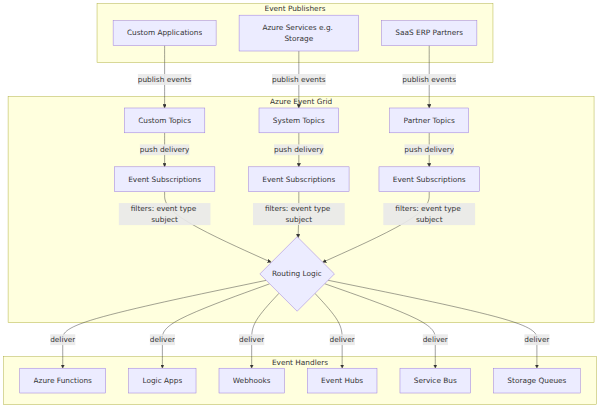

When creating topics, you can choose from:
- Custom topics for your own applications, supporting CloudEvents or Event Grid schema and push delivery.
- System topics generated by Azure services (like Storage or Service Bus), created implicitly when you subscribe.
- Namespace topics for MQTT routing, using a simplified filtering model.
- Partner topics for SaaS or ERP integrations via Partner Events.
To set up a custom topic in the Azure portal, select Event Grid Topics, click + Create, choose your Event Schema, and configure Data residency for regional or cross-geo replication.
To create an event subscription, follow these steps:
- Select the topic or namespace topic in the Azure portal and click Subscriptions > + Subscription.
- Choose push or pull delivery mode.
- Specify the endpoint type and URL, such as WebHook, Azure Function, Event Hubs, Service Bus queue/topic, or Storage Queue.
- Add filters on event types and context attributes (subject begins with/ends with) to optimize routing.
- Configure additional features like max delivery count, lock duration, and optional dead-lettering or managed identity for secure delivery.
After creation, you can manage and optimize your subscriptions by viewing details, updating filters, and deleting subscriptions. By combining filters, delivery modes, and managed identities, you ensure efficient, secure, and reliable event routing across your Azure and third-party services.
Analyze Event Schemas and Advanced Filtering Logic
Event schemas define the structure and metadata of events, ensuring consistent communication between systems. Azure Event Grid supports two primary schemas: the proprietary Event Grid schema and the open standard CloudEvents schema. The CloudEvents schema is preferred for its interoperability, extensibility, and standardization across platforms, aligning with the Cloud Native Computing Foundation (CNCF) specifications. It includes required attributes like id, source, specversion, and type, along with optional extensions for custom needs. In contrast, the Event Grid schema is a fixed format but remains supported for backward compatibility.
Event Grid enables advanced filtering to route events based on complex conditions, reducing unnecessary processing. Filters can be applied to event attributes such as subject, eventType, or custom data fields. For example, you can create filters that match patterns using prefixes, suffixes, or exact values. This allows precise control over event flow, ensuring only relevant events trigger downstream actions. Advanced filters support operators like "in," "not in," and "begins with," enabling granular routing decisions.
Understanding the differences between Event Grid and CloudEvents schemas is crucial for metadata consistency. CloudEvents uses a structured JSON format for HTTP payloads, while Event Grid schema relies on a proprietary format. When configuring topics, you can set the input and output schemas independently, but CloudEvents as input restricts output to CloudEvents due to its extensibility. Filtering logic must adapt to the schema in use, as attributes like subject or custom data fields may vary between schemas.
In practice, advanced filtering is applied through event subscriptions, where you define conditions to route events to handlers like Azure Functions or Logic Apps. For instance, filtering on data fields in CloudEvents allows routing based on application-specific criteria. This reduces overhead and improves efficiency in event-driven architectures, such as IoT telemetry ingestion or system integration scenarios. By leveraging schema standards and filtering, you ensure reliable and scalable event processing across distributed applications.
Implement Event Handlers and Processors
An event handler is the destination where an event is sent for processing. It takes action based on the event data. Azure Event Grid supports several Azure services as handlers, including Azure Functions, Azure Logic Apps, and webhooks. Event handlers can be hosted anywhere, but they must expose an HTTPS endpoint to receive events securely.
Event Grid can route events to various Azure services and custom endpoints. Key supported handlers include Azure Functions for serverless event processing with built-in triggers, Azure Logic Apps for orchestrating workflows in response to events, Webhooks for integration with any HTTPS endpoint, Event Hubs for ingesting high-volume event streams, Service Bus for reliable message queuing, and Storage Queues for durable event storage and processing.
When implementing event handlers, it is crucial to ensure reliability through retry policies, error handling, and idempotent processing. Event Grid uses exponential backoff for up to 24 hours to deliver events if the handler is unavailable. Handlers should return appropriate HTTP status codes (e.g., 200 OK for success) to acknowledge receipt, as non-2xx responses trigger retries. Design handlers to process the same event multiple times without unintended side effects, since Event Grid may deliver an event more than once.
Azure Functions and Logic Apps are commonly used to build event-driven solutions. Functions provide a serverless compute option, while Logic Apps offer a low-code workflow automation platform. Both can be configured as Event Grid triggers, simplifying the integration. For high throughput, enable batching on the event subscription to process multiple events in a single invocation, improving efficiency.
Event handlers must be secured to prevent unauthorized access. Use managed identities or Microsoft Entra ID for authentication when possible. For webhooks, validate the endpoint using a handshake process during subscription creation. Event Grid only supports HTTPS endpoints to ensure encrypted communication. Best practices include filtering events to reduce unnecessary processing, monitoring delivery with Azure Monitor, and designing handlers to scale for event bursts.
Design Event Schemas and Filtering Strategies
Azure Event Grid is a highly scalable service that manages the flow of events from publishers to subscribers. When designing a solution, you must choose an event schema, which is the standardized structure used to format event data. Event Grid natively supports two primary formats: the Event Grid schema and the CloudEvents v1.0 schema.
The Event Grid schema is a proprietary format that includes a set of required properties for every event. These properties include the topic, subject, id, and eventType, which help the system identify and route the message. Developers use the data object within this schema to store application-specific information that is unique to the event source.
The CloudEvents schema is an open specification designed to improve interoperability across different cloud providers and platforms. It provides a common way to describe event data, which allows for uniform tooling and standard handling of events. This schema is highly recommended for building cross-platform integrations where multiple systems need to consume the same data.
Filtering strategies are used to optimize event routing and ensure that subscribers only receive the specific events they need. You can implement basic filtering by using subject prefixes to match the beginning of the subject path, subject suffixes to match the end of the subject (often used to filter by file extensions), and event types to limit the subscription to specific actions such as resource creation or deletion.
Advanced filtering allows for more complex logic by evaluating values within the data object of the event. This helps reduce processing overhead by preventing unnecessary events from reaching the event handler. By combining multiple filter conditions, developers can create highly efficient architectures that only trigger code when specific business criteria are met.
