Manage Data Types and Serialization in Binding Operations

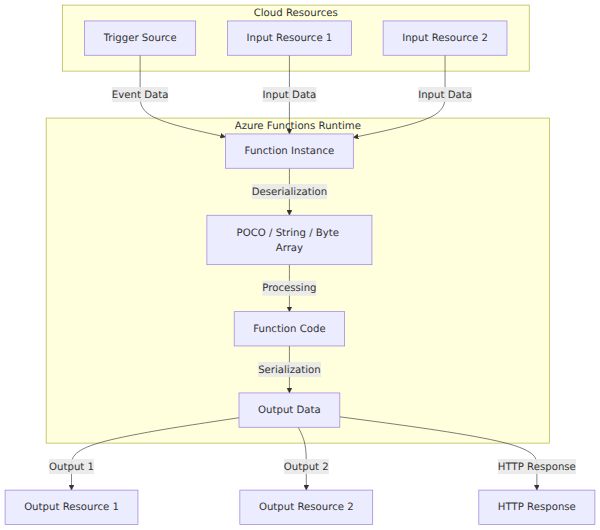

Understanding Triggers and Bindings
Azure Functions use triggers to start a function and bindings to connect to data services. An input binding brings data into the function, while an output binding sends data out. This setup lets developers easily move information between cloud resources without writing detailed connection code.
Mapping Data Types
When data flows through a binding, it must match a specific data type in the function's code. Common types include strings for text, byte arrays for binary data like images, and Plain Old CLR Objects (POCOs) for structured data. Using a POCO allows Azure to automatically translate complex data into a format the code can easily use, simplifying development.
Serialization and Compatibility
Serialization converts data into a storable format, often JSON. When a function uses a POCO, the Azure Functions runtime handles the deserialization automatically. This means developers don't need extra code to parse raw text into objects. Using standard formats like JSON ensures the data works across different services and programming languages.
For advanced scenarios, developers can use SDK types from Azure service libraries, like TableClient or CosmosClient. These types offer better performance and more features than simple POCOs but require specific versions of the Azure Functions Worker. The choice depends on whether the function needs simple data handling or deep control over the service interaction.
Managing Multiple Outputs
A single function can use multiple output bindings to send data to different destinations at once. Developers often create a custom return type that groups different data pieces together. Each property in this custom class is marked with a binding attribute, which tells Azure exactly where to send that piece of data, keeping the code organized while enabling complex integrations.
Applying Binding Expressions for Dynamic Paths
Binding expressions let you set values at runtime instead of hardcoding them. Wrapped in curly braces {}, they can reference trigger metadata, other bindings, or input data. For example, a Blob trigger path like sample-images/{filename} creates a filename expression that captures the actual blob name, which can then be used elsewhere in your function for dynamic routing.
Trigger metadata provides extra context about the event that started the function, such as a queue message's InsertionTime or Id. You can use these properties in your binding paths or code to make routing decisions. For instance, a Blob input binding could use a QueueTrigger metadata property to read a specific file based on the content of the queue message that triggered the function.
Utilizing App Settings for Configuration
For sensitive data like connection strings, it's best practice to use app settings, referenced with percent signs like %Environment%. This keeps secrets out of the source code and allows configuration to change between environments (e.g., Development vs. Production). The runtime pulls these values from environment variables or a local settings file during development.
Implementing Property Patterns for Routing
Property patterns use event properties to route data to specific locations. For example, a path like testContainerName/{date}-{filetype}.csv can save a file to a container named after the current date, automatically organizing data. This pattern enables efficient data management by structuring storage based on the properties of incoming events.
Setting Up Bindings
Azure Functions connect to services via declarative bindings. Each function has exactly one trigger but can have multiple input and output bindings. You configure these bindings in a function.json file or with language-specific annotations (like [QueueOutput] in C#). In the Azure portal, you manage bindings in the Integrate tab for a function.
Binding to Azure Services
Common bindings connect functions to services like Queue storage for message processing, Azure Cosmos DB for document queries and inserts, and Blob storage for reading and writing files. These bindings enable serverless data processing scenarios, such as reacting to new queue messages to update a database or using a Timer trigger to read a blob and write results to Cosmos DB.
Code Examples for Binding Patterns
Code examples show how bindings work with triggers. In C#, an HTTP-triggered function can return an HTTP response and a queue message by using a MultiResponse object decorated with output attributes. In Python, you can use the @queue_output decorator. These patterns allow a single function to seamlessly integrate with multiple Azure services, handling both input and output in a coordinated way.
