Alerts and Notifications
Azure Monitor alerts allow you to proactively identify and address issues by checking metrics or log data against conditions you define. You can set up alerts on any metric or log data source in the platform. When a metric crosses a threshold—such as CPU usage exceeding 90%—the alert triggers a notification, enabling you to respond before the problem affects users. This connection between metric interpretation and alerting is essential for maintaining resource availability.
Evaluate Metric Visualization and Aggregation Techniques
Aggregation Types
Aggregation combines multiple metric values into a single data point using specific logic. Azure Monitor supports Sum (total of all values), Average (mean, often calculated as Sum/Count), Min and Max (smallest or largest values), and Count (number of measurements). Choosing the correct aggregation type is critical because it determines how the data is summarized. For instance, Average smooths out spikes, while Max highlights worst‑case behavior. An administrator looking at disk I/O might use Average to see typical load but switch to Max to detect rare bursts.
Time Range and Granularity
The Time Range defines the total duration of data shown on a chart, while Time Granularity (or time grain) sets the interval used for each data point. A smaller granularity gives more detail but can produce a noisy chart; a larger granularity smooths fluctuations. The time brush feature lets you zoom into specific spikes or dips for root‑cause analysis. When you adjust the time range, you decide whether to view a short window for anomaly investigation or a longer window for trend evaluation.
Dimensions, Filtering, and Splitting
Dimensions are metadata categories that add context to a metric, such as the name of a server or the status code of a request. Filtering isolates a subset of data—for example, showing only throttled requests. Splitting displays separate lines for each dimension value, making it easy to compare individual instances within a group. By combining filtering and splitting, you can compare the performance of different virtual machines or API endpoints side by side on the same chart.
Advanced Visualization and Integration
Beyond basic charts, Workbooks and Dashboards combine metrics, logs, and traces into a unified view. Integration with Grafana and Power BI supports advanced business analytics and cross‑platform visualization. These tools help transform raw numerical data into actionable intelligence, allowing stakeholders to see performance trends and anomalies at a glance.
Diagnose Resource Health Using Metric Analysis
Selecting and Analyzing Metrics
To diagnose resource health, you first select relevant metrics that reflect the resource’s condition, such as CPU percentage, Disk IOPS, or Network In/Out. Then you aggregate values using Average, Sum, Minimum, or Maximum to understand overall trends or spot spikes. Adjusting time granularity lets you zoom in on short‑term anomalies or examine long‑term patterns. Finally, applying filters and splitting by dimensions (for example, region or operation type) helps you isolate outliers and compare segments.
Correlating Metrics with Logs

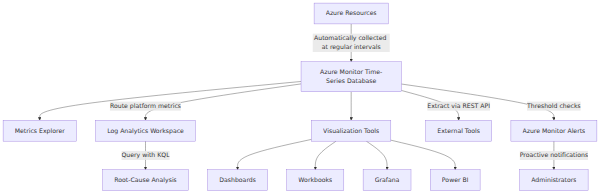

For deeper root‑cause analysis, you can use Log Analytics with the Kusto query language (KQL) to correlate metric data with log data. This combination allows you to trace a CPU spike to a specific code error or a network latency increase to a regional outage. Azure Monitor stores metrics in a time‑series database, making them suitable for real‑time analysis and trend identification. By correlating metric patterns with incidents, you can determine the underlying cause of performance or availability issues.
Alerts and Anomaly Detection
Azure Monitor’s alerting system supports metric alerts, log alerts, and activity log alerts, each suited for different scenarios. You can set dynamic thresholds for anomaly detection, so the system learns normal behavior and alerts only when metrics deviate significantly. When a metric crosses a defined threshold—such as degraded resource health or high CPU usage—an alert triggers, enabling proactive response. This analytical capability, combined with the ability to export metric data via the REST API and integrate with Dashboards, Workbooks, Grafana, or Power BI, gives you comprehensive insight into resource health and helps you quickly diagnose and resolve issues.
