Optimize App Service Plan Selection and Scaling
Pricing Tiers and Cost Considerations
Azure App Service plans define the compute resources that web apps run on, including the operating system, region, number of VM instances, VM size, and pricing tier. The pricing tier determines which App Service features are available and how you are billed. Selecting the right plan is crucial for balancing performance, features, and cost.
App Service plans fall into three main categories with distinct billing models. The Shared compute tiers (Free and Shared) run apps on shared VM instances with CPU minute quotas, so each app is charged for its CPU usage—these tiers are only for development and testing. The Dedicated compute tiers (Basic, Standard, Premium, PremiumV2, PremiumV3, PremiumV4) use dedicated VM instances where each VM instance is charged regardless of how many apps run on it. The Isolated tier (IsolatedV2) uses an App Service Environment (ASE) where each isolated worker is charged, providing maximum isolation and scale-out capabilities.
Most App Service features such as custom domains, TLS/SSL certificates, and deployment slots are available at no extra cost. Exceptions include App Service domains, App Service certificates, and IP-based TLS connections, which incur hourly charges—though some tiers provide one free connection. Integrating with other Azure services like Traffic Manager may add additional costs.
Scaling Strategies
Scaling in App Service involves two primary actions that work together to handle demand. Scale up (vertical scaling) changes the pricing tier of your App Service plan to gain more CPU, memory, disk space, or additional features like autoscaling or staging environments—you can start with a lower tier and scale up as needed. Scale out (horizontal scaling) increases the number of VM instances running your app; Basic, Standard, and Premium tiers can scale out to 3, 10, and 30 instances respectively, while Isolated tiers can scale to 100 instances.
Automatic scaling is available in Standard and higher tiers, allowing you to define rules based on metrics or schedules to adjust instance counts dynamically. For production workloads, autoscaling helps maintain performance during demand spikes and reduce costs during lulls. Alternatively, manual scaling lets you set a fixed instance count when you prefer direct control over the infrastructure.
Optimizing Plan Selection
When choosing or optimizing an App Service plan, consider your application requirements, cost efficiency, and geographic needs. Higher tiers offer more features, better performance, and greater scale—for example, use Standard or higher for production workloads requiring autoscaling, staging slots, or better hardware. You can host multiple apps in one plan to share costs, but ensure the plan has enough resources to handle the combined load without causing downtime; isolate resource-intensive apps or those needing independent scaling into separate plans. Use the Isolated tier for apps requiring network isolation or compliance with strict security standards, and deploy plans in regions closest to your users for reduced latency.
Advanced Scaling Features
Per-app scaling in Standard and higher tiers allows you to scale individual apps independently within a plan by setting the numberOfWorkers property, enabling high-density hosting and cost savings. Automatic scaling in Premium V2/V3 lets the platform manage scale-out and scale-in decisions based on HTTP traffic, providing always-ready instances to handle demand smoothly without manual rule configuration.
Create an App Service
Azure App Service is a platform-as-a-service (PaaS) offering that allows you to create web and mobile apps for any platform or device. To create an app in Azure App Service, start by selecting Create a resource > Web + Mobile > Web App in the Azure portal. Then choose the subscription under which the app will be created, enter or select a resource group, and provide a unique app name. Next, select your publish method, runtime stack, and operating system, followed by choosing a region or an existing App Service Environment. Finally, select an existing App Service plan or create a new one, specifying the size and pricing tier that meets your needs.
App settings in Azure App Service are environment variables passed to the application code, and they can be configured through the Azure portal, Azure CLI, or Azure PowerShell. App setting names can include letters, numbers, periods, and underscores, though special characters must be escaped as needed by the target operating system. For Linux apps and custom containers, settings are passed using the --env flag. Importantly, app settings are encrypted at rest, providing a layer of security for sensitive configuration data.
Deployment Methods
You can deploy code to Azure App Service using several methods depending on your workflow needs. FTP lets you upload files directly to the app's file system, which works well for simple deployments. Git uses repositories for version control and deployment, enabling tracking of changes and rollback capabilities. Azure DevOps integrates with Azure DevOps for continuous integration and deployment, automating the build and release process for more complex applications.
Scaling an app in Azure App Service involves adjusting the App Service plan to handle increased workloads. The App Service plan serves as the backbone—scaling the plan affects all apps within the same plan, so consider whether your apps have similar scaling needs before grouping them. Additional infrastructure is added automatically during scaling operations, though there may be a delay while the new resources are being provisioned.
Best Practices
To ensure optimal performance and security, follow established best practices. Use Microsoft Entra ID for OAuth 2.0 authentication to integrate with identity management. Implement role-based access control (RBAC) to restrict access based on the principle of least privilege, ensuring users only have permissions they need. Use Azure Key Vault to safeguard cryptographic keys and secrets, avoiding hard-coded credentials that could be exposed.
Implement Secure App Service Networking and Access
Inbound Traffic Controls

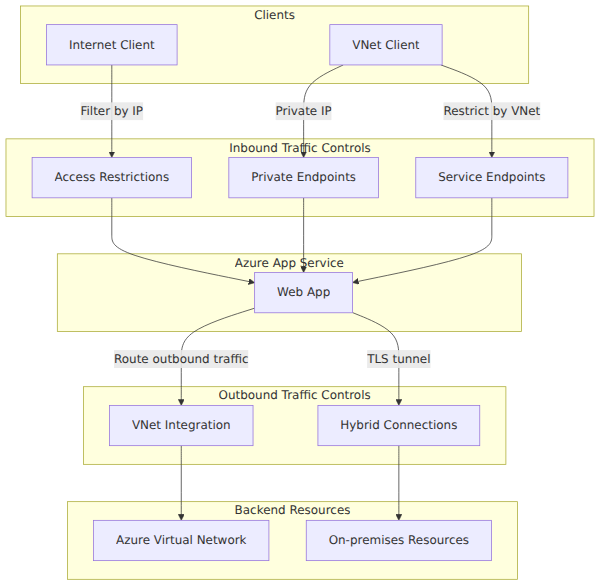

Azure App Service provides networking features to control both inbound and outbound traffic, enhancing security and connectivity. To secure incoming requests, use access restrictions to filter traffic based on IP addresses or virtual networks—this acts as a network-level firewall, blocking unwanted traffic before it reaches your app. For more isolation, deploy private endpoints to expose your app on a private IP within your Azure virtual network, ensuring that only resources inside your virtual network can access the app and eliminating exposure to the public internet. Additionally, service endpoints can restrict access to your app from specific virtual networks, providing another layer of security.
Outbound Traffic and Connectivity
For outbound traffic, virtual network integration allows your app to connect securely to resources within an Azure virtual network, such as databases or internal services. This feature routes outbound traffic through the virtual network, enabling you to apply network security groups and route tables for granular control over what traffic can leave your app. To access on-premises resources or networks not connected to Azure, use hybrid connections, which establish a secure TLS tunnel to a designated host and port without requiring VPN or public endpoints.
Enhanced Security with Additional Features
Combine networking features with SSL/TLS certificates and custom domains to ensure encrypted communications and a professional user experience. Use Azure Key Vault to manage certificates and secrets securely, avoiding hard-coded credentials in your application code. For high-security scenarios, consider an App Service Environment (ASE), which deploys your app into a dedicated virtual network, providing complete network isolation and advanced networking capabilities. Regularly monitor and update your configurations to maintain a strong security posture over time.
