AZ-104 Microsoft Azure Administrator Exam

Implement Network Security Rules for Storage Accounts

Importance of Network Security Rules

Network security rules for Azure Storage Accounts are crucial in ensuring that only authorized traffic can access storage resources. These rules help in controlling access based on IP address ranges, virtual networks, and subnets. By implementing these rules, you can secure sensitive data against unauthorized access and potential data breaches.

Configure Azure Storage Firewalls and Virtual Networks

To protect your Azure Storage Accounts, you need to configure firewall rules and virtual network rules. This involves restricting access so that only applications from allowed networks can interact with the storage accounts. Access must be granted only to traffic from specific Azure virtual networks or predefined internet IP address ranges. Ensuring that these configurations are correctly set up plays a vital role in maintaining the security of stored data.

Preferred Methods for Network Security

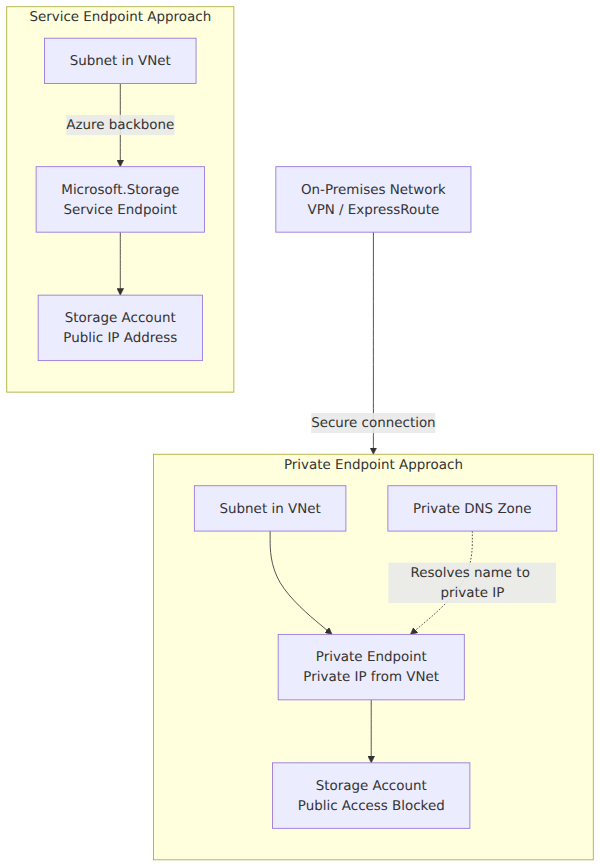

The preferred method for securing storage accounts is using virtual network rules over IP-based filtering methods. This approach prevents public IPs from accessing storage accounts, significantly reducing the risk of unauthorized access. By using virtual network rules, you ensure that only the traffic originating from designated virtual networks is able to reach the storage account, providing an additional layer of security.

Steps to Configure Network Rules

To effectively configure network rules for a storage account, follow these steps:

1. Identify the storage account and the virtual network that needs restricted access.
2. Enable the Microsoft.Storage service endpoint on the subnet within the virtual network.
3. Create the necessary network rule and add it to the storage account's network rule set.

These steps help in creating a controlled access environment where only verified users and resources can interact with your storage accounts.

Example Configuration

Here is an example of how you might configure network rules using PowerShell:

$storageAccountResourceGroupName = "<storage-account-resource-group>"
$storageAccountName = "<storage-account-name>"
$restrictToVirtualNetworkResourceGroupName = "<vnet-resource-group-name>"
$restrictToVirtualNetworkName = "<vnet-name>"
$subnetName = "<subnet-name>"

$storageAccount = Get-AzStorageAccount -ResourceGroupName $storageAccountResourceGroupName -Name $storageAccountName -ErrorAction Stop
$virtualNetwork = Get-AzVirtualNetwork -ResourceGroupName $restrictToVirtualNetworkResourceGroupName -Name $restrictToVirtualNetworkName -ErrorAction Stop
$subnet = $virtualNetwork | Select-Object -ExpandProperty Subnets | Where-Object { $_.Name -eq $subnetName }

$serviceEndpoints = $subnet | Select-Object -ExpandProperty ServiceEndpoints | Select-Object -ExpandProperty Service
if ($serviceEndpoints -notcontains "Microsoft.Storage") {
    $serviceEndpoints += "Microsoft.Storage"
    $virtualNetwork = $virtualNetwork | Set-AzVirtualNetworkSubnetConfig -Name $subnetName -AddressPrefix $subnet.AddressPrefix -ServiceEndpoint $serviceEndpoints -WarningAction SilentlyContinue -ErrorAction Stop | Set-AzVirtualNetwork -ErrorAction Stop
}

$networkRule = $storageAccount | Add-AzStorageAccountNetworkRule -VirtualNetworkResourceId $subnet.Id -ErrorAction Stop
$storageAccount | Update-AzStorageAccountNetworkRuleSet -DefaultAction Deny -Bypass AzureServices -VirtualNetworkRule $networkRule -WarningAction SilentlyContinue -ErrorAction Stop | Out-Null

This script outlines how to set up a virtual network rule to ensure your storage account is secured effectively.

Conclusion

In conclusion, implementing network security rules for Azure Storage Accounts is vital for protecting data and complying with organizational security policies. By configuring both firewall rules and virtual network rules, you can impose strict access controls on your storage accounts. Doing so ensures only authorized traffic can access these valuable resources, significantly enhancing your organization's overall security posture.
