Traffic Management and Rate Limiting

Traffic management refers to the strategies used to control how data flows between users and backend services. In Google Cloud, tools like Apigee and Cloud Armor help keep applications stable during high-traffic periods by preventing resource exhaustion and maintaining performance across the entire infrastructure.

Cloud Armor protects applications by applying security policies that filter traffic at the edge of the network. It uses Layer 7 filtering to examine incoming requests for common web attacks before they reach the backend servers. This service also defends against volumetric DDoS attacks, which helps legitimate users access services even during an attack.

Apigee includes a policy called SpikeArrest that guards against sudden traffic surges caused by buggy clients or malicious attacks. When requests exceed the set limit, the system returns an HTTP 429 error, telling the client they have sent too many requests. Rate limiting controls how many requests a user can make in a short time, while quotas set long-term limits on API usage to ensure fair access for all consumers.

Global external Application Load Balancers support traffic steering and traffic splitting. Traffic steering routes requests based on HTTP parameters like headers or URL paths, while traffic splitting sends a small percentage of traffic to a new service version for testing before a full rollout.

Graceful degradation allows a system to continue functioning under high load by intentionally reducing performance. Developers achieve this by implementing throttling to slow requests or dropping excess requests at the frontend layer, ensuring critical application parts stay online even when resources are stretched thin.

API Security and Authentication Mechanisms

Apigee and Cloud API Gateway act as a facade or proxy layer between backend services and the clients that consume them. These platforms centralize security and operational controls without requiring changes to the original backend code, making it easier to manage how APIs are exposed to the world.

Several authentication mechanisms verify the identity of anyone accessing an API. API keys provide a simple way to identify a calling application, while OAuth 2.0 offers more secure, token-based access for users and services. JSON Web Tokens (JWT) securely transmit information between parties, allowing the gateway to validate that the data has not been tampered with.

Rate limiting and quotas protect cloud resources by preventing backend services from being overwhelmed by too many requests. These policies ensure no single user consumes an unfair amount of resources, maintaining application stability and performance. Integrating Cloud Armor adds a Web Application Firewall layer to block malicious traffic and common web attacks.

API products bundle different API operations into a single package that developers can easily consume. This mechanism enforces fine-grained access management by restricting which HTTP methods or resource paths a specific application can use. API products provide controlled access, simplify consumption for app developers, and protect sensitive data by making it available only to authorized users.

Observability through tools like Apigee Analytics provides visibility into how APIs are performing in real time. This operational insight helps teams identify technical bottlenecks and ensure applications remain reliable for all users.

Observability and Performance Analytics

Apigee serves as an API management platform that acts as a proxy layer between backend services and clients. This setup allows developers to implement centralized control for security, rate limiting, and operational visibility without modifying the underlying backend code.

API Monitoring provides real-time insights into API performance, helping developers quickly diagnose and fix issues. The tool uses distribution buckets to group latency values, allowing the system to scale while still tracking speed. Real-time observability is critical for maintaining high availability and isolating problem areas before consumers are affected.

Apigee API Analytics handles historical trend analysis and detailed reporting on how APIs are used over time. It collects metadata such as URLs, IP addresses, and user IDs to help businesses understand long-term usage patterns. This data is typically stored in BigQuery, where it can be used to create custom reports for business or operational insights, including segmenting audiences by top developers and applications.

Integrating Cloud Load Balancing and Cloud CDN with API gateways reduces latency for global users by caching responses at the edge. This ensures frequent requests are handled faster and increases availability during peak traffic seasons, providing a consistent and reliable interface for both internal and external consumers.

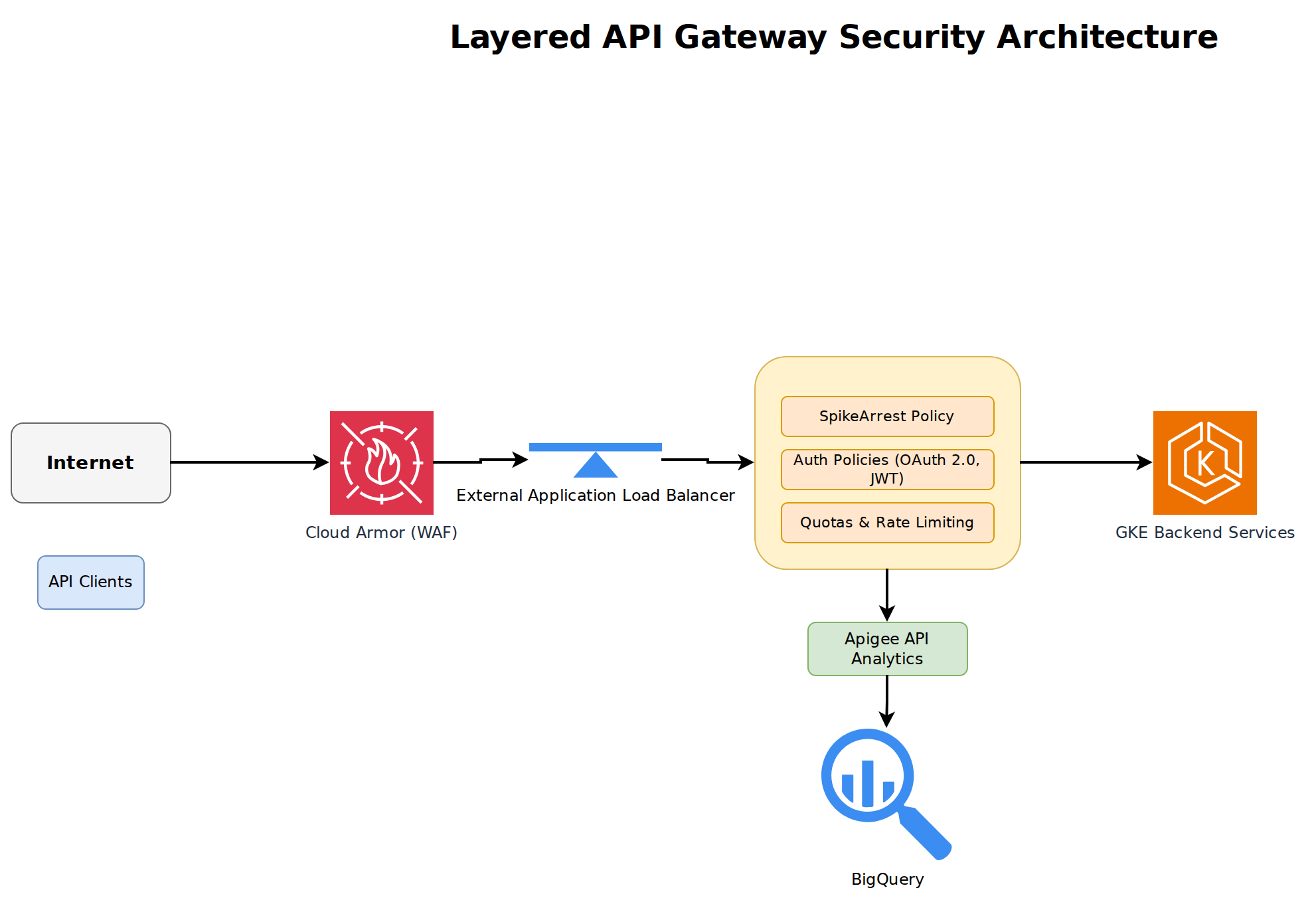

Integrating Cloud Armor as a Web Application Firewall adds an extra layer of security by protecting APIs from malicious attacks. This service works with Apigee to filter traffic and enforce security policies before requests reach the backend, establishing a strong security perimeter that maintains the reliability and performance of cloud-native applications.
