VPC Firewall Rules and Hierarchical Policies
Controlling Network Traffic
VPC firewall rules act as virtual barriers that control the flow of data into and out of your cloud network. These rules regulate traffic based on specific criteria like IP addresses, protocols, and ports. By setting these rules, administrators can ensure that only authorized connections are allowed to reach sensitive resources like databases.
To achieve granular network isolation, Google Cloud allows you to apply rules using target tags and service accounts. While target tags are simple labels used to identify groups of instances, service accounts provide a more secure, identity-based way to define which virtual machines can talk to each other. This approach minimizes the attack surface by ensuring that security policies follow the identity of the resource rather than just its location.
Centralized Security with Hierarchical Policies
Hierarchical firewall policies allow organizations to create and enforce consistent security rules across multiple projects. These policies are defined at the organization or folder level, ensuring that high-priority security requirements are met everywhere. This centralized management prevents individual project owners from accidentally creating rules that might violate company-wide security standards.
Complex Topologies and Private Service Connect
In complex network topologies involving Private Service Connect, specific firewall rules are required to manage traffic between different subnets. For example, a rule might be needed to allow a NAT subnet to communicate with a service attachment to facilitate secure data migration. These configurations often include:
- Ingress rules to allow incoming requests from trusted sources.
- Egress rules to restrict where internal data can be sent.
- Priority levels to determine which rule takes precedence when multiple rules overlap.
Monitoring and Auditing Access
Effective security also involves monitoring and logging traffic through tools like firewall rules logging and proxy servers. A SOCKS server or a bastion host can be used to control and audit access to private database instances that are not exposed to the public internet. By combining these tools with strict firewall policies, architects can build a robust defense against unauthorized access and potential network intrusions.
Cloud Armor and Intrusion Detection Systems
Edge Protection and DDoS Mitigation
Google Cloud Armor is a robust security service that protects applications from distributed denial-of-service (DDoS) attacks at the network edge. It provides always-on protection against volumetric attacks, ensuring that only well-formed requests reach your backend services. By filtering traffic before it enters your Virtual Private Cloud (VPC), Cloud Armor prevents malicious actors from consuming valuable cloud resources.
Web Application Firewall Capabilities
A key feature of Cloud Armor is its Web Application Firewall (WAF) capabilities, which use security policies to filter web traffic. These policies include preconfigured rules that mitigate common risks, such as:
- SQL injection (SQLi): Malicious attempts to interfere with a web application's database.
- Cross-Site Scripting (XSS): Attempts to inject harmful scripts into web content.
Administrators can also create custom rules using a flexible match language to allow or deny traffic based on IP addresses, geography, or specific request headers.
Machine Learning and Adaptive Protection
Adaptive Protection enhances Cloud Armor by using machine learning models to detect anomalous traffic patterns and potential application-level attacks. This feature analyzes your baseline traffic and generates an attack signature to describe suspected malicious activity. Once a threat is identified, the system suggests custom WAF rules to block the attack while allowing legitimate traffic to pass through.
Deep Packet Inspection with Cloud IDS
For deeper security, Cloud IDS (Intrusion Detection System) provides deep packet inspection to identify and alert on malicious activity within your network. Unlike standard firewalls, Cloud IDS looks inside the data packets to find threats such as:
- Malware Command & Control: Communication from a compromised workload to an attacker's server.
- Data Exfiltration: The unauthorized transfer of data out of your cloud environment.
It acts as a critical monitoring layer that detects sophisticated attacks that might bypass initial perimeter defenses.
Advanced Threat Intelligence and Logging
Organizations can further secure their infrastructure using Cloud Armor Enterprise, which offers advanced protections for Network Load Balancers and virtual machines. This tier includes Google Threat Intelligence, a service that blocks traffic from known malicious IP addresses based on global threat data. All security events and blocked requests are recorded in Cloud Logging, providing visibility for troubleshooting and security audits.

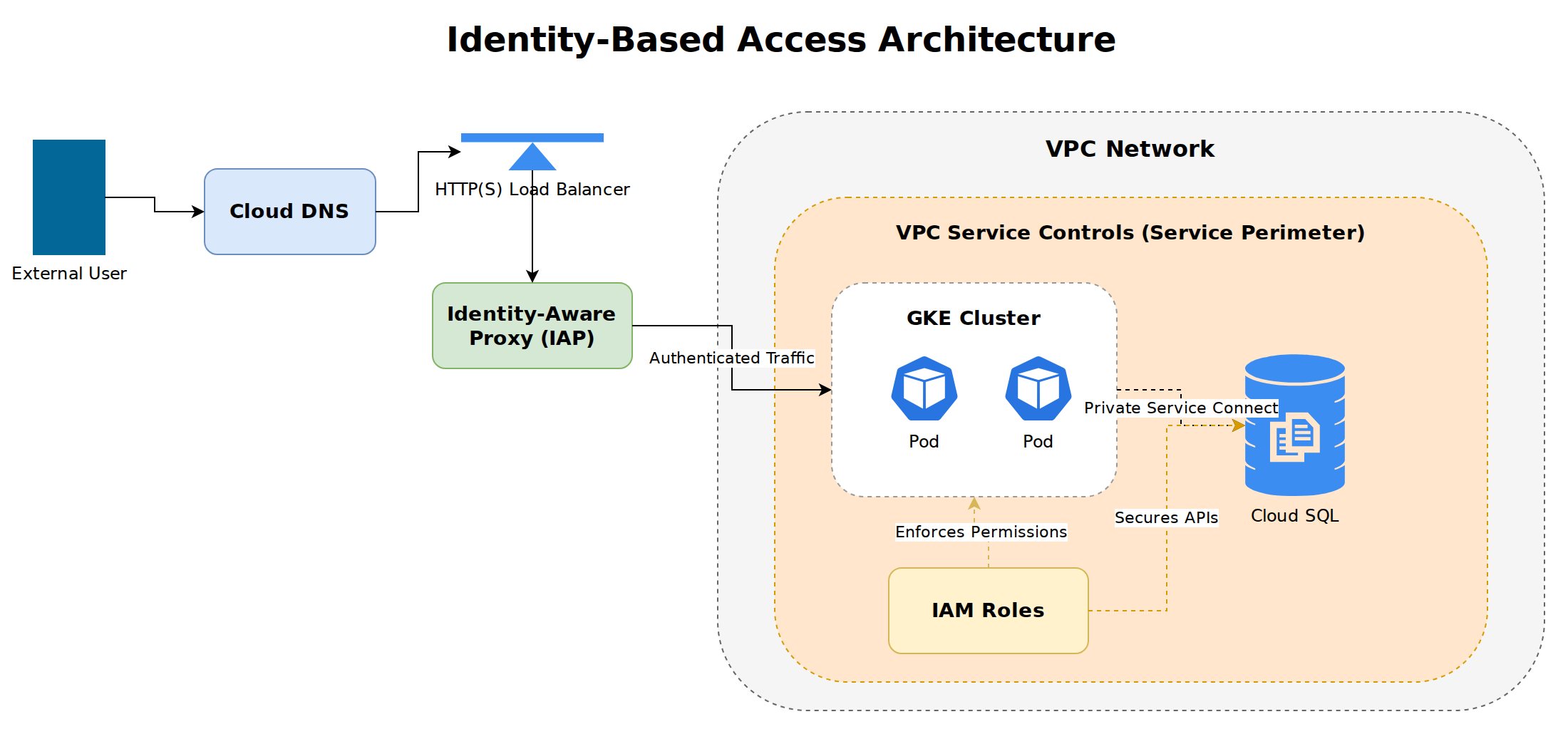

Identity-Based Access and Private Connectivity
Context-Aware Access with IAP
Identity-Aware Proxy (IAP) is a Google Cloud service that provides identity-based access to applications and resources. Instead of relying on traditional network perimeters like VPNs, IAP uses the user's identity and context to decide if they should be allowed in. This model allows organizations to securely access internal resources without needing a public IP address.
