Establishment of Recovery Objectives and Architectural Alignment
Recovery Time Objective (RTO) and Recovery Point Objective (RPO) are the two most important metrics for business continuity. The RTO is the maximum amount of time a system can be down, while the RPO is the maximum amount of data loss the business can accept. As these numbers get smaller (closer to zero downtime and zero data loss), the architecture becomes more complex and expensive. Architects must balance these objectives with the business's needs and budget.
It is important to distinguish between High Availability (HA) and Disaster Recovery (DR). High Availability is about handling small, common failures like a single server crash, often automatically. Disaster Recovery is a broader plan for major events, like an entire Google Cloud region becoming unavailable. HA is the first line of defense in a reliable system.
Google Cloud offers different storage patterns to meet these goals. Zonal storage keeps data in one area, regional storage protects against a single zone failure, and multi-regional storage spreads data across different geographic regions for the highest protection. Using multi-regional services like BigQuery or Cloud Storage is often a cost-effective way to protect data from a regional disaster.
To protect data from accidental deletion or corruption, architects use Backups and Point-in-Time Recovery (PITR). Backups are full copies of data kept for a long time. PITR allows restoring a database to a specific moment in the recent past, which is crucial for fixing human errors. Using both provides a strong safety net.
Data replication is key for meeting RPO. Synchronous replication writes data to multiple locations at the same time, which can achieve an RPO of zero but may slow the application down. Asynchronous replication is faster and reduces latency, but there is a risk of some data loss if a disaster happens before the data is copied. Choosing the right method depends on the business's tolerance for latency versus its tolerance for data loss.
Data Protection and Restoration Procedures
To survive the loss of an entire region, data should be stored in multi-regional services like Cloud Storage, Firestore, or Spanner. These services automatically copy data across different geographic areas. For resources that are tied to a single zone, like virtual machine disks, you should regularly create snapshots and store those copies in a multi-regional bucket. This ensures data can be restored in a different region if needed.
Database Recovery Techniques
Point-in-time recovery (PITR) is a vital restoration tool for managed databases like Firestore and Spanner. It lets you restore data to a specific minute from up to seven days in the past, which is perfect for fixing accidental deletions or data corruption. For longer-term protection, scheduled backups retain data for much longer periods, such as 14 weeks. Using both PITR and scheduled backups provides layers of defense.
Data Warehouse Resilience
For data warehouses like BigQuery, protection involves using time travel to access data from the last seven days and a fail-safe period for emergency recovery through Google support. For the best long-term resilience, you should also export tables to Cloud Storage in a different region. This creates a physically separate copy of your data, safe from a disaster affecting your primary data warehouse region.
Advanced Storage Protection
Cloud Storage has advanced features to protect data integrity. Soft delete allows recovery of deleted objects for a set time after removal. Bucket locks enforce retention policies, preventing data from being deleted or changed too soon. Turbo replication syncs data between regions faster, achieving a Recovery Point Objective as low as 15 minutes. These tools let administrators customize protection levels based on business needs.
Automation and Migration
Automating backups is essential for business continuity. The Storage Transfer Service can move large datasets from on-premises or other clouds into Cloud Storage. For smaller, ongoing syncs, the gcloud storage rsync command performs incremental copies, only transferring files that have changed. Regularly testing the restoration of data from these backups ensures the recovery process will work when a real disaster occurs.
Implementation of Disaster Recovery Patterns and Failover Mechanisms

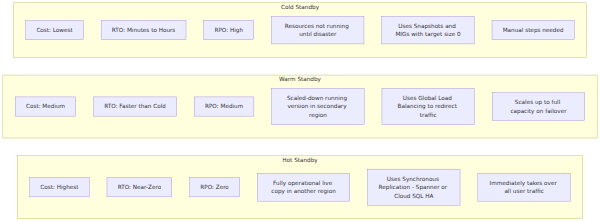

Disaster Recovery (DR) patterns are chosen based on a business's Recovery Time Objective (RTO) and Recovery Point Objective (RPO). These patterns balance cost against how quickly a service must be restored. Selecting the right pattern is key to organizational resilience.
