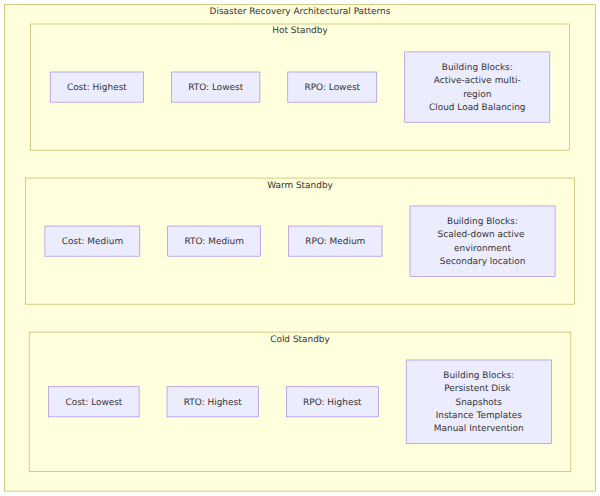

The Cold Standby pattern is a cost-effective strategy where recovery resources are only started or created after a disaster occurs. This pattern typically uses Persistent Disk Snapshots and Instance Templates to recreate virtual machines in a different zone or region when needed. While this approach minimizes ongoing infrastructure costs, it usually results in a higher RTO because the environment must be built from scratch before it can serve traffic. Key features of cold standby include snapshots to store data from a specific point in time, Instance Templates to define the configuration for new virtual machines, and manual intervention which often requires human or scripted actions to begin recovery.
Warm Standby Pattern
A Warm Standby pattern maintains a scaled-down version of the production environment that is always running in a secondary location. This setup allows for a significantly faster recovery time than cold standby because the core infrastructure and database are already active. Architects use this pattern to find a middle ground between high speed and the costs of running redundant cloud resources.
Hot Standby Pattern
The Hot Standby pattern provides the highest level of availability by running a fully functional mirror of the production environment at all times. This often involves an active-active configuration across multiple regions, where Cloud Load Balancing instantly redirects traffic if one site fails. While this is the most expensive pattern, it offers the lowest RTO and RPO for mission-critical applications that cannot afford any downtime.
GCP Building Blocks for Recovery
Several GCP Building Blocks are used to implement these patterns effectively across different failure domains. Managed Instance Groups (MIGs) provide auto-healing and automatic recreation of failed instances, while Regional Persistent Disks ensure data is synchronously replicated across two zones. These tools allow architects to design systems that automatically respond to zonal or regional incidents without manual effort. Essential services for recovery include Cloud Load Balancing, which automatically redirects user traffic to healthy regions; multi-region storage, which protects data by storing it across multiple geographic areas; and the Backup and DR Service, which provides a centralized platform to manage and test recovery plans. Effective backup and recovery requires choosing the right storage class and replication method based on the organization's specific geographical needs, and architects should perform regular testing and simulations to verify that their recovery procedures work correctly under pressure.
Data Persistence and Snapshot Management
Persistent Disks and Snapshots
Persistent Disks are durable storage devices that remain available even if you delete your virtual machines. Snapshots are incremental backups that capture the state of these disks at a specific point in time to protect against data loss. Using automated snapshot schedules helps ensure that data is backed up regularly without the need for manual intervention. This approach is vital for meeting a Recovery Point Objective (RPO) , which defines the maximum amount of data loss a business can tolerate.
Disk Types and Replication
Google Cloud offers different disk types to protect against hardware failures or zone outages. Regional Persistent Disks are a key feature because they synchronously replicate data across two different zones in a region. Snapshots are stored redundantly across multiple regions by default, providing protection against major regional disasters. Common disk options include Zonal Persistent Disks for high performance within a single zone, Regional Persistent Disks for high availability by mirroring data across zones, and Disk Snapshots for incremental backups used for point-in-time recovery and cross-region portability.
Cloud Storage Classes and Lifecycle
Cloud Storage serves as a reliable and scalable destination for storing backup files and disk snapshots. Different storage classes allow you to balance the cost of storage with how quickly you need to access the data during a recovery event. Lifecycle management policies can automatically move older backups to cheaper storage levels or delete them after a set time to save money. The main storage classes include Standard for data that requires frequent access, Nearline and Coldline for backups accessed less than once a month, and Archive as the lowest-cost option for data that must be kept for years.
Managed services like Cloud SQL and BigQuery have built-in tools for advanced data protection and recovery. Point-in-time recovery (PITR) allows these databases to be restored to an exact moment, which helps fix data corruption caused by human mistakes. For massive datasets, Bigtable supports managed backups and replication across different clusters to ensure data stays safe and available. Using these built-in features helps achieve a low Recovery Time Objective (RTO) , which is the time needed to get a system running again.
Automation and Testing
Automation is the foundation of a modern disaster recovery plan for cloud infrastructure. Tools like the Backup and DR Service provide a centralized way to manage and monitor backups for many different types of workloads. Regularly testing your recovery process is the only way to ensure that your snapshots and backups will work during a real emergency. A strong strategy uses automated schedules and cross-region replication to keep a business running through any infrastructure outage.
